Intake Manifold Removal and Installation: Installation

NOTE:  Refer to the Exploded View if needed during this procedure.

1. Intake Manifold - Install

   1. Install the insulator (A) 2. Loosely install the intake manifold (B) with new gaskets (C) 3. Tighten the bolts/nuts in a cross pattern in three steps; tighten the bolts/nuts until the bolts/nuts sit on the intake manifold, tighten the bolts/nuts until the gasket is compressed and both parts are contacted, tighten the bolts to specified torque.

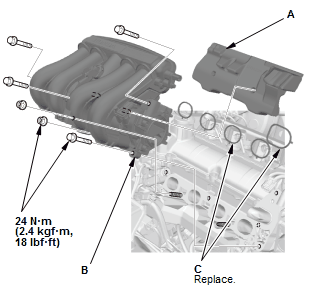

   Fig 1: Intake Manifold With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.
2. Intake Manifold External Item - Install

   Courtesy of HONDA, U.S.A., INC.

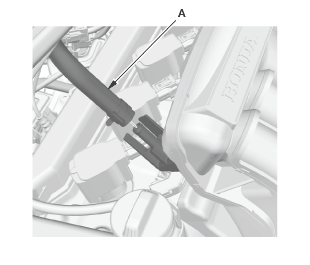

   1. Connect the brake booster vacuum hose (A).

   2. Install the intake manifold bracket (A) 3. Connect the connectors (B) 4. Connect the EVAP canister purge valve hose (C) and the PCV hose (D) 5. Install the harness clamps (E).

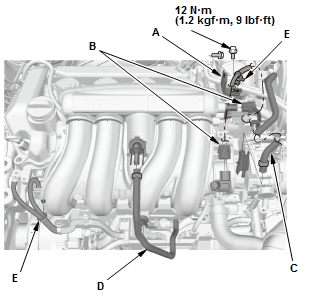

   Fig 2: Intake Manifold Bracket With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.
3. Throttle Body - Install

   1. Install the throttle body (A) with a new gasket (B) 2. Tighten the bolts (C) in a cross pattern in three steps; tighten the bolts until the bolts sit on the throttle body, tighten the bolts until the gasket is compressed and both parts are contacted, tighten the bolts to specified torque.

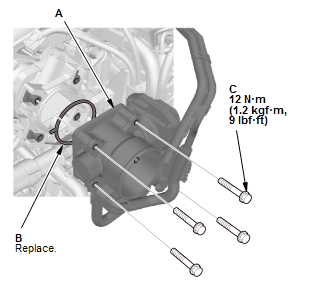

   Fig 3: Throttle Body With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.
4. Air Cleaner - Install
