Gyro Sensor

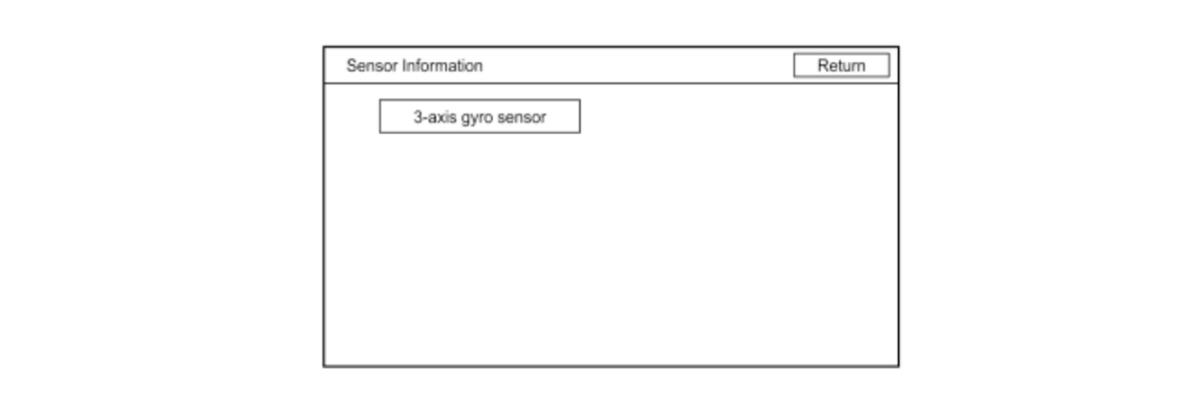

This diagnosis checks the gyro sensor in the audio-navigation unit. This devices detect how the vehicle moves, and repositions the vehicle position icon on the map screen. Select the 3-axis gyro Sensor.

Courtesy of HONDA, U.S.A., INC.

• X/Y/Z AXIS ANGLE: Indicates the angular speed of the gyro sensor.
• Temperature: Indicates the temperature of the gyro sensor.

Courtesy of HONDA, U.S.A., INC.
