DTC P154A

DTC P154A  : Battery Sensor Internal Failure

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode, and wait for 10 seconds.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P154A Battery Sensor Internal Failure

   DTC (PGM-FI)

   Is DTC P154A indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the 12 volt battery sensor and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. Determine possible failure area (12 volt battery sensor, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

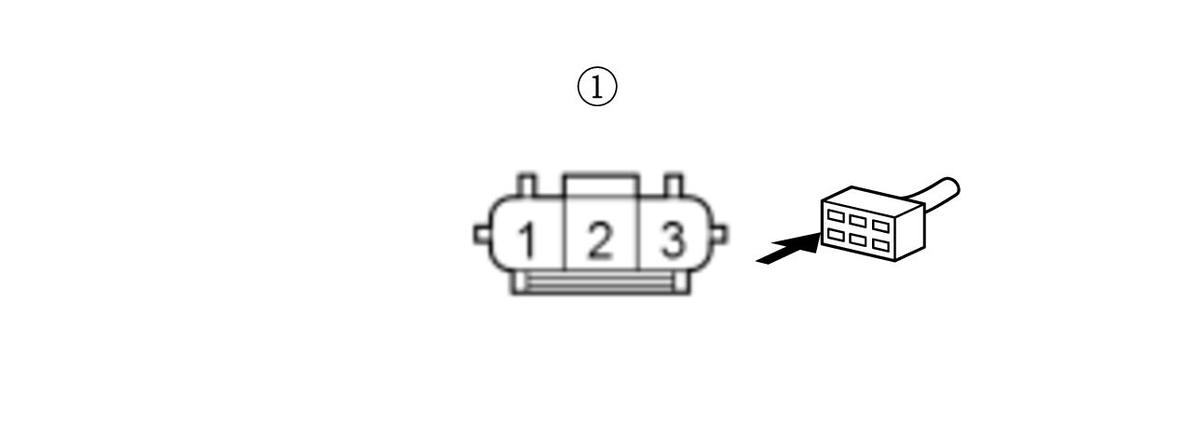

   12 volt battery sensor 3P connector

   -3. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	12 volt battery sensor 3P connector: disconnected
   Test point 1	12 volt battery sensor 3P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Replace the 12 volt battery sensor .

   NO

   Go to step 3

3. Fuse check

   -1. Check the No. B23 fuse .

   Is the fuse OK?

   YES

   Repair an open in the +B HORN wire between the 12 volt battery sensor and the No. B23 fuse.

   NO

   Repair a short in the +B HORN wire between the 12 volt battery sensor and the No. B23 fuse. Also replace the No. B23 fuse.
