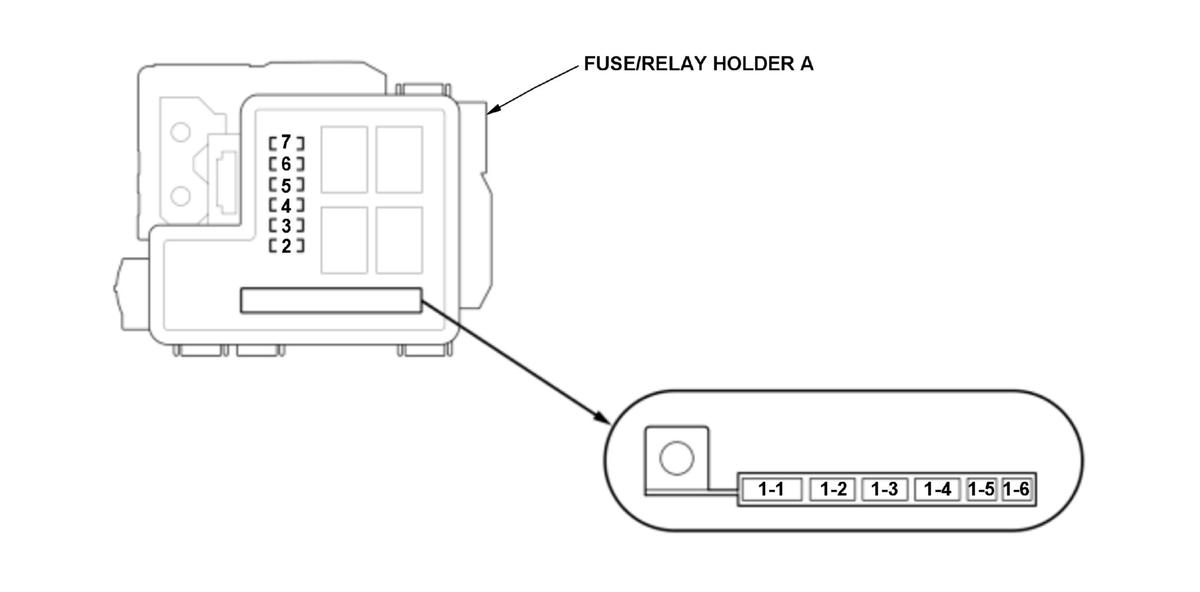

Fuse/Relay Holder A
Fuse/Relay Holder A Legend
| Fuse Number | Amps | Component (s) or Circuit (s) Protected | Feature |
|---|---|---|---|
| D1-1 | 40 A | PTC heater A relay, PTC heater A (via the PTC heater A relay) | |
| D1-2 | 40 A | PTC heater B relay, PTC heater B (via the PTC heater B relay) | |
| D1-3 | --- | Not used | |
| D1-4 | --- | Not used | |
| D1-5 | --- | Not used | |
| D1-6 | --- | Not used | |
| D2 | 7.5 A | 12 Volt battery sensor | |
| D3 | --- | Not used | |
| D4 | --- | Not used | |
| D5 *1 | 7.5 A | Audio-navigation unit *2, Audio unit *3 | *1: With display audio type*2: With navigation*3: Without navigation |
| D6 | --- | Not used | |
| D7 * | 15 A | Left rear seat heater relay (LOW), Right rear seat heater relay (LOW), Left rear seat heater relay (HIGH), Right rear seat heater relay (HIGH), Left rear seat cushion heater (via the left rear seat heater relay (LOW)), Left rear seat cushion heater (via the left rear seat heater relay (HIGH)), Right rear seat cushion heater (via the right rear seat heater relay (LOW) and left rear seat cushion heater), Right rear seat cushion heater (via the right rear seat heater relay (HIGH) and left rear seat cushion heater) | *: With rear seat heater |
