Engine Mount Control Unit Connector for Inputs and Outputs

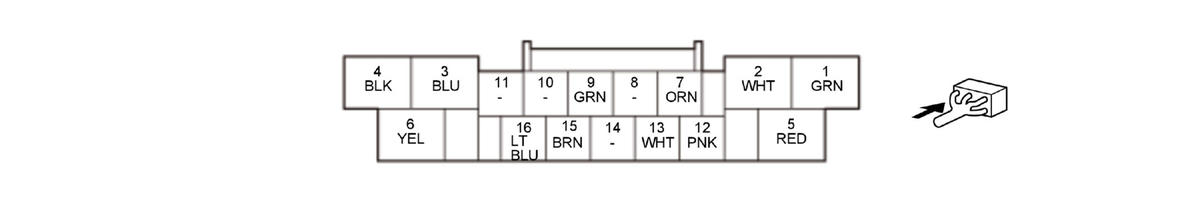

Engine Mount Control Unit 16P Connector (female terminals)
| Cavity | Terminal Name | Connects to |
|---|---|---|
| 1 | RR ACM SOL- | Rear engine mount actuator |
| 2 | RR ACM SOL+ | Rear engine mount actuator |
| 3 | FR ACM SOL+ | Front engine mount actuator |
| 4 | PGND | Body ground to G251 |
| 5 | FR ACM SOL- | Front engine mount actuator |
| 6 | ACM RLY OUT | Active control engine mount (ACM) control relay |
| 7 | TCD OUT | PCM (TCD OUT) |
| 8 | Not used | |
| 9 *1 | IG1 ACG | IG1A relay |
| 9 *2 | IG1 ACG (DC/DC) | DC-DC converter IG1 relay 2 |
| 10 | Not used | |
| 11 | Not used | |
| 12 | CRK OUT | PCM (CRK OUT) |
| 13 | F-CAN A_H | PCM (F-CAN A_H) |
| 14 | Not used | |
| 15 | F-CAN A_L | PCM (F-CAN A_L) |
| 16 | ACM SOL RLY | Active control engine mount (ACM) control relay |
*1: Without auto idle stop system
*2: With auto idle stop system
