Tailgate Outer Handle/Lock Switch Test: Test

Tailgate Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Pillar Areas or Interior Trim Removal and Installation - Cargo Areas or Interior Trim Removal and Installation - Tailgate Areas or Interior Trim Removal and Installation - Door Areas or Interior Trim Removal and Installation - Rear Side Area

Tailgate Outer Handle/Lock Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

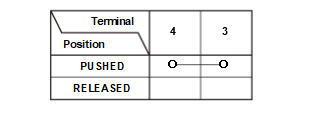

Outer Handle Switch

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

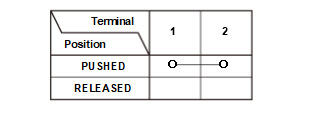

Lock Switch (With keyless access function)

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

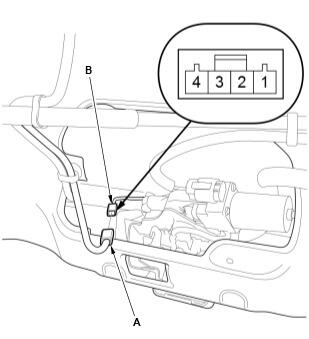

1. Disconnect the connector (A).

2. Check for continuity between the terminals in each switch position according to the table.

(B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
