DTC Advanced Diagnostics: P0327
DTC P0327: Knock Sensor 1 (Bank 1) Circuit Low Voltage
General Description

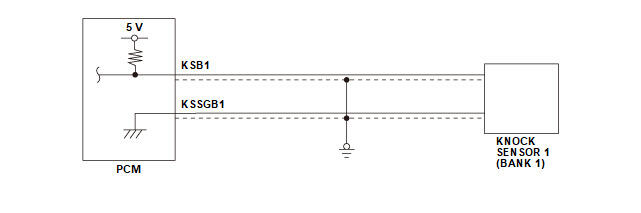

Knock sensor 1 (bank 1) is mounted on the engine block and detects engine knocking. The vibrations caused by the knocking are converted into electrical signals through the piezo ceramic element. The powertrain control module (PCM) controls the ignition timing based on the electrical signal. If the signal from the knock sensor 1 (bank 1) is a specified voltage for a set time, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | 2 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | |
|---|---|
| Vehicle | ON mode |
Malfunction Threshold
The knock sensor 1 (bank 1) output voltage is 0.5 V or less for at least 2 seconds.
Possible Cause
- Knock sensor 1 (bank 1) failure
- Knock sensor 1 (bank 1) KSB1 line short to ground
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
