Millimeter Wave Radar Aiming: Notes

Special Tool Required

SPECIAL TOOL DESCRIPTION

Image Description/Tool Number

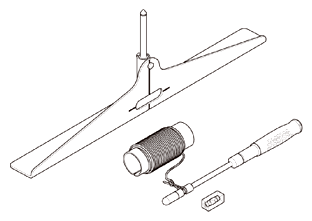

G12436975Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Alignment Set 07AAJ-STKA210
G12436976Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Stand Set 07AAJ-STKA220(1)
G12436977Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Reflector Set 07AAJ-STKA200(1)
G12436978Courtesy of AMERICAN HONDA MOTOR CO., INC.
 Stand 07AAJ-TK8A100(1)
(1) (07AAJ-STKA220/07AAJ-TK8A100/07AAJ-STKA200): Stand 07AAJ-TK8A100 with Reflector Set 07AAJ-STKA200 or Stand Set 07AAJ-STKA220 can be used for aiming.
