Keyless/Power Door Locks/Security System Component Location Index

For relationships between signals in a system, refer to System Diagram .

Without Remote Engine Start

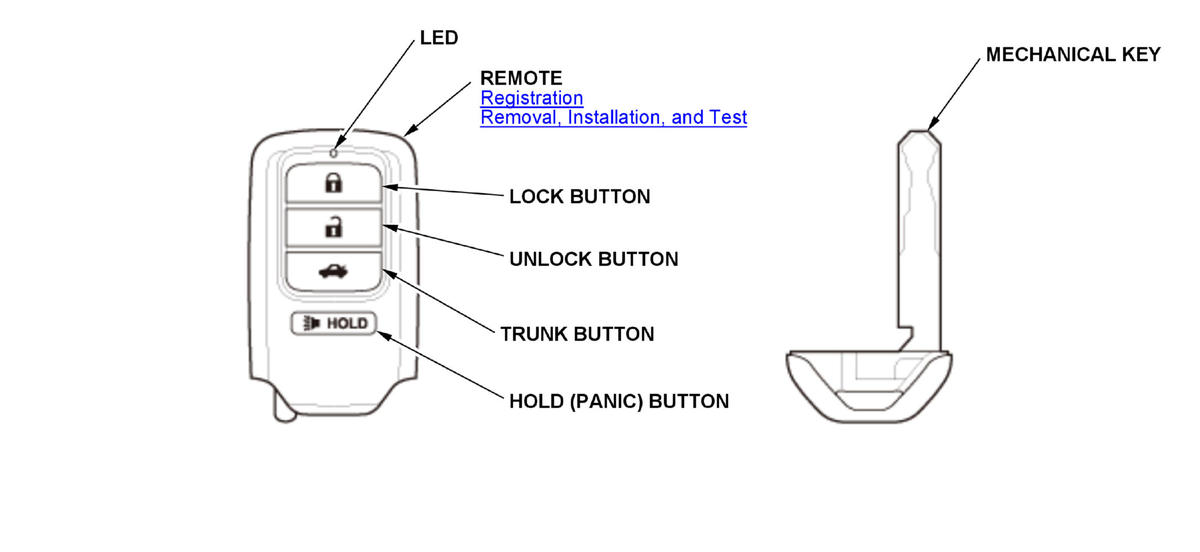

Fig 1: Keyless/Power Door Locks/Security System Component Location (Without Remote Engine Start)

Courtesy of HONDA, U.S.A., INC.

With Remote Engine Start

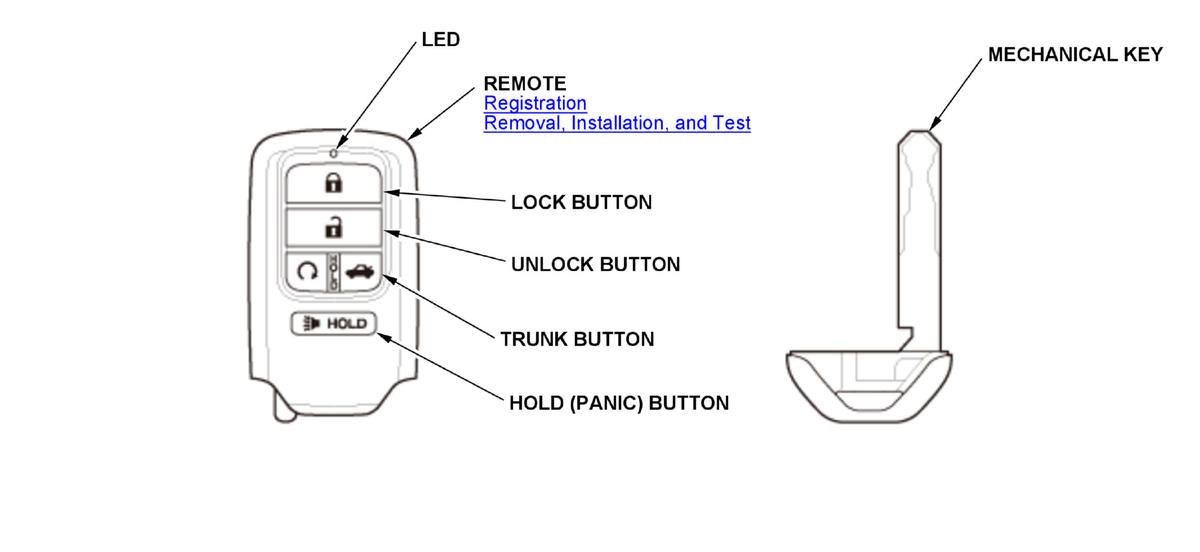

Fig 2: Keyless/Power Door Locks/Security System Component Location (With Remote Engine Start 1 of 7))

Courtesy of HONDA, U.S.A., INC.

Fig 3: Keyless/Power Door Locks/Security System Component Location (With Remote Engine Start 2 of 7))

Courtesy of HONDA, U.S.A., INC.

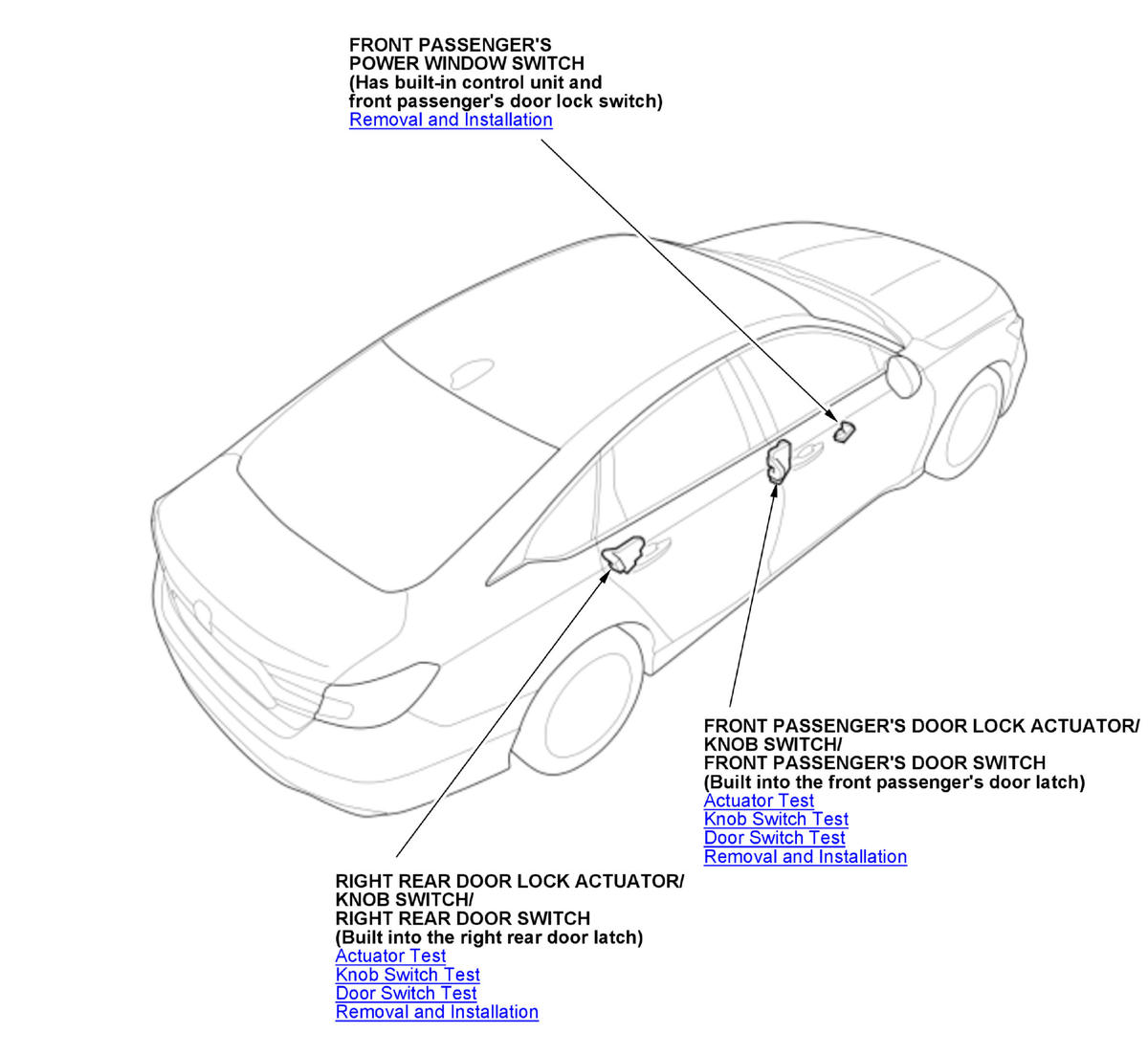

Fig 4: Keyless/Power Door Locks/Security System Component Location (With Remote Engine Start 3 of 7))

Courtesy of HONDA, U.S.A., INC.

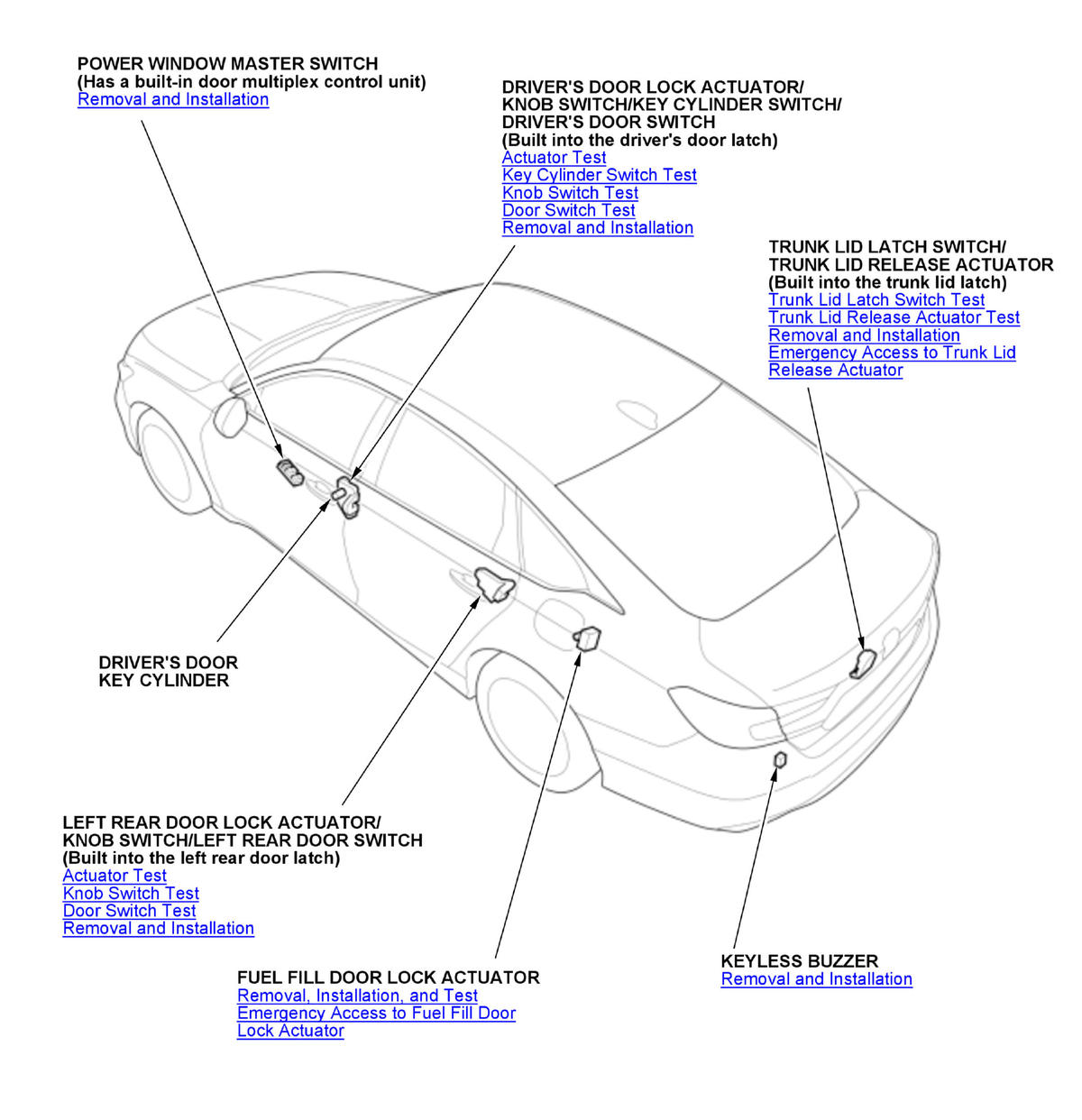

Fig 5: Keyless/Power Door Locks/Security System Component Location (With Remote Engine Start 4 of 7))

Courtesy of HONDA, U.S.A., INC.

Fig 6: Keyless/Power Door Locks/Security System Component Location (With Remote Engine Start 5 of 7))

Courtesy of HONDA, U.S.A., INC.

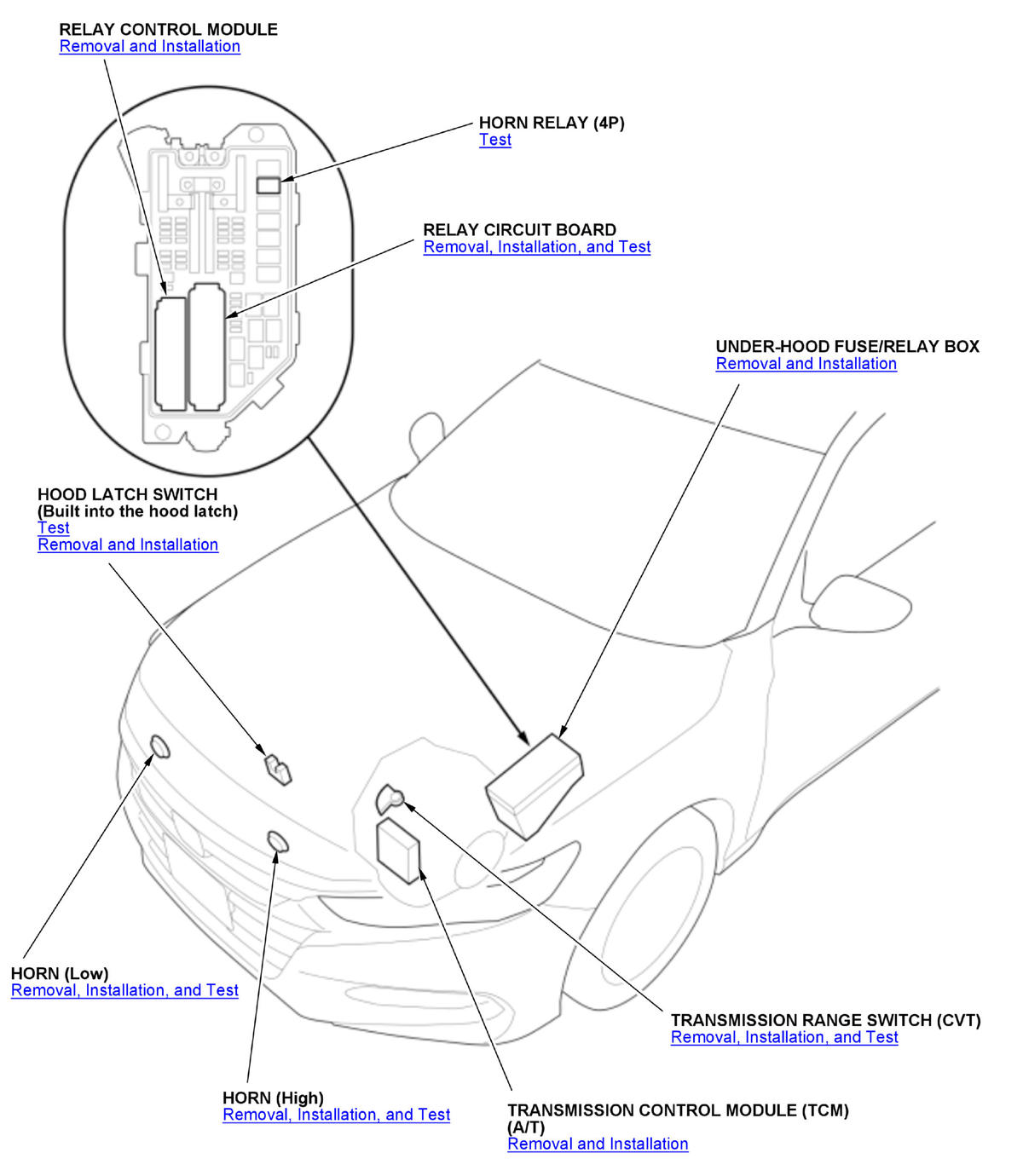

Fig 7: Keyless/Power Door Locks/Security System Component Location (With Remote Engine Start 6 of 7))

Courtesy of HONDA, U.S.A., INC.

Fig 8: Keyless/Power Door Locks/Security System Component Location (With Remote Engine Start 7 of 7))

Courtesy of HONDA, U.S.A., INC.
