Front Door

Front Door Lock Actuator - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

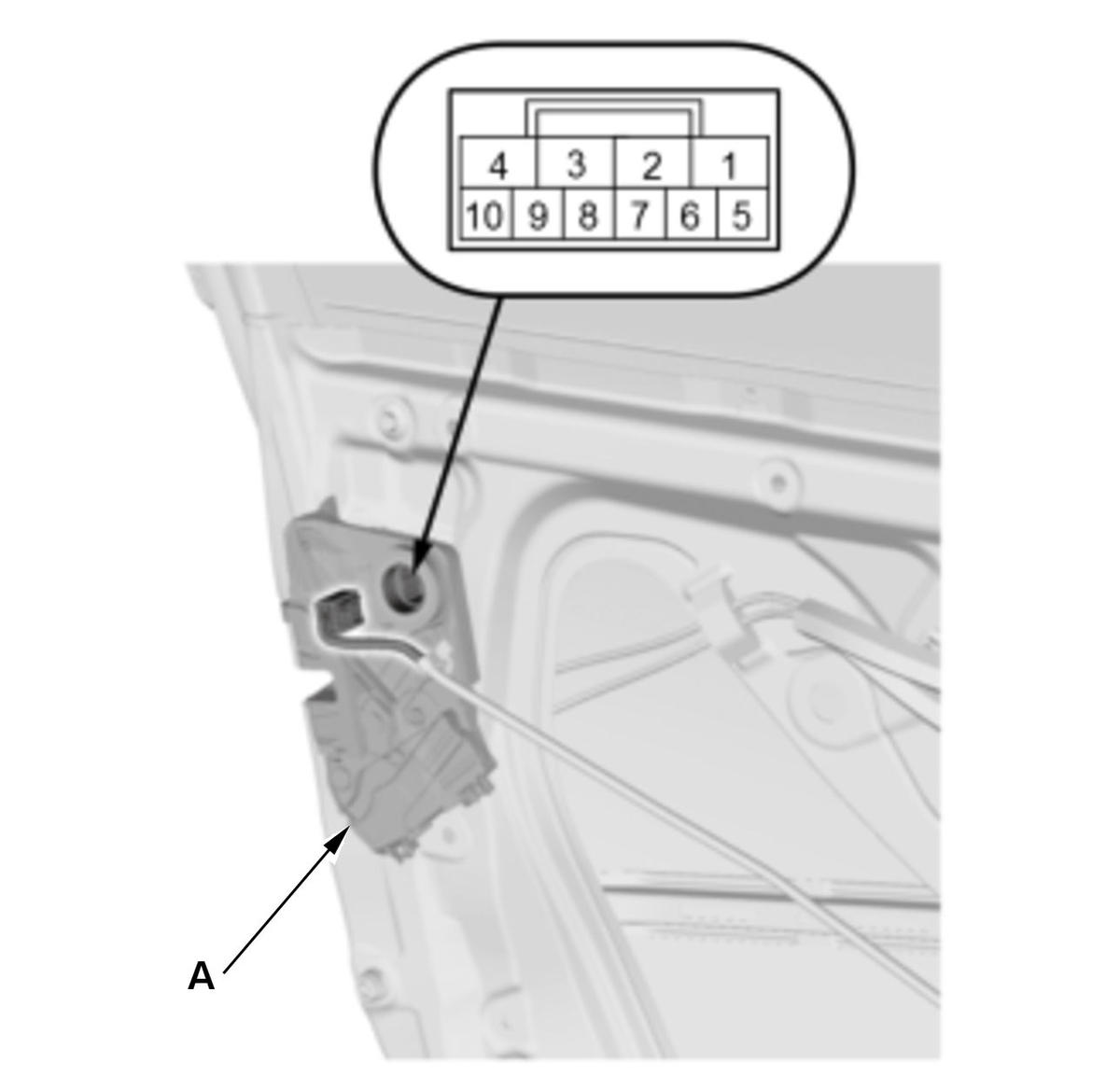

Driver's and Front Passenger's Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the connector.

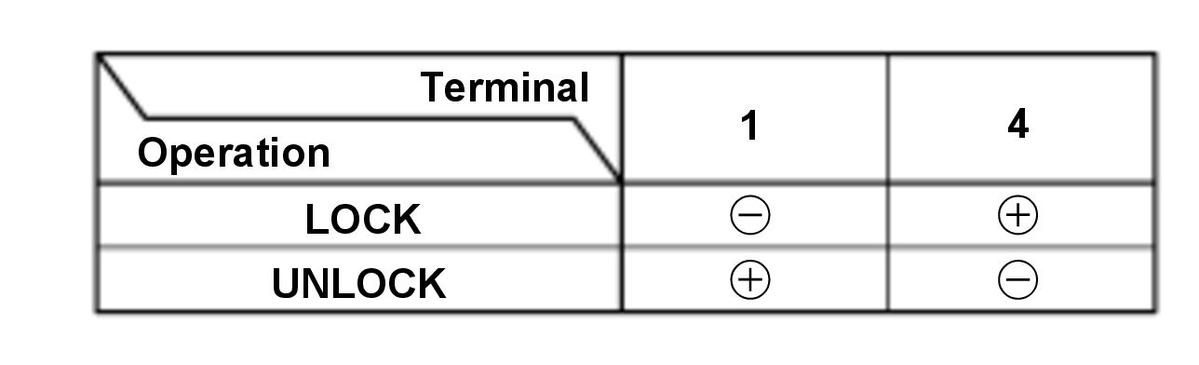

2. Check the actuator operation by connecting power and ground according to the table.

NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.

3. If the actuator does not operate as specified, the front door lock actuator is faulty; replace the front door latch

(A).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Rear Door
Rear Door Panel - Remove

Rear Door Lock Actuator - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

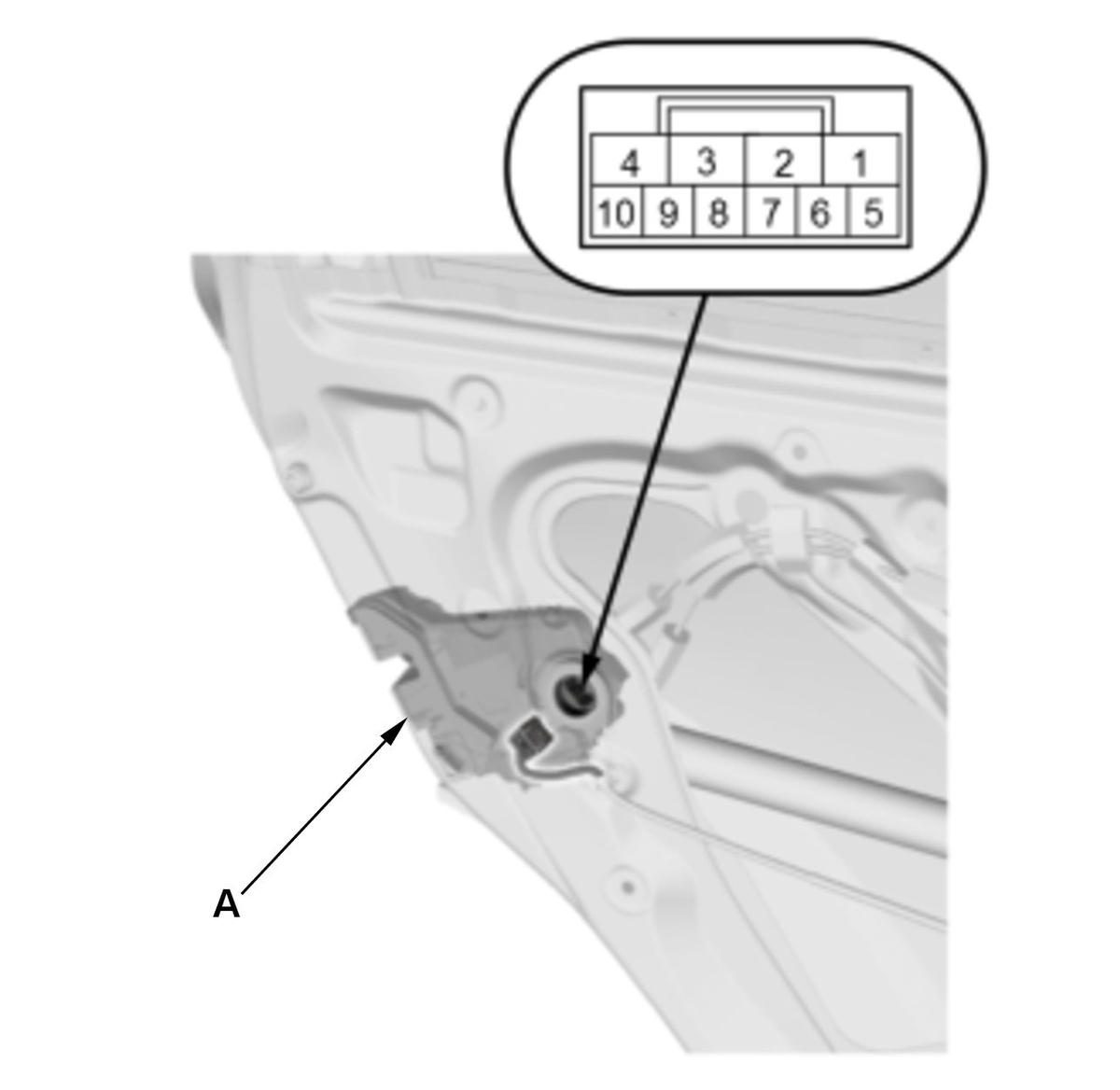

Left and Right Rear Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the connector.

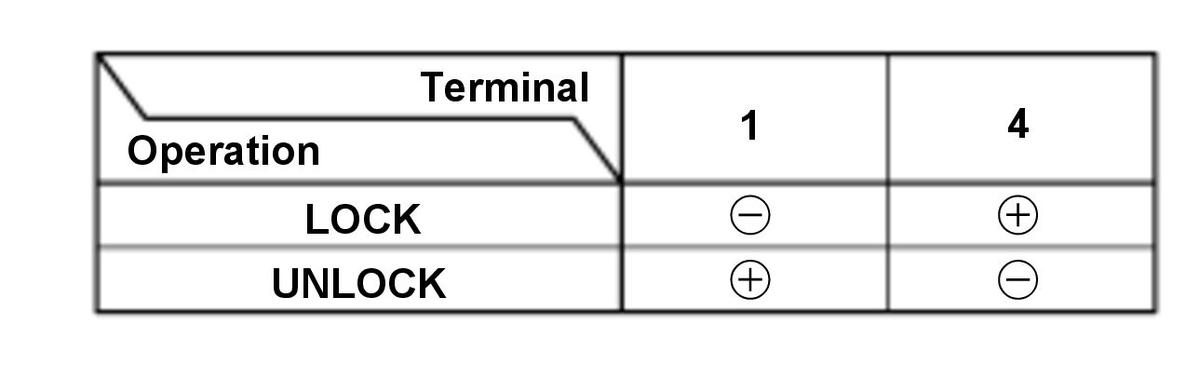

2. Check the actuator operation by connecting power and ground according to the table.

NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.

3. If the actuator does not operate as specified, the rear door lock actuator is faulty; replace the rear door latch

(A).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
