Removal And Installation

SRS components are located in this area. Review the SRS component locations and the SRS precautions and procedures before doing repairs or service.

NOTE:  If the immobilizer-keyless control unit is replaced, do the immobilizer-keyless control unit registration . If the original immobilizer-keyless control unit is installed, confirm that all systems work properly.

1. Column Cover - Remove
2. Immobilizer-Keyless Control Unit - Remove

   Courtesy of HONDA, U.S.A., INC.

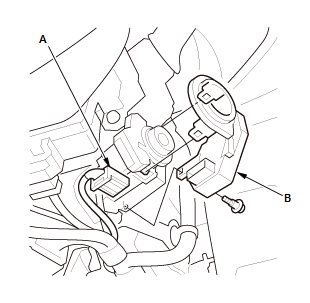

   1. Disconnect the connector (A) 2. Remove the immobilizer-keyless control unit (B).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

4. Immobilizer-Keyless Control Unit - Register
