Front Passenger's Power Window Switch Connector for Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

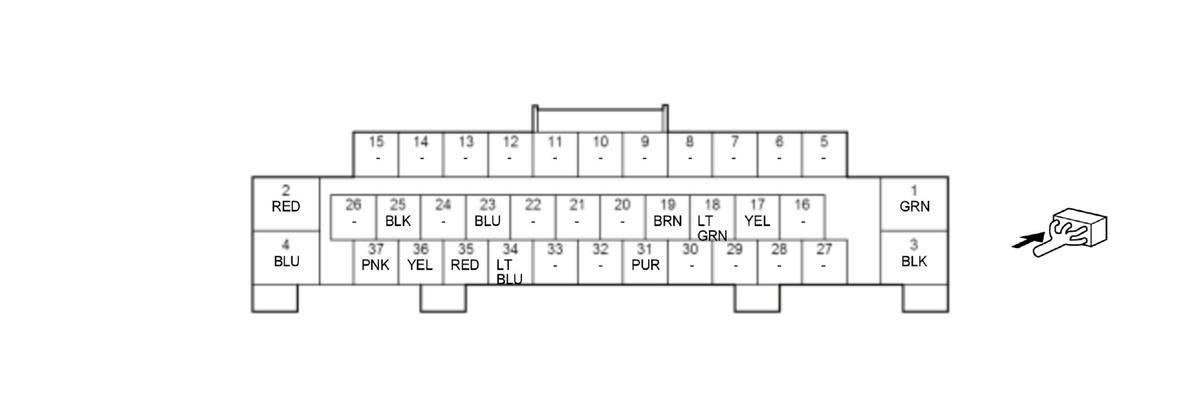

Front Passenger's Power Window Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B_P/W_AS	+B power source	About battery voltage at all times
2	P/W_AS_MTR_DOWN	Drives front passenger's power window motor	With front passenger's power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
3	GND	Front passenger's power window switch ground	Less than 0.2 V at all times
4	P/W_AS_MTR_UP	Drives front passenger's power window motor	With front passenger's power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
5	---	Not used	---
6	---	Not used	---
7	---	Not used	---
8	---	Not used	---
9	---	Not used	---
10	---	Not used	---
11	---	Not used	---
12	---	Not used	---
13	---	Not used	---
14	---	Not used	---
15	---	Not used	---
16	---	Not used	---
17	AS_MIRROR_COM	Detects power mirror DOWN or LEFT function signal	With vehicle in ON mode and power mirror DOWN or LEFT function: about battery voltage
18	AS_MIRROR_UD	Detects power mirror UP or LEFT function signal	With vehicle in ON mode and power mirror UP or LEFT function: about battery voltage
19	AS_MIRROR_LR	Detects power mirror DOWN or RIGHT function signal	With vehicle in ON mode and power mirror DOWN or RIGHT function: about battery voltage
20	---	Not used	---
21	---	Not used	---
22	---	Not used (reservation)	---

*1: With mirror defogger

*2: With front power window AUTO UP/DOWN function

Terminal number	Terminal name	Description	Signal
23* 1	H/MIRROR_AS	Drives right power mirror defogger	With power mirror defogger ON: about battery voltage
24	---	Not used	---
25* 2	P/W_AS_MTR_SGND	Ground for front passenger's power window motor pulser	Less than 0.2 V at all times
26	---	Not used (reservation)	---
27	---	Drives retract actuator	---
28	---	Drives retract actuator	---
29	---	Not used (reservation)	---
30	---	Not used (reservation)	---
31* 2	P/W_AS_MTR_VCC	Drives front passenger's power window motor hall IC (pulser) unit	With front passenger's power window control unit is wakeup mode and front passenger's power window motor operation: about battery voltage If none of above conditions are met: less than 0.2 V
32	---	Not used	---
33	---	Not used	---
34	LIN (P/W)	Communication line	---
35* 2	P/W_AS_MTR_PLSA	Detects front passenger's power window motor hall IC (pulser) unit signal	---
36	AS_SILCON_UNLOCK	Detects front passenger's door lock knob switch (UNLOCK) signal	With front passenger's door lock knob switch LOCK: about battery voltage With front passenger's door lock knob switch UNLOCK: less than 0.2 V
37* 2	P/W_AS_MTR_PLSB	Detects front passenger's power window motor hall IC (pulser) unit signal	---

*1: With mirror defogger

*2: With front power window AUTO UP/DOWN function
