Power Window Master Switch Connector for Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

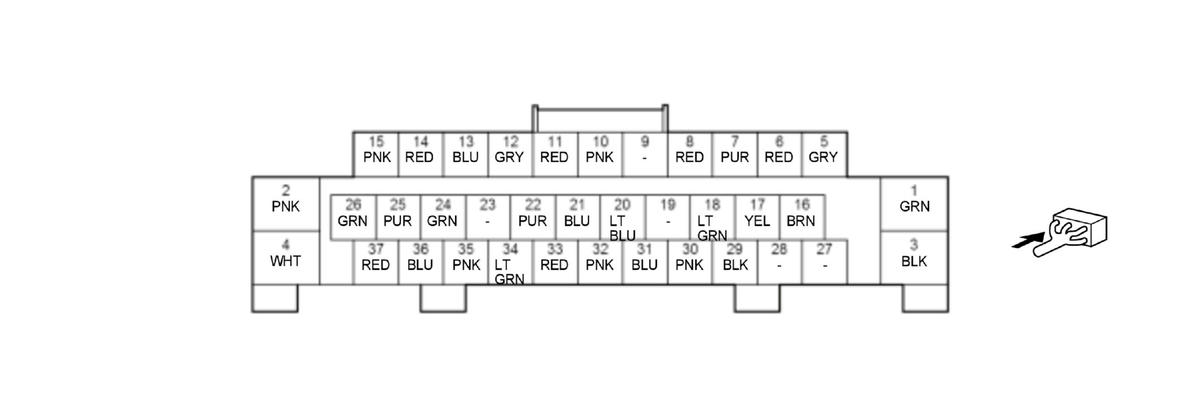

Power Window Master Switch 37P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W_DR_MTR_DOWN	Drives driver's power window motor	With driver's power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
2	P/W_DR_MTR_UP	Drives driver's power window motor	With driver's power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
3	GND	Power window master switch ground	Less than 0.2 V at all times
4	+B_P/W_DR	+B power source	About battery voltage at all times
5* 1	DR_MEMORY_SEAT_SW_POS1	Detects driving position memory switch position 1 signal	With driving position memory switch 1 ON: less than 0.2 V With driving position memory switch 1 OFF: about 5 V
6* 1	DR_MEMORY_SEAT_SW_POS2	Detects driving position memory switch position 2 signal	With driving position memory switch 2 ON: less than 0.2 V With driving position memory switch 2 OFF: about 5 V
7	DR_KEY_CYL_LOCK	Detects driver's door key cylinder switch (LOCK) signal	With driver's door key cylinder switch UNLOCK: about battery voltage With driver's door key cylinder switch LOCK: less than 0.2 V
8	DR_KEY_CYL_UNLOCK	Detects driver's door key cylinder switch (UNLOCK) signal	With driver's door key cylinder switch LOCK: about battery voltage With driver's door key cylinder switch UNLOCK: less than 0.2 V
9	---	Not used	---
10	MIRROR_R_COM	Detects power mirror DOWN or LEFT function signal	With vehicle in ON mode and power mirror DOWN or LEFT function: about battery voltage
11	MIRROR_R_LR	Detects power mirror DOWN or RIGHT function signal	With vehicle in ON mode and power mirror DOWN or RIGHT function: about battery voltage
12	MIRROR_UD	Detects power mirror UP or LEFT function signal	With vehicle in ON mode and power mirror UP or LEFT function: about battery voltage

*1: With DPMS

*2: With mirror defogger

Terminal number	Terminal name	Description	Signal
13	P/W_RR_L_SW_RLY_UP	Drives left rear power window motor	With left rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
14	P/W_RR_L_SW_RLY_DOWN	Drives left rear power window motor	With left rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
15* 2	H/MIRROR	Drives left power mirror defogger	With mirror defogger ON mode: about battery voltage
16	R/C_MIRROR_SEL_L-R	Detects power mirror reverse tilt function signal	With vehicle in ON mode and power mirror reverse tilt function: about battery voltage
17* 1	DR_MEMORY_SEAT_SW_MEMORY	Detects driving position memory switch (SET) signal	With driving position memory set switch ON: less than 0.2 V With driving position memory set switch OFF: about 5 V
18	IG2_A/C	IG2 power source	With vehicle in ON mode: about battery voltage
19	---	Not used	---
20	DR_SILCON_UNLOCK	Detects driver's door lock knob switch (UNLOCK) signal	With driver's door lock knob switch LOCK: about battery voltage With driver's door lock knob switch UNLOCK: less than 0.2 V
21	DR_SILCON_LOCK	Detects driver's door lock knob switch (LOCK) signal	With driver's door lock knob switch UNLOCK: about battery voltage With driver's door lock knob switch LOCK: less than 0.2 V
22* 1	DR_MEMORY_SEAT_SW_IND1	Outputs driving position memory switch indicator 1 signal	Indicator 1 ON: pulse (depending on indicator brightness) Indicator 1 OFF: less than 0.2 V
23	---	Not used	---
24* 1	DR_MEMORY_SEAT_SW_IND2	Outputs driving position memory switch indicator 2 signal	Indicator 2 ON: pulse (depending on indicator brightness) Indicator 2 OFF: less than 0.2 V
25	P/W_RR_R_SW_RLY_DOWN	Drives right rear power window motor	With right rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
26	P/W_RR_R_SW_RLY_UP	Drives right rear power window motor	With right rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
27	---	Not used	---
28	---	Not used	---
29	GND	Power window master switch ground	Less than 0.2 V at all times
30	P/W_SW_ILLUMI	Outputs illumination signal	With combination light switch PARKING: about battery voltage With combination light switch OFF: less than 0.2 V

*1: With DPMS

*2: With mirror defogger

Terminal number	Terminal name	Description	Signal
31	B-CAN_L	Communication line	---
32	B-CAN_H	Communication line	---
33	P/W_DR_MTR_PLSA	Detects driver's power window motor hall IC unit (pulser) signal	---
34	P/W_DR_MTR_VCC	Drives driver's power window motor hall IC (pulser) unit	With door multiplex control unit is wakeup mode and driver's power window motor operation: about battery voltage If none of above conditions are met: less than 0.2 V
35	P/W_DR_MTR_PLSB	Detects driver's power window motor hall IC unit (pulser) signal	---
36	LIN (P/W)	Communication line	---
37	+B_BACK_UP	+B power source	About battery voltage at all times

*1: With DPMS

*2: With mirror defogger
