Keyless Access System Symptom Troubleshooting - Cannot select ON mode with keyless access and with the keyless remote touching the power switch

WARNING: This page is about a different variant/trim than selected.
  1. Keyless access system check 1

    -1. Do this procedure ten times: Turn the vehicle to the ON mode.

    Does the system change to ON mode?

    YES

    Intermittent failure, the system is OK at this time. Check for loose or poor connection.

    NO

    Go to step 2.

  2. Keyless access system check 2

    -1. Touch the power switch with the keyless remote. The buttons on the keyless remote should be facing you.

    -2. Turn the vehicle to the ON mode.

    Does the system change to ON mode?

    YES

    Go to keyless access system symptom troubleshooting "Cannot select ON mode with keyless access, but can select ON mode with the keyless remote touching the power switch" .

    NO

    Go to step 3.

  3. Keyless access system check 3

    -1. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter SELF CHECK.

    One-Push - KEYLESS ACCESS CONTROL UNIT - SELF CHECK

    Does the system communicate with the HDS?

    YES

    Go to step 4.

    NO

    Go to step 10.

  4. Keyless access system check 4

    -1. Reboot the HDS.

    -2. Select model on the HDS screen.

    -3. When prompted by the HDS, select YES when asked if the vehicle has keyless access system, then press and hold the power switch for at least 2 minutes. This selects the forced ON mode.

    Does the system change to forced ON mode?

    YES

    Go to step 5.

    NO

    Go to step 15.

  5. PCU DTC check

    -1. Check for PCU DTCs with the HDS.

    DTC Description DTC


    Are any DTCs indicated?

    YES

    Troubleshoot the PCU DTCs.

    NO

    Go to step 6.

  6. Keyless access DTC check

    -1. Check for keyless access control unit DTCs with the HDS.

    DTC Description DTC


    Are any DTCs indicated?

    YES

    Troubleshoot the keyless access control unit DTCs.

    NO

    Go to step 7.

  7. Backup DTC check

    -1. Check for backup control unit DTCs with the HDS.

    DTC Description DTC


    Are any DTCs indicated?

    YES

    Troubleshoot the backup control unit DTCs.

    NO

    Go to step 8.

  8. Keyless access system check 5

    -1. Do the keyless access remote check using the all keyless remotes .

    Are the all keyless remotes OK?

    YES

    Go to step 9.

    NO

    Replace the keyless remote and recheck.

  9. Keyless access system check 6

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove all the keyless remotes from inside the vehicle. Place the keyless remotes more than 1.5 m (5.0 ft) away from the vehicle.

    -3. Reboot the HDS without pressing the power switch.

    -4. Do the registration of the body control module according to the instructions on the HDS screen.

    -5. Select REGISTRATION from the ONE-PUSH START system select menu with the HDS, then select REPLACE PCU/BACKUP CONTROL/KEYLESS ACCESS CONTROL UNIT.

    -6. Take the keyless remote into the vehicle, and clear the PCU DTCs with the HDS.

    -7. Do this procedure ten times: Turn the vehicle to the ON mode.

    Does the system change to ON mode?

    YES

    Intermittent failure, the system is OK at this time. Check for loose or poor connection.

    NO

    Replace the body control module .

  10. L-line check

    -1. Do the DLC circuit troubleshooting .

    Is L-line OK?

    YES

    Go to step 11.

    NO

    Repair an L-line wire circuit.

  11. Power switch operation check

    -1. Do the power switch test .

    Is the power switch OK?

    YES

    Go to step 12.

    NO

    Replace the power switch .

  12. Open wire check (SS1(+), SS2(-) lines)

    -1. Disconnect the following connectors.

    Power switch 10P connector
    Body control module connector G (32P)

    -2. Measure the resistance between test points 1 and 2 respectively.

    Test condition Vehicle OFF (LOCK) mode
    Power switch 10P connector: disconnected
    Body control module connector G (32P): disconnected
    Test point 1 Power switch 10P connector (female terminals) No. 6:
    Test point 2 Body control module connector G (32P) No. 18
    Test point 1 Power switch 10P connector (female terminals) No. 10:
    Test point 2 Body control module connector G (32P) No. 9
    GHH380838Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The SS1(+) and SS2(-) wires are OK. Go to step 13.

    NO

    Repair an open or high resistance in the wire.

  13. Open wire check (+B_SMART line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Power switch 10P connector: disconnected
    Body control module connector G (32P): disconnected
    Test point 1 Power switch 10P connector (female terminals) No. 5:
    Test point 2 Body ground
    GHH380840Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B_SMART wire is OK. Go to step 14.

    NO

    Repair an open or high resistance in the wire.

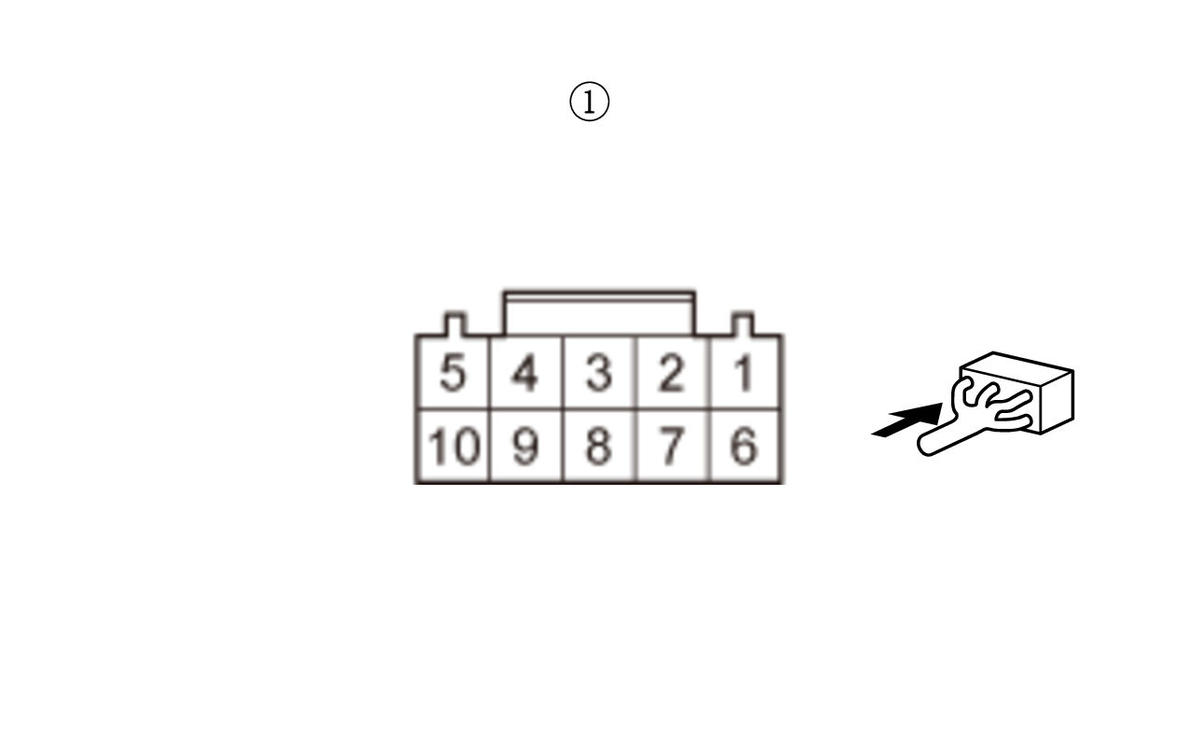

  14. Open wire check (GND line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Power switch 10P connector: disconnected
    Body control module connector G (32P): disconnected
    Test point 1 Power switch 10P connector (female terminals) No. 1:
    Test point 2 Body ground
    GHH380842Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The GND wire is OK. Go to step 16.

    NO

    Repair an open or high resistance in the ground wire or poor ground (G401).

  15. PCU DTC check

    -1. Check for PCU DTCs with the HDS.

    DTC Description DTC


    Are any DTCs indicated?

    YES

    Troubleshoot the PCU DTCs.

    NO

    Go to step 16.

  16. Open wire check (+B_BACK_UP, +B_SMART lines)

    -1. Disconnect the following connectors.

    Body control module connector B (36P)
    Body control module connector C (28P)

    -2. Measure the voltage between test points 1 and 2 individually.

    Test condition Vehicle OFF (LOCK) mode
    Power switch 10P connector: disconnected
    Body control module connector B (36P): disconnected
    Body control module connector C (28P): disconnected
    Test point 1 Body control module connector B (36P) No. 16
    Test point 2 Body ground
    Test point 1 Body control module connector C (28P) No. 27
    Test point 2 Body ground

    Is there battery voltage?

    YES

    The +B_BACK_UP, and +B_SMART wires are OK. Go to step 17.

    NO

    Repair an open or high resistance in the wire.

  17. Open wire check (GND line)

    -1. Disconnect the following connector.

    Body control module connector A (14P)

    -2. Measure the resistance between test points 1 and 2 individually.

    Test condition Vehicle OFF (LOCK) mode
    Power switch 10P connector: disconnected
    Body control module connector A (14P): disconnected
    Body control module connector B (36P): disconnected
    Body control module connector C (28P): disconnected
    Test point 1 Body control module connector A (14P) No. 2
    Test point 2 Body ground
    Test point 1 Body control module connector A (14P) No. 8
    Test point 2 Body ground

    Is there 1.0 Ω or less?

    YES

    The GND wires are OK. Replace the body control module .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G401).
