Door Lock Knob Switch Test: Test

WARNING: This page is about a different variant/trim than selected.

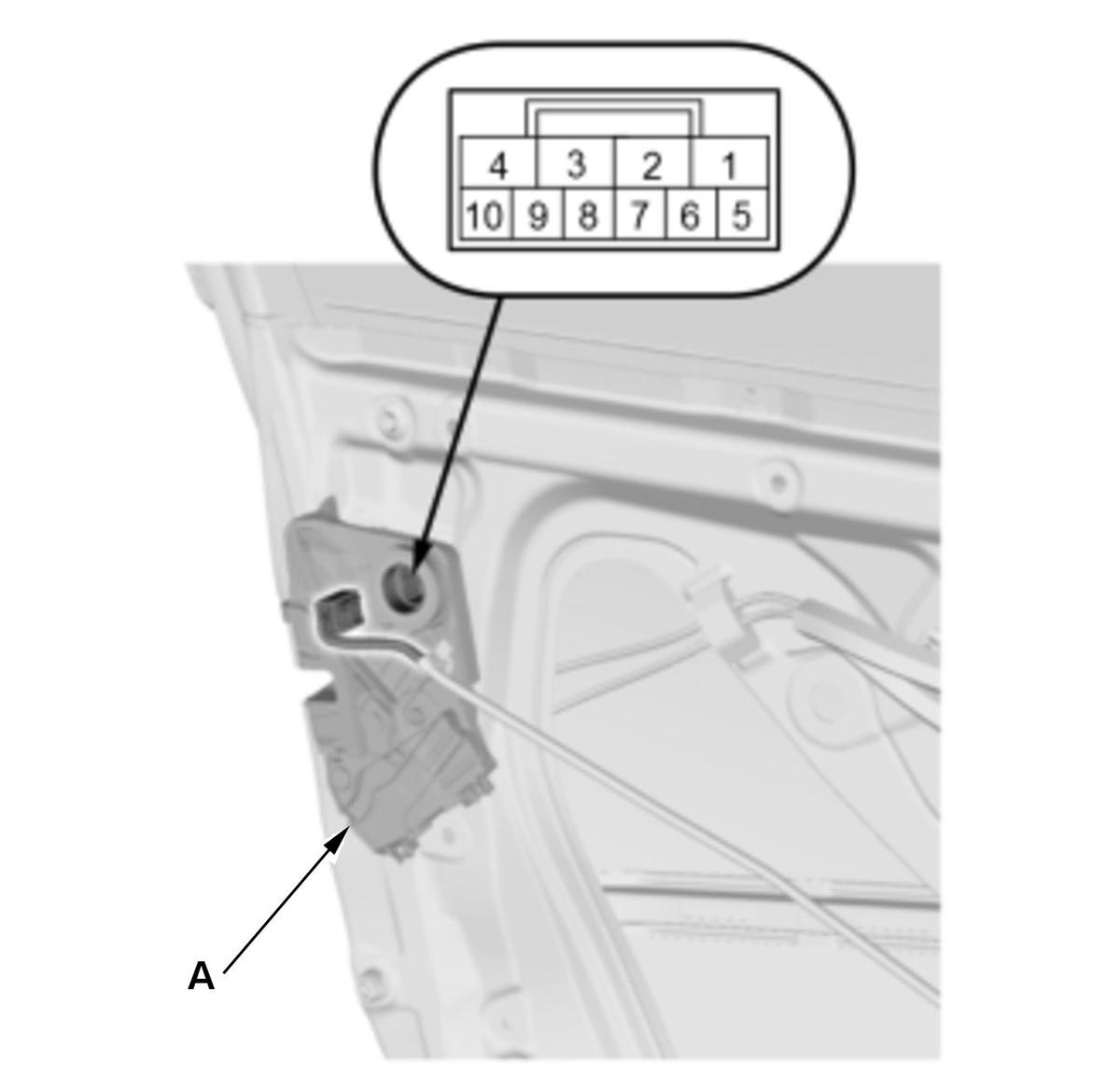

Front Door

Front Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

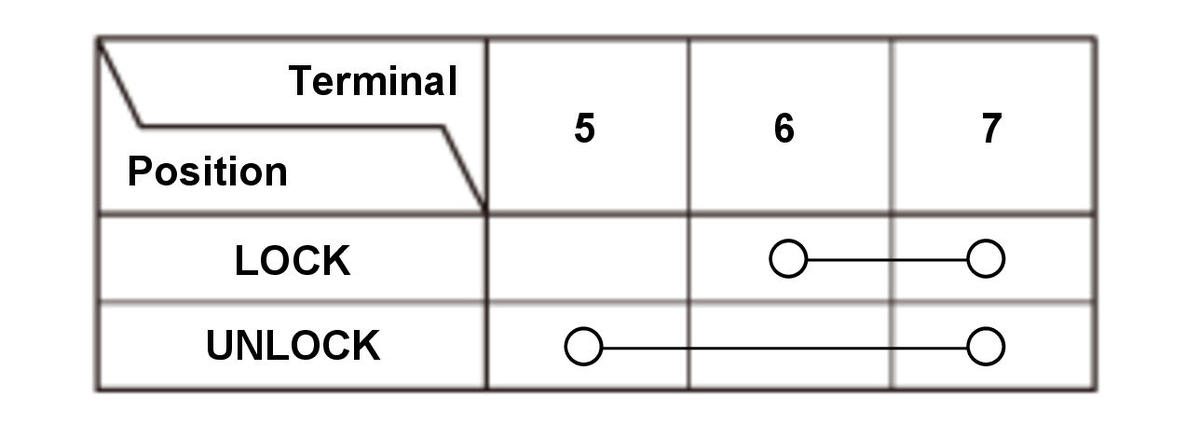

Driver's Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

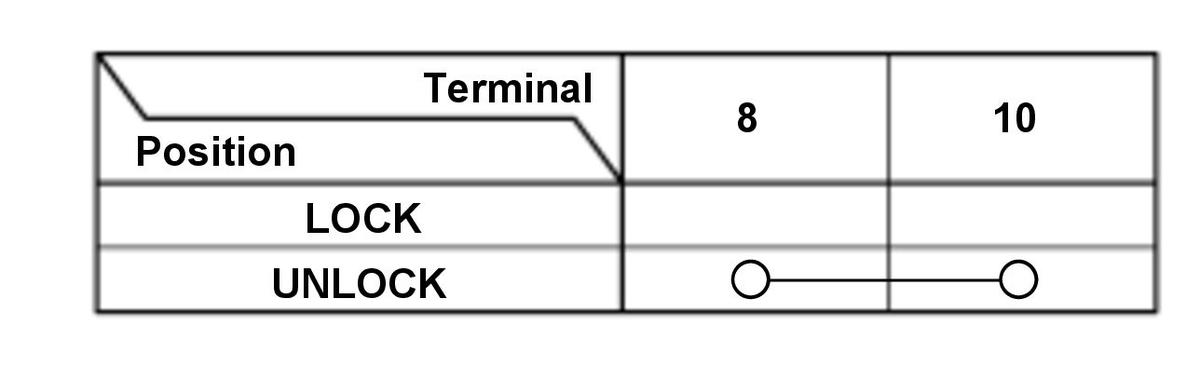

Front Passenger's Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the connector.

2. Check for continuity between the terminals in each switch position according to the table.

3. If the continuity is not as specified, the front door lock knob switch is faulty; replace the front door latch

(A).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Rear Door
Rear Door Panel - Remove

Rear Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

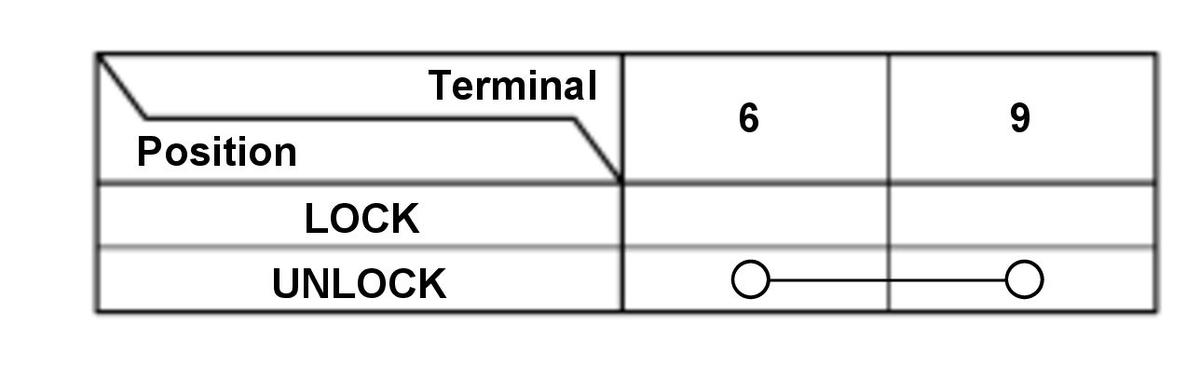

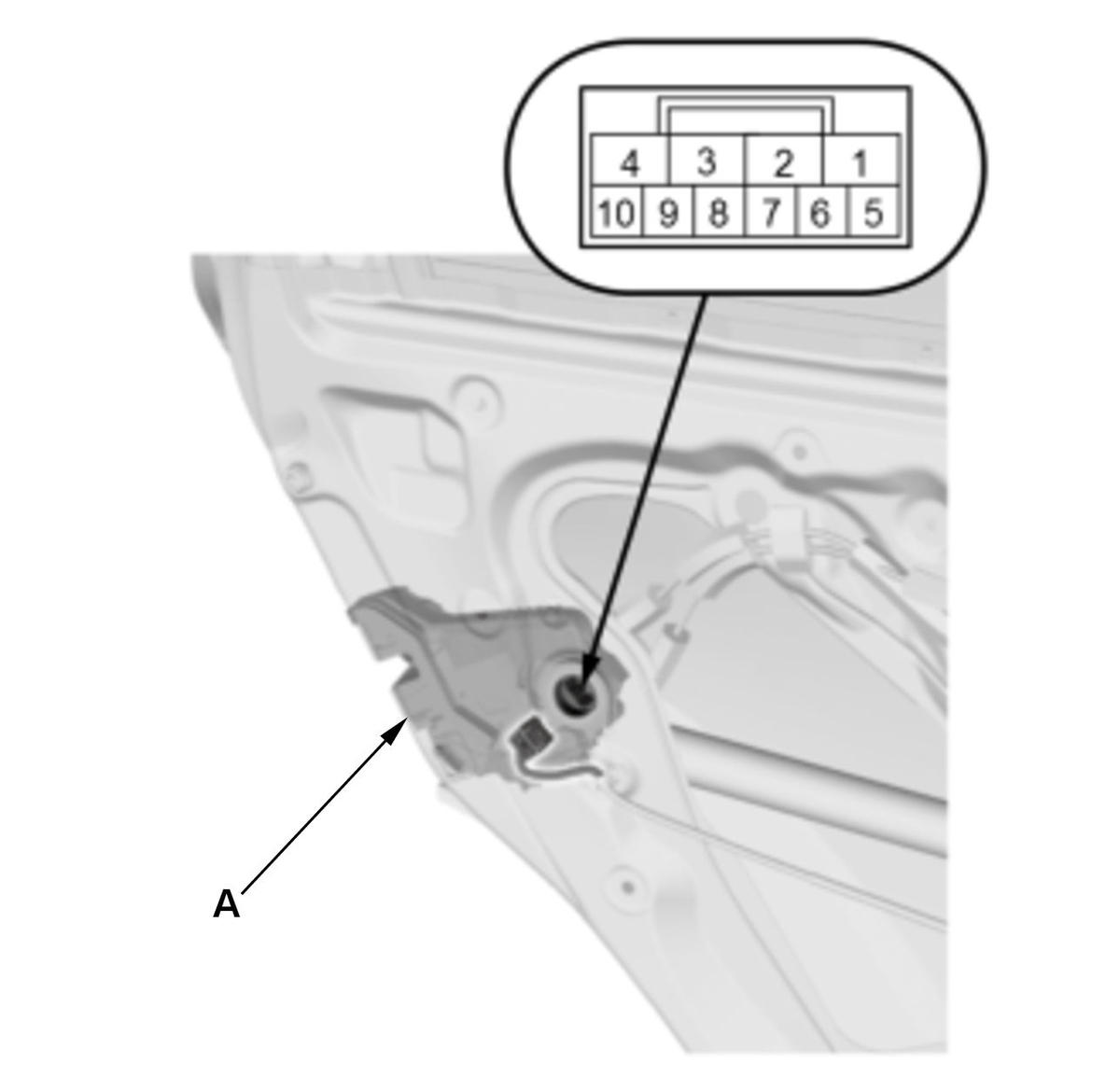

Left and Right Rear Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the connector.

2. Check for continuity between the terminals in each switch position according to the table.

3. If the continuity is not as specified, the rear door lock knob switch is faulty; replace the rear door latch

(A).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
