HomeLink Unit Connector for Inputs and Outputs
| Connector Index |
| HomeLink ® Unit 12P Connector (with panoramic glass roof) |
| HomeLink ® Unit 5P Connector (without panoramic glass roof) |

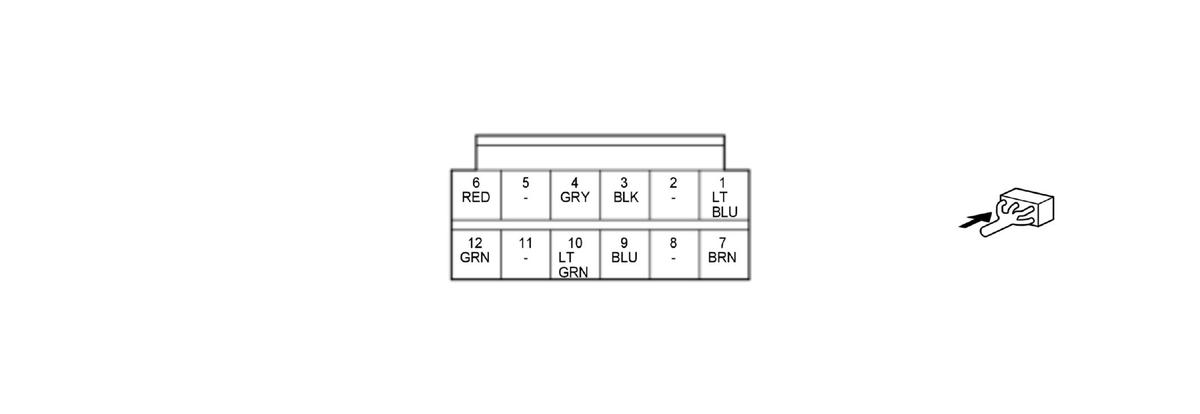

HomeLink ® Unit 12P Connector (female terminals) (with panoramic glass roof)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
Signal |
| 1 |
VSW |
Power source for HomeLink ® switch |
About battery voltage at all times |
| 2 |
--- |
Not used |
--- |
| 3 |
GND |
HomeLink ® unit ground |
Less than 0.2 V at all times |
| 4 |
SW3 |
Detects HomeLink ® switch (SW3) signal |
--- |
| 5 |
--- |
Not used |
--- |
| 6 |
+B BACK UP |
+B power source |
About battery voltage at all times |
| 7 |
SW1 |
Detects HomeLink ® switch (SW1) signal |
--- |
| 8 |
--- |
Not used |
--- |
| 9 |
LED+ |
Outputs HomeLink ® switch indicator signal |
--- |
| 10 |
SW2 |
Detects HomeLink ® switch (SW2) signal |
--- |
| 11 |
--- |
Not used |
--- |
| 12 |
LED- |
Ground for HomeLink ® switch indicator signal |
--- |

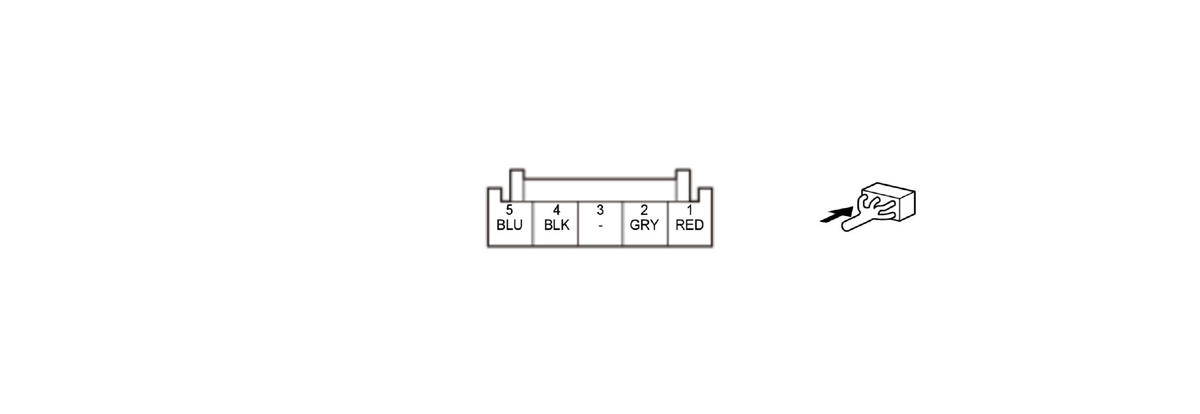

HomeLink ® Unit 5P Connector (female terminals) (without panoramic glass roof)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
Signal |
| 1 |
+B BACK UP |
+B power source |
About battery voltage at all times |
| 2 |
ILLUMI+ |
Detects illumination signal |
With combination light switch PARKING: about battery voltageWith combination light switch OFF: less than 0.2 V |
| 3 |
--- |
Not used |
--- |
| 4 |
GND |
HomeLink ® unit ground |
Less than 0.2 V at all times |
| 5 |
ILL-(LED) |
Outputs illumination signal |
--- |
