Power Tailgate Control Unit Connector for Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

Connector Index
Power Tailgate Control Unit Connector A (24P)
Power Tailgate Control Unit Connector B (10P)
Power Tailgate Control Unit Connector C (5P)

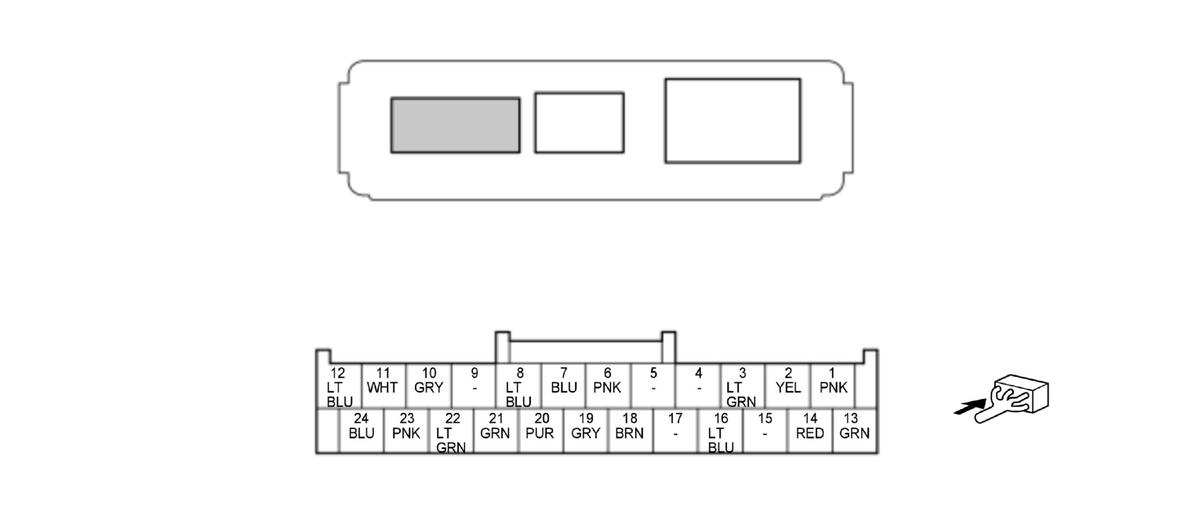

Power Tailgate Control Unit Connector A (24P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	ATP-P	Detects transmission in P position/mode signal	With P position/mode: less than 0.2 V With out of P position/mode and wakeup mode: about 5 V With out of P position/mode and sleep mode: pulse
2	PTG/PTL_SCOM	Ground for driver's power tailgate switch, tailgate outer handle switch, and power tailgate inside switch	Less than 0.2 V at all times
3	PTG/PTL_SENA	Detects power tailgate sensor signal	---
4	---	Not used	---
5	---	Not used	---
6	B-CAN_H	Communication line	---
7	B-CAN_L	Communication line	---
8	T/G_OPEN_SW	Detects driver's power tailgate switch signal	With driver's power tailgate switch ON: less than 0.2 V With driver's power tailgate switch OFF: about 5 V
9	---	Not used	---
10	PTG/PTL_CLCL	Detects neutral switch signal	With neutral switch ON: less than 0.2 V With neutral switch OFF: about 5 V
11	T/G_SW	Detects full latch switch signal	With full latch switch ON: less than 0.2 V With full latch switch OFF: about 5 V
12	PTG/PTL_HALF	Detects half latch switch signal	With half latch switch ON: less than 0.2 V With half latch switch OFF: about 5 V
13*	KICK_SNSR	Detects hands free access power tailgate control unit/sensor signal	---

*: With hands free access power tailgate

Terminal number	Terminal name	Description	Signal
14	PTG/PTL_SEG1	Ground for power tailgate sensor	Less than 0.2 V at all times
15	---	Not used	---
16	PTG/PTL_SENB	Detects power tailgate sensor signal	---
17	---	Not used	---
18	IG1_METER	IG1 power source	With vehicle in ON or START mode: about battery voltage
19	PTG/PTL_SVCC	Power source for power tailgate sensor	About battery voltage at all times
20	CDS	Detects SRS unit collision detection signal	With SRS unit collision detection: less than 0.2 V With SRS unit non-collision detection and wakeup mode: about 5 V With body control module is sleep mode: less than 0.2 V at all time
21	PTG/PTL_SEG3	Ground for power tailgate closer unit switches	Less than 0.2 V at all times
22	PTG/PTL_RACT	Detects ratchet switch signal	With ratchet switch ON: less than 0.2 V With ratchet switch OFF: about 5 V
23	T/G_OPEN_SW	Detects tailgate outer handle switch signal	With tailgate outer handle switch ON: less than 0.2 V With tailgate outer handle switch OFF: about 5 V
24	PTG/PTL_CLOSE_SW	Detects power tailgate inside switch signal	With power tailgate inside switch ON: less than 0.2 V With power tailgate inside switch OFF: about 5 V

*: With hands free access power tailgate

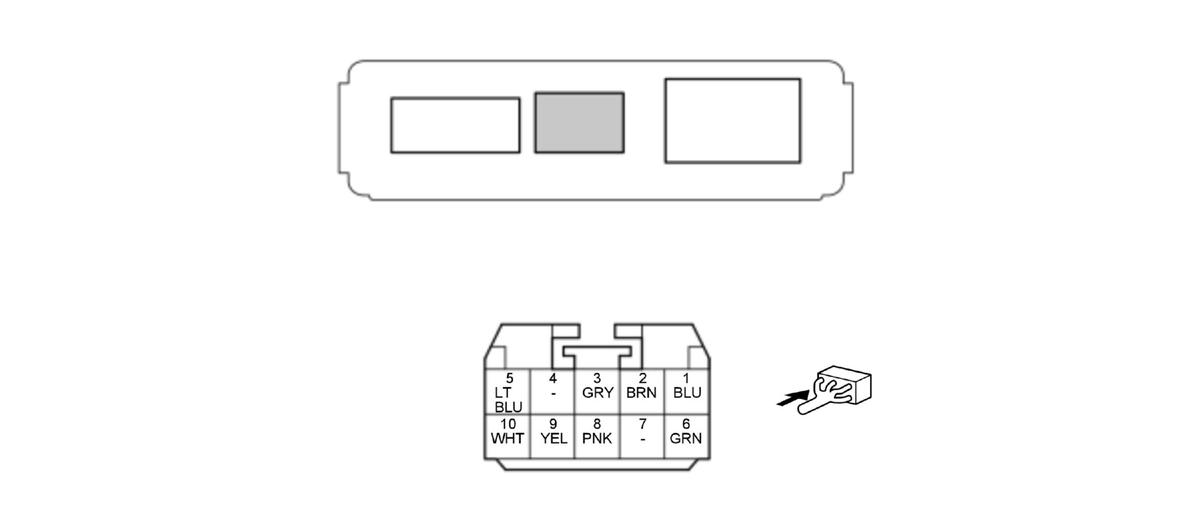

Power Tailgate Control Unit Connector B (10P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	PTG/PTL_THERMISTOR	Detects left power tailgate pinch sensor thermistor signal	---
2	PTG/PTL_CLM+	Drives power tailgate closer motor	When closer motor in close operation: about battery voltage

Terminal number	Terminal name	Description	Signal
3	PTG/PTL_TSLL	Detects left power tailgate pinch sensor signal	With left power tailgate pinch sensor ON: less than 0.2 V With left power tailgate pinch sensor OFF: about battery voltage
4	---	Not used	---
5	+B_PTG/PTL_CLOSER	+B power source	About battery voltage at all times
6	PTG/PTL_CLM-	Drives power tailgate closer motor	When closer motor in release operation: about battery voltage
7	---	Not used	---
8	PTG/PTL_SEG2	Ground for power tailgate pinch sensor	Less than 0.2 V at all times
9	PTG/PTL_TSLA	Detects right power tailgate pinch sensor signal	With right power tailgate pinch sensor ON: less than 0.2 V With right power tailgate pinch sensor OFF: about battery voltage
10	+B_BACK_UP	+B power source	About battery voltage at all times

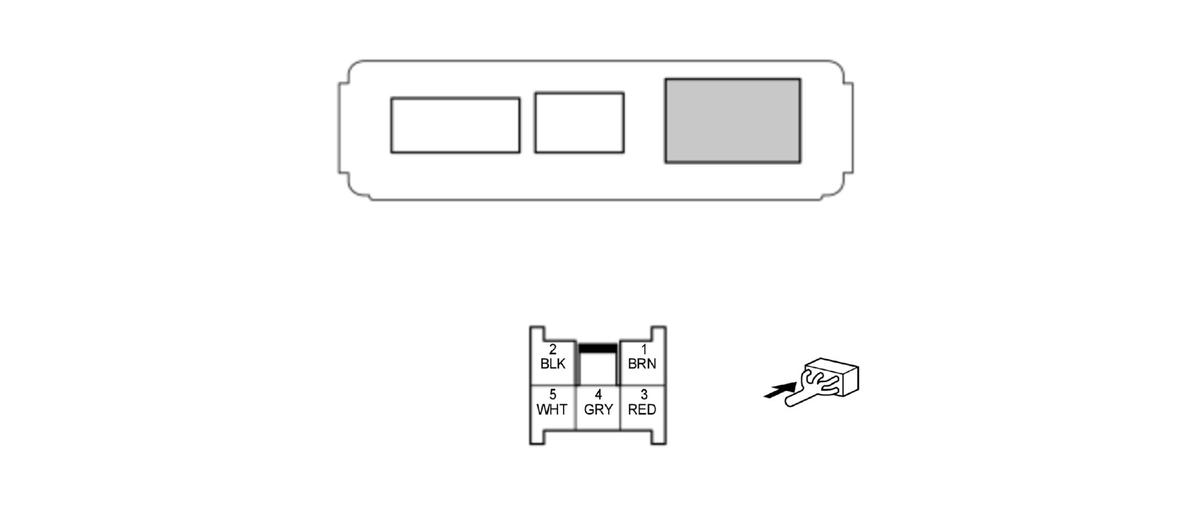

Power Tailgate Control Unit Connector C (5P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B_PTG/PTL_MOTOR	+B power source	About battery voltage at all times
2	GND	Power tailgate control unit ground	Less than 0.2 V at all times
3	PTG/PTL_PTM+	Drives power tailgate motor	When power tailgate motor in open operation: about battery voltage If none of above conditions are met: less than 0.2 V
4	GND	Power tailgate control unit ground	Less than 0.2 V at all times
5	PTG/PTL_PTM-	Drives power tailgate motor	When power tailgate motor in close operation: about battery voltage If none of above conditions are met: less than 0.2 V
