Run the Sensor Input Display Mode

1. Press and hold both the AUTO and RECIRCULATION buttons, then start the engine.

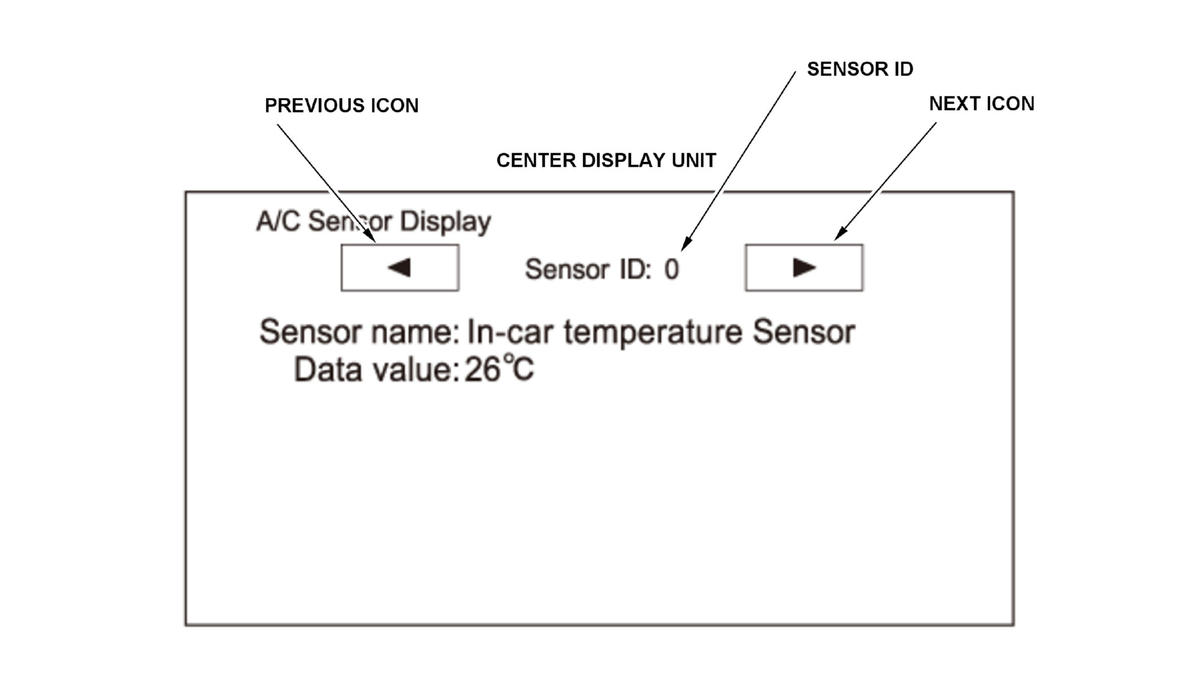

2. Release both buttons. The display screen goes directly to the A/C sensor display mode shown. The display screen indicates the sensor ID and then the value for that sensor.

Courtesy of HONDA, U.S.A., INC.

3. To advance to the next sensor, touch the sensor ID previous/next icon or press the REAR WINDOW DEFOGGER/MIRROR DEFOGGER * button.*: With mirror defogger To cancel the sensor input display mode, press the AUTO button or turn the vehicle to the OFF (LOCK) mode.

NOTE:

The sensor values will be displayed in degrees Celsius (deg.C) or an alphanumeric code. Use the chart to convert the value to degrees Fahrenheit (deg.F).
If the sensor value displays "Error", this indicates there is an open or short in the circuit or sensor. Check for DTCs using the HDS, or use the climate control self-diagnostic function.
If necessary, compare the sensor input display to a known-good vehicle under the same test conditions.
If the sensor displayed value is out of the normal range, refer to the sensor test or substitute a known-good sensor, and recheck.
Unsupported items shall be skipped.

Sensor ID	Sensor Name	Data Value
0	In-car temperature sensor	deg.C
1	Outside air temperature sensor	deg.C
2	Sunlight sensor	10 W/m 2.h
3	Engine coolant temperature	deg.C
4	Evaporator temperature sensor	deg.C
8	Air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution)	% of opening
9	Passenger's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution)	% of opening
11	Mode positioning	0.1 V
13	Recirculation control opening	% of opening
14	Sunlight sensor type	Hard Wire BCAN Unknown
15	Vehicle speed (vehicle must be driven to display speed)	km/h
16	A/C compressor oil circulation	Finished Unfinished
19	Not used	---
