Body Control Module Connector for Inputs and Outputs

Connector Index
BODY CONTROL MODULE CONNECTOR A (14P)
BODY CONTROL MODULE CONNECTOR B (36P)
BODY CONTROL MODULE CONNECTOR C (28P)
BODY CONTROL MODULE CONNECTOR D (40P)
BODY CONTROL MODULE CONNECTOR E (24P)
BODY CONTROL MODULE CONNECTOR F (36P)
BODY CONTROL MODULE CONNECTOR G (32P)

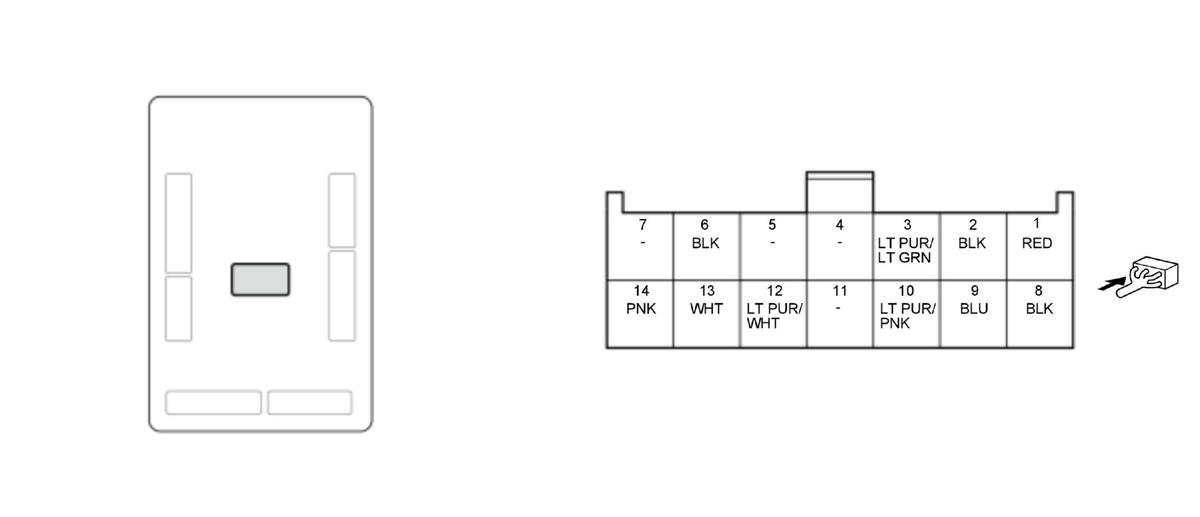

Body Control Module Connector A (14P) (female terminals)

GHH419309Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description Signal
1 +B HAZARD Power source for IPD About battery voltage at all times
2 GND Ground for body control module Less than 0.2 V at all times
3 INTR LT CUT RLY CL- Outputs INTR LT CUT RLY CL- signal With interior lights are ON: less than 0.2 VWith interior lights are OFF: about battery voltage
4 Not used --- ---
5 Not used --- ---
6 GND Ground for body control module Less than 0.2 V at all times
7 Not used --- ---
8 GND Ground for body control module Less than 0.2 V at all times
9 +B L H/L HI Power source for IPD About battery voltage at all times
10 L H/L HI Outputs L H/L HI signal With left headlight (HI) is ON: about battery voltage

With left headlight (HI) is OFF: less than 0.2 V
11 Not used --- ---
12 R H/L HI Outputs R H/L HI signal With right headlights (HI) is ON: about battery voltage

With right headlights (HI) is OFF: less than 0.2 V
13 INTR LIGHT- Outputs INTR LIGHT- signal ---
14 +B R H/L HI Power source for IPD About battery voltage at all times

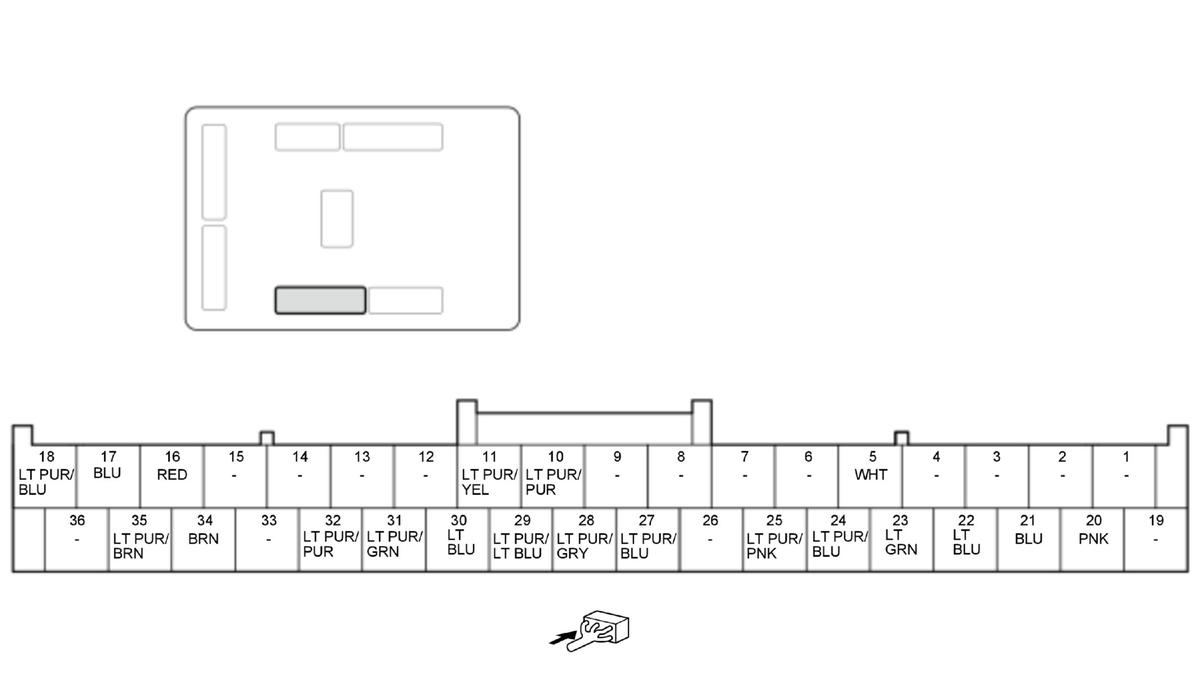

Body Control Module Connector B (36P) (female terminals)

GHH419310Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description Signal
1 Not used --- ---
2 Not used --- ---
3 Not used --- ---
4 Not used --- ---
5 AC CHG LID RLY Detects AC CHG LID RLY signal When charge lid actuator in operation and body control module is wakeup mode: less than 0.2 V

When charge lid actuator in no operation: about battery voltage
6 Not used --- ---
7 Not used --- ---
8 Not used --- ---
9 Not used --- ---
10 BACK UP(WIPER) Outputs BACK UP (WIPER) signal With vehicle in ON mode and wiper switch LO or HI operation: about battery voltage

If none of above conditions are met: less than 0.2 V
11 DRL RLY CL- Outputs DRL RLY CL- signal With daytime running lights are ON: less than 0.2 V

With daytime running lights are OFF: about battery voltage
12 Not used --- ---
13 Not used --- ---
14 Not used --- ---
15 Not used --- ---
16 +B SMART Power source for body control module About battery voltage at all times
17 FR L TURN Outputs FR L TURN signal With left turn signal lights are ON: about battery voltage
18 RR L TURN Outputs RR L TURN signal With left turn signal lights are ON: about battery voltage
19 Not used --- ---
20 B-CAN_H Communication line ---
21 B-CAN_L Communication line ---
22 F-CAN B_H Communication line ---
23 F-CAN B_L Communication line ---
24 H/L LO RLY CL- Outputs H/L LO RLY CL- signal With headlights (LO) are ON: less than 0.2 V

With headlights (LO) are OFF: about battery voltage
Terminal number Terminal name Description Signal
25 PARKING LT RLY CL- Outputs PARKING LT RLY CL- signal With parking lights are ON: less than 0.2 V

With parking lights are OFF: about battery voltage
26 Not used --- ---
27 DOOR LOCK RELAY CL- Outputs DOOR LOCK RLY CL- signal When door lock actuators in locking operation: less than 0.2 V
28 SCTY HORN RLY CL- SCTY HORN RLY CL- signal With horn (high)/security horn no sound: about battery voltage

With horn (high)/security horn sound: less than 0.2 V
29 TRUNK ACT RLY CL- Outputs TRUNK ACT RLY CL- signal When trunk lid opener solenoid in operation: less than 0.2 V
30 HORN SW Detects HORN SW signal With horn switch OFF: about battery voltage

With horn switch ON: less than 0.2 V
31 DR DOOR UNLOCK RELAY CL- Outputs DR DOOR UNLOCK RELAY CL- signal When driver's door lock actuator in unlocking operation: less than 0.2 V
32 DOOR UNLOCK RELAY CL- Outputs DOOR UNLOCK RELAY CL- signal When door lock actuators in unlocking operation: less than 0.2 V
33 Not used --- ---
34 FR R TURN Outputs FR R TURN signal With right turn signal lights are ON: about battery voltage
35 RR R TURN Outputs RR R TURN signal With right turn signal lights are ON: about battery voltage
36 Not used --- ---

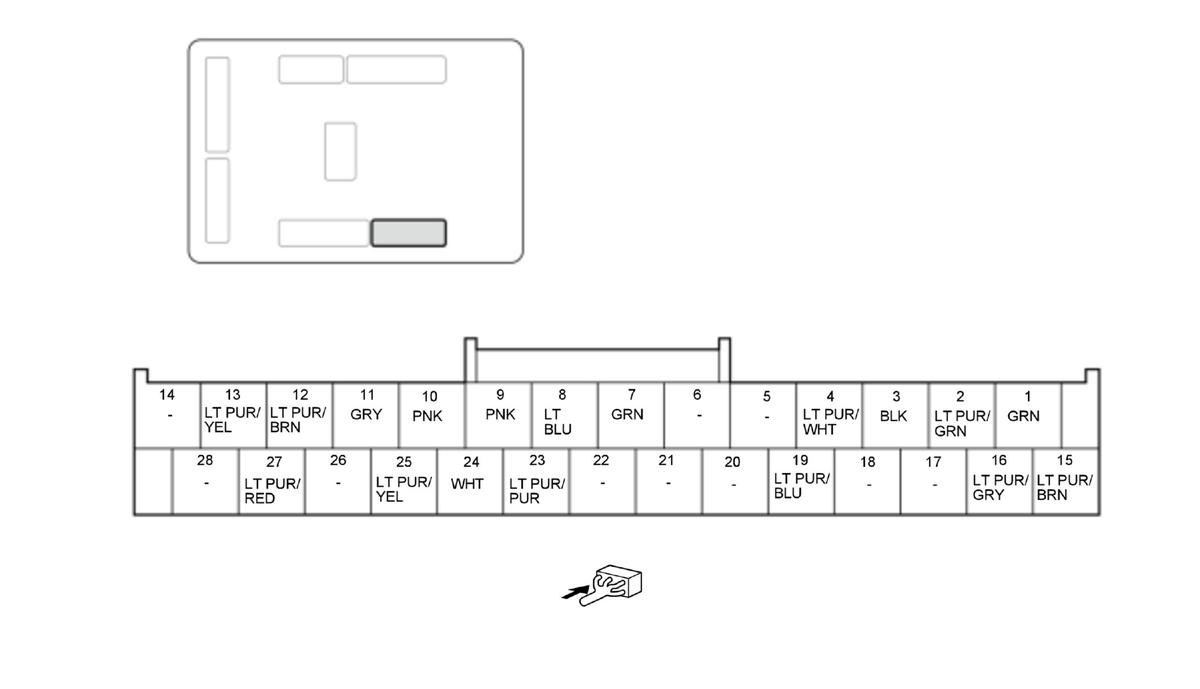

Body Control Module Connector C (28P) (female terminals)

GHH419311Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description Signal
1 ATP-P Detects ATP-P signal With P position/mode: less than 0.2 V

With out of P position/mode and body control module is wakeup mode: about battery voltage

With out of P position/mode and body control module is sleep mode: pulse
2 HAZARD SW Detects HAZARD SW signal With hazard warning switch OFF: about battery voltageWith hazard warning switch ON: less than 0.2 V
3 COMBI SW GND(LT) Ground for combination light switch Less than 0.2 V at all times
4 TRUNK OPEN SW Detects TRUNK OPEN SW signal With trunk lid outer handle switch OFF: about battery voltageWith trunk lid outer handle switch ON: less than 0.2 V
5 Not used --- ---
Terminal number Terminal name Description Signal
6 Not used --- ---
7 PASSING SW Detects PASSING SW signal With combination light switch PASSING: less than 0.2 V

With combination light switch OFF and body control module is wakeup mode: about battery voltage

With combination light switch OFF and body control module is sleep mode: pulse
8 H/L HI SW Detects H/L HI SW signal With combination light switch HI: less than 0.2 V

With combination light switch OFF and body control module is wakeup mode: about battery voltage

With combination light switch OFF and body control module is sleep mode: pulse
9 H/L ON SW Detects H/L ON SW signal With combination light switch ON: less than 0.2 V

With combination light switch OFF and body control module is wakeup mode: about battery voltage

With combination light switch OFF and body control module is sleep mode: pulse
10 H/L OFF SW Detects H/L OFF SW signal With combination light switch OFF: less than 0.2 V

With combination light switch ON and body control module is wakeup mode: about battery voltage

With combination light switch ON and body control module is sleep mode: pulse
11 PARKING LT SW Detects PARKING LT SW signal With combination light switch PARKING: less than 0.2 V

With combination light switch OFF and body control module is wakeup mode: about battery voltage

With combination light switch OFF and body control module is sleep mode: pulse
12 IG2 DRL IG2 power source With vehicle in ON mode: about battery voltage
13 LIN(FR WIPER) Communication line ---
14 Not used --- ---
15 RR L SILCON UNLOCK Detects RR L SILCON UNLOCK signal With left rear door lock knob switch UNLOCK: less than 0.2 V

With left rear door lock knob switch LOCK and body control module is wakeup mode: about battery voltage

With left rear door lock knob switch LOCK and body control module is sleep mode: pulse
16 RR R SILCON UNLOCK Detects RR R SILCON UNLOCK signal With right rear door lock knob switch UNLOCK: less than 0.2 V

With right rear door lock knob switch LOCK and body control module is wakeup mode: about battery voltage

With right rear door lock knob switch LOCK and body control module is sleep mode: pulse
17 Not used --- ---
18 Not used --- ---
19 HOOD SW Detects HOOD SW signal With hood latch switch ON: less than 0.2 V

With hood latch switch OFF and body control module is wakeup mode: about battery voltage

With hood latch switch OFF and body control module is sleep mode: pulse
20 Not used --- ---
21 Not used --- ---
22 Not used --- ---
23 ACC ACC power source With vehicle in ACCESSORY or ON mode: about battery voltage
24 BACK LT Detects BACK LT signal With vehicle in ON mode and R position/mode: about battery voltage

If none of above conditions are met: less than 0.2 V
25 BRK DIAG Detects BRK DIAG signal With brake pedal pressed: about battery voltage

With brake pedal released: less than 0.2 V
26 Not used --- ---
27 +B BACK UP Power source for body control module About battery voltage at all times
28 Not used --- ---

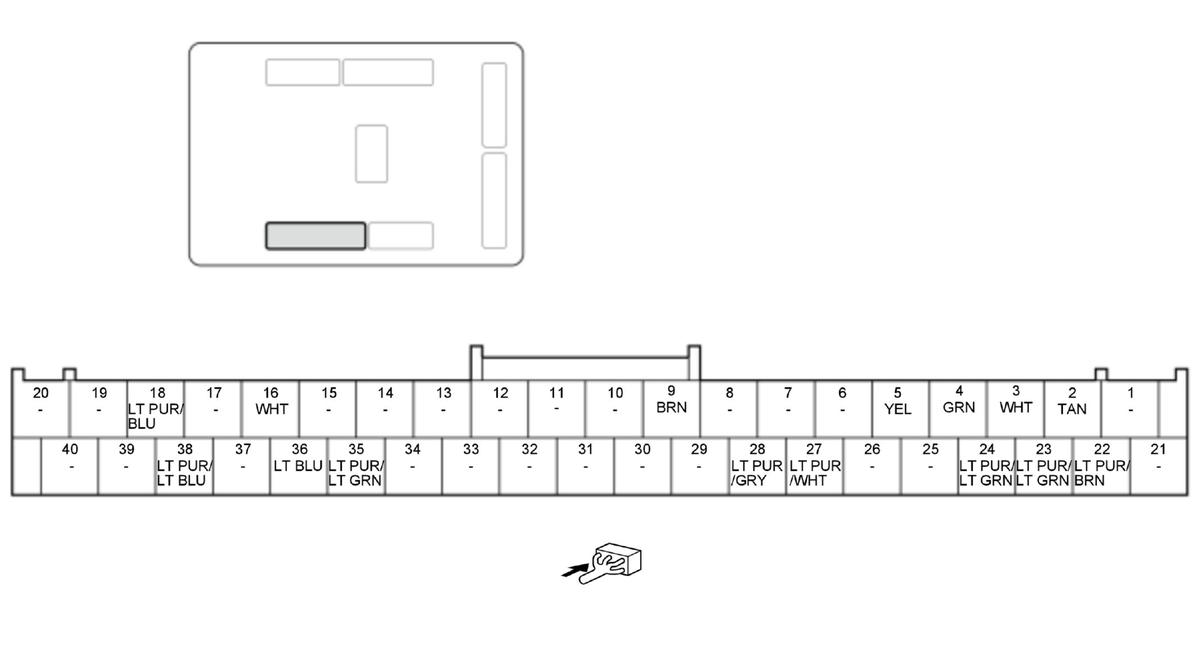

Body Control Module Connector D (40P) (female terminals)

GHH419312Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description Signal
1 Not used --- ---
2 FR WIPER INT SW Detects FR WIPER INT SW signal With windshield wiper switch INT or LO: less than 0.2 V

With out of windshield wiper switch INT or LO and body control module is wakeup mode: about battery voltage

With out of windshield wiper switch INT or LO and body control module is sleep mode: less than 0.2 V
3 FR WIPER HI SW Detects FR WIPER HI SW signal With windshield wiper switch HI or LO: less than 0.2 V

With out of windshield wiper switch HI or LO and body control module is wakeup mode: about battery voltage

With out of windshield wiper switch HI or LO and body control module is sleep mode: less than 0.2 V
4 FR WIPER MIST SW Detects FR WIPER MIST SW signal With windshield wiper switch MIST: less than 0.2 V

With out of windshield wiper switch MIST and body control module is wakeup mode: about battery voltage

With out of windshield wiper switch MIST and body control module is sleep mode: less than 0.2 V
5 FR WASHER SW Detects FR WASHER SW signal With windshield washer switch ON: less than 0.2 V

With windshield washer switch OFF and body control module is wakeup mode: about battery voltage

With windshield washer switch OFF and body control module is sleep mode: less than 0.2 V
6 Not used --- ---
7 Not used --- ---
8 Not used --- ---
9 COMBI SW GND(WIP) Ground for wiper/washer switch Less than 0.2 V at all times
10 Not used --- ---
11 Not used --- ---
12 Not used --- ---
13 Not used --- ---
14 Not used --- ---
15 Not used --- ---
16 H/L LO SIG Detects H/L LO SIG signal ---
Terminal number Terminal name Description Signal
17 Not used --- ---
18 AC CHG LID OP SW Detects AC CHG LID OP SW signal With charge lid opener switch pressed: less than 0.2 V

With charge lid opener switch released and body control module is wakeup mode: about battery voltage

With charge lid opener switch released and body control module is sleep mode: pluse
19 Not used --- ---
20 Not used --- ---
21 Not used --- ---
22 FL DOOR SW Detects FL DOOR SW signal With driver's door switch ON: less than 0.2 V

With driver's door switch OFF and body control module is wakeup mode: about battery voltage

With driver's door switch OFF and body control module is sleep mode: pulse
23 FR DOOR SW Detects FR DOOR SW signal With front passenger's door switch ON: less than 0.2 V

With front passenger's door switch OFF and body control module is wakeup mode: about battery voltage

With front passenger's door switch OFF and body control module is sleep mode: pulse
24 RL DOOR SW Detects RL DOOR SW signal With left rear door switch ON: less than 0.2 V

With left rear door switch OFF and body control module is wakeup mode: about battery voltage

With left rear door switch OFF and body control module is sleep mode: pulse
25 Not used --- ---
26 Not used --- ---
27 TRUNK SW Detects TRUNK SW signal With trunk lid latch switch ON: less than 0.2 V

With trunk lid latch switch OFF and body control module is wakeup mode: about battery voltage

With trunk lid latch switch OFF and body control module is sleep mode: pulse
28 RR DOOR SW Detects RR DOOR SW signal With right rear door switch ON: less than 0.2 V

With right rear door switch OFF and body control module is wakeup mode: about battery voltage

With right rear door switch OFF and body control module is sleep mode: pulse
29 Not used --- ---
30 Not used --- ---
31 Not used --- ---
32 Not used --- ---
33 Not used --- ---
34 Not used --- ---
35 S-NET Communication line ---
36 K LINE Communication line ---
37 Not used --- ---
38 AC CHG LID SNSR Detects AC CHG LID SNSR signal With charge lid switch ON: less than 0.2 V

With charge lid switch released and body control module is wakeup mode: about battery voltage

With charge lid switch released and body control module is sleep mode: pluse
39 Not used --- ---
40 Not used --- ---

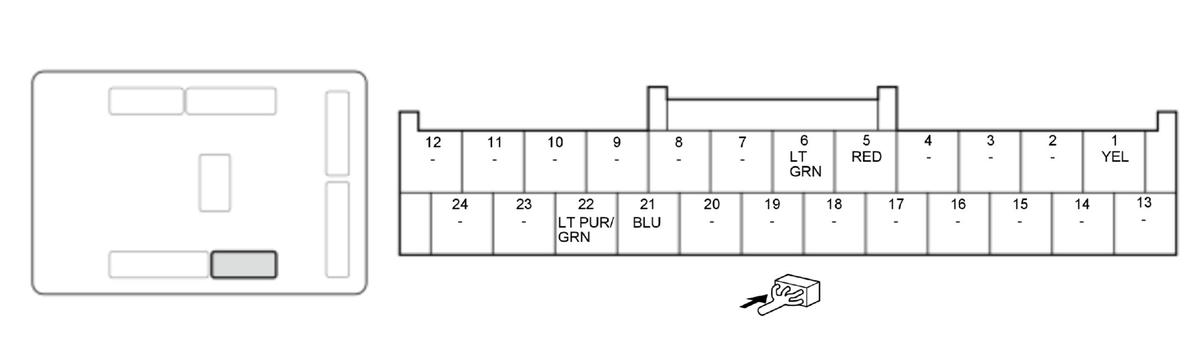

Body Control Module Connector E (24P) (female terminals)

GHH419313Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description Signal
1 IG1 FUEL PUMP IG1 power source With vehicle in ON or READY TO DRIVE mode: about battery voltage
2 Not used --- ---
3 Not used --- ---
4 Not used --- ---
5 R TURN SW Detects R TURN SW signal With right turn signal switch ON: less than 0.2 V

With right turn signal switch OFF and body control module is wakeup mode: about battery voltage

With right turn signal switch OFF and body control module is sleep mode: less than 0.2 V
6 L TURN SW Detects L TURN SW signal With left turn signal switch ON: less than 0.2 V

With left turn signal switch OFF and body control module is wakeup mode: about battery voltage

With left turn signal switch OFF and body control module is sleep mode: less than 0.2 V
7 Not used --- ---
8 Not used --- ---
9 Not used --- ---
10 Not used --- ---
11 Not used --- ---
12 Not used --- ---
13 Not used --- ---
14 Not used --- ---
15 Not used --- ---
16 Not used --- ---
17 Not used --- ---
18 Not used --- ---
19 Not used --- ---
20 Not used --- ---
21 FR WIPER INT VOL Detects FR WIPER INT VOL signal With vehicle in ON mode: about 0-5 V (depending on intermittent dwell time controller)
22 SMART BUZZER Outputs SMART BUZZER signal ---
23 Not used --- ---
24 Not used --- ---

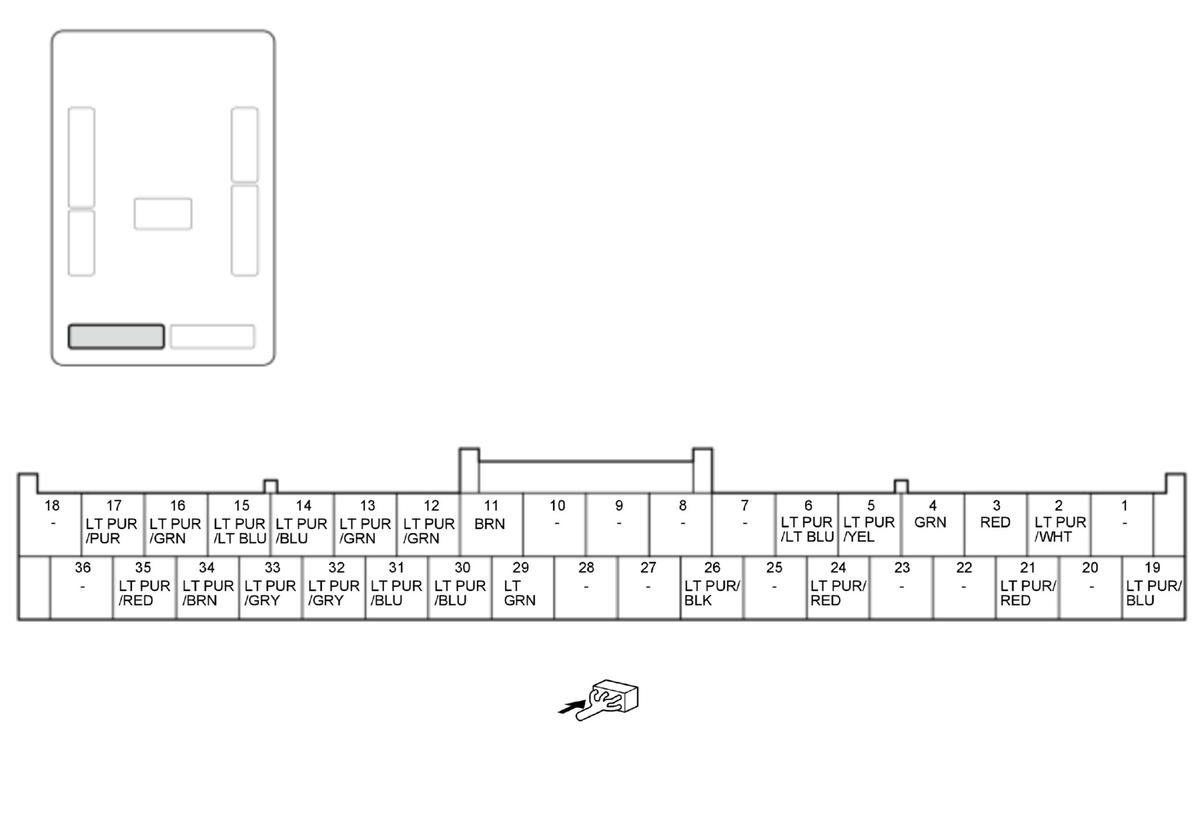

Body Control Module Connector F (36P) (female terminals)

GHH419314Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description Signal
1 Not used --- ---
2 IG1 COIL+ Outputs IG1 COIL+ signal With vehicle in ON or READY TO DRIVE mode: about battery voltage

With vehicle in OFF (LOCK) mode: less than 0.2 V
3 START SW IND1 Outputs START SW IND1 signal With power switch light (RED) OFF: about battery voltage

With power switch light (RED) ON: less than 0.2 V
4 START SW ILL Outputs START SW ILL signal With power switch light (WHT) OFF: about battery voltage

With power switch light (WHT) ON: less than 0.2 V
5 TCU WAKE UP Detects TCU WAKE UP signal ---
6 STC Outputs STC signal ---
7 Not used --- ---
8 Not used --- ---
9 Not used --- ---
10 Not used --- ---
11 SSSW LF ANT+ Outputs SSSW LF ANT+ signal ---
12 EXT FR AS+ Outputs EXT FR AS+ signal ---
13 EXT FR DR+ Outputs EXT FR DR+ signal ---
14 EXT TR+ Outputs EXT TR+ signal ---
15 EXT R+ Outputs EXT R+ signal ---
16 EXT F+ Outputs EXT F+ signal ---
17 EXT M+ Outputs EXT M+ signal ---
18 Not used --- ---
19 RF DATA1 Detects RF DATA1 signal ---
20 Not used --- ---
21 L-LINE Communication line ---
Terminal number Terminal name Description Signal
22 Not used --- ---
23 Not used --- ---
24 RF VCC1 Detects RF VCC1 signal ---
25 Not used --- ---
26 RF GND Ground for RF unit Less than 0.2 V at all times
27 Not used --- ---
28 Not used --- ---
29 SSSW LF ANT- Outputs SSSW LF ANT- signal ---
30 EXT FR AS- Outputs EXT FR AS- signal ---
31 EXT FR DR- Outputs EXT FR DR- signal ---
32 EXT TR- Outputs EXT TR- signal ---
33 EXT R- Outputs EXT R- signal ---
34 EXT F- Outputs EXT F- signal ---
35 EXT M- Outputs EXT M- signal ---
36 Not used --- ---

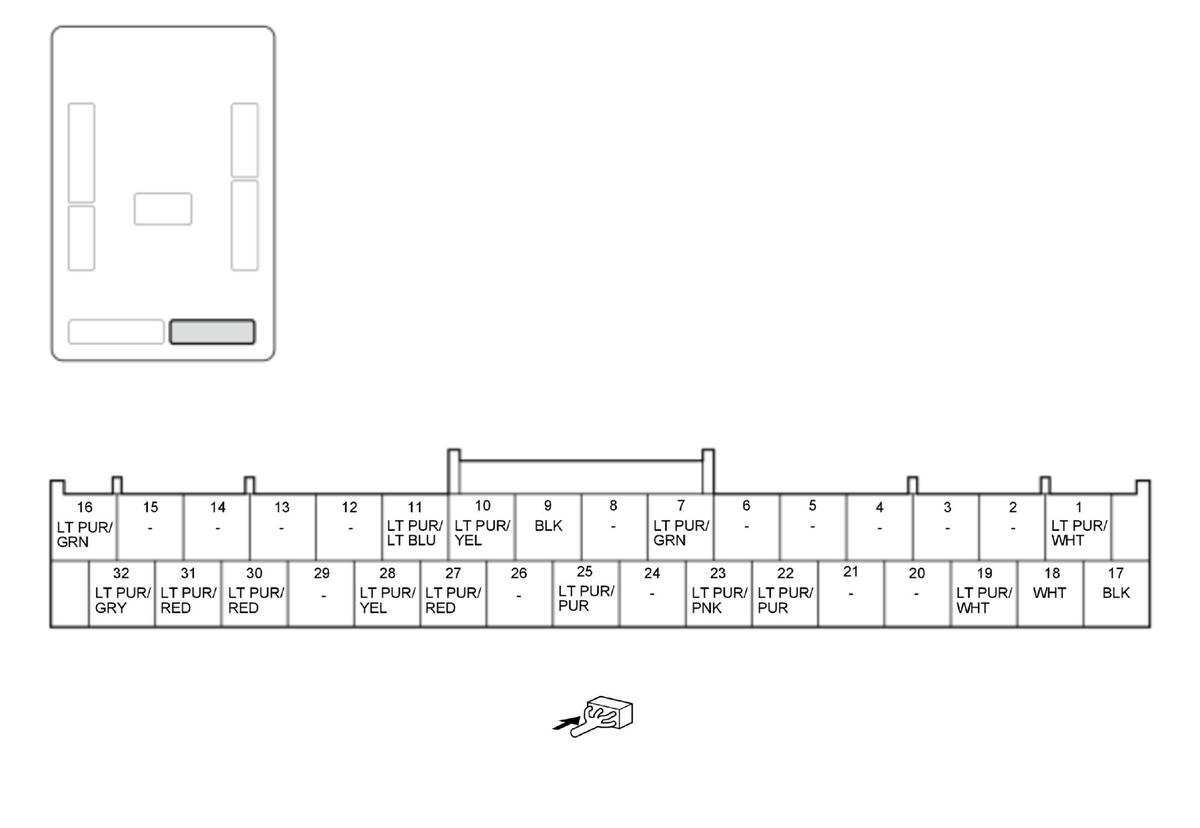

Body Control Module Connector G (32P) (female terminals)

GHH419315Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description Signal
1 DL FR AS Detects DL FR AS signal ---
2 Not used --- ---
3 Not used --- ---
4 Not used --- ---
5 Not used --- ---
Terminal number Terminal name Description Signal
6 Not used --- ---
7 SRKS Detects SRKS signal ---
8 Not used --- ---
9 SS2(-) Detects SS2(-) signal ---
10 IG1-B SIG Detects IG1-B SIG signal With vehicle in ON or READY TO DRIVE mode: about battery voltage
11 IG2 SIG Detects IG2 SIG signal With vehicle in ON mode: about battery voltage
12 Not used --- ---
13 Not used --- ---
14 Not used --- ---
15 Not used --- ---
16 ACC RLY CL+ Outputs ACC RLY CL+ signal With vehicle in ACCESSORY or ON mode: about battery voltage

With vehicle in OFF (LOCK) mode: less than 0.2 V
17 GND Ground for IG1A/IG1B/IG2/ACC relay circuits Less than 0.2 V at all times
18 SS1(+) Detects SS1(+) signal Power switch pressed: about battery voltage

Power switch released: less than 0.2 V
19 DL FR DR Detects DL FR DR signal ---
20 Not used --- ---
21 Not used --- ---
22 TS FR DR Detects TS FR DR signal ---
23 H/BRAKE SW Detects H/BRAKE SW signal ---
24 Not used --- ---
25 TS FR AS Detects TS FR AS signal ---
26 Not used --- ---
27 IG1-A SIG Detects IG1-A SIG signal With vehicle in ON or READY TO DRIVE mode: about battery voltage
28 IGNTRX Communication line ---
29 Not used --- ---
30 VOUT FR AS Detects VOUT FR AS signal ---
31 VOUT FR DR Detects VOUT FR DR signal ---
32 IG2 COIL+ Outputs IG2 COIL+ signal With vehicle in ON mode: about battery voltage

With vehicle in OFF (LOCK) mode: less than 0.2 V
scientia non olet · About LEMON Manuals
