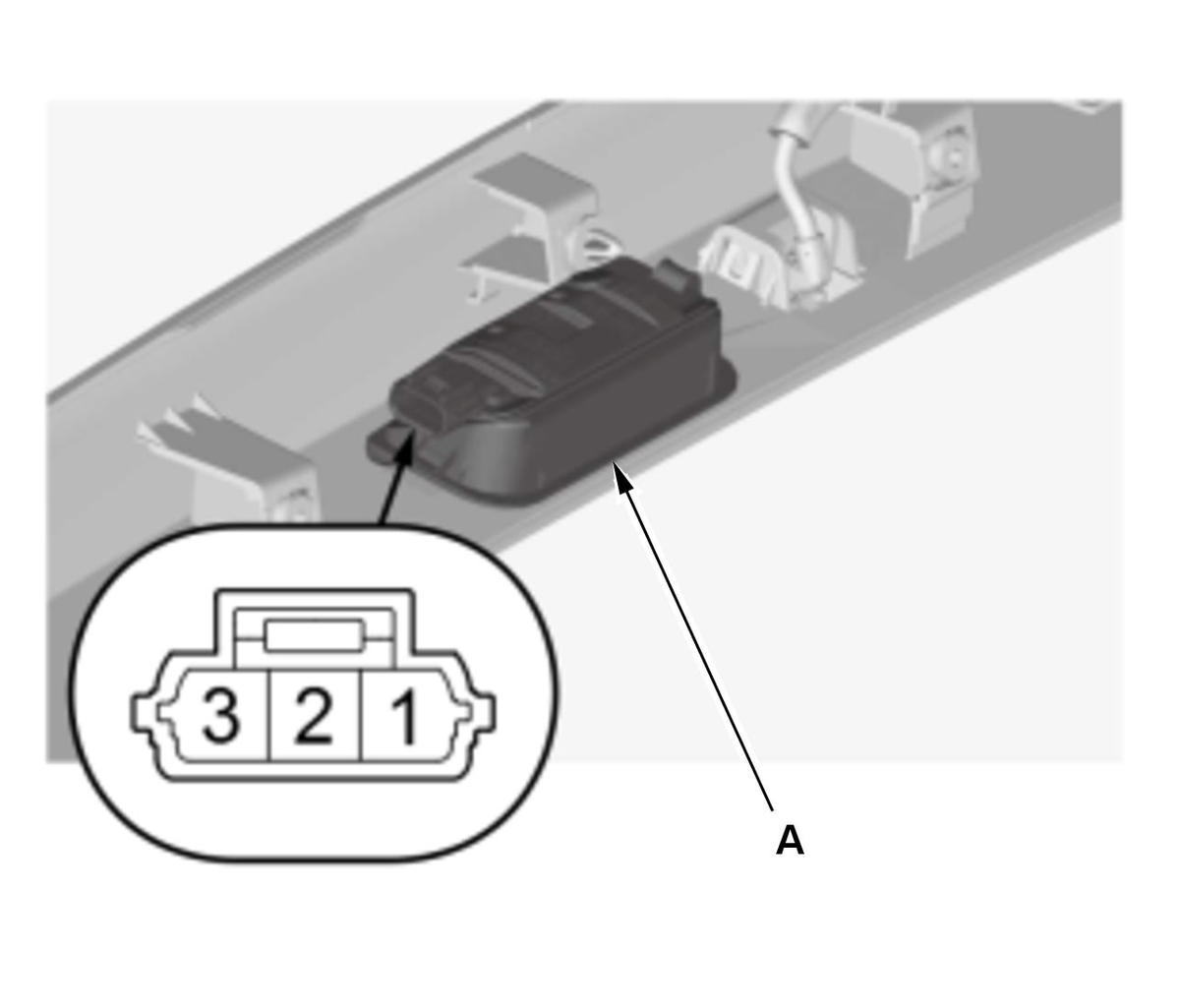

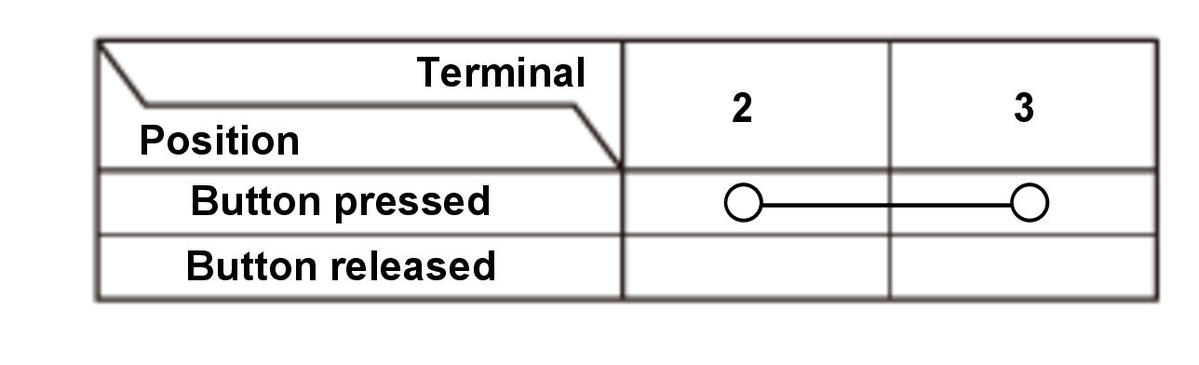

1. Check for continuity between the terminals in each switch position according to the table. 2. If the continuity is not as specified, replace the trunk lid outer handle switch (A).
|
