Basic Control
The audio-navigation unit outputs the power source (CAMERA VCC) to the rearview camera under some conditions:
- Turn the vehicle to the ACCESSORY mode.
- If the audio-navigation unit does not detect the BACK LT signal for 5 minutes, the audio-navigation unit cancels outputting the power source to the rearview camera.
- Detecting the BACK LT signal (when the gear position is shifted to R position/mode).
- If the audio-navigation unit does not detect the BACK LT signal for 5 minutes after cancelling the rearview mode, the audio-navigation unit cancels outputting the power source to the rearview camera.
- When using the Rear Camera diagnosis in the System Diagnostic Mode.

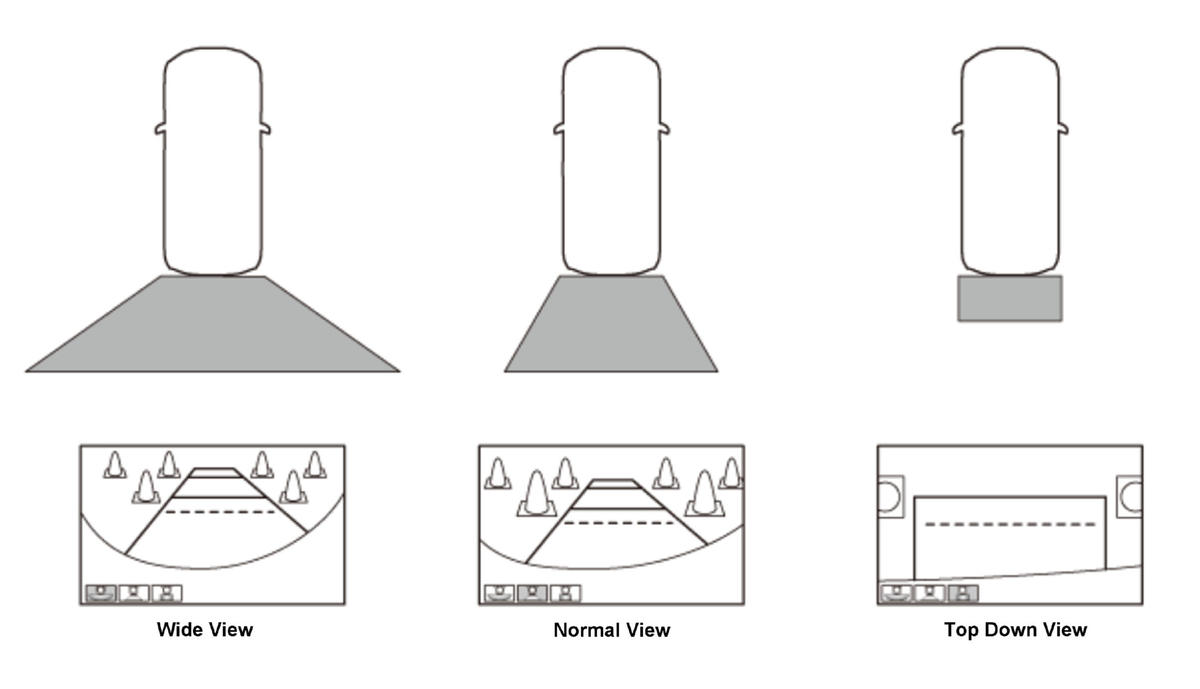

When the audio unit detects the BACK LT signal for at least 0.3 seconds, the audio unit turns on the rearview camera image. The display delays for 0.3 seconds to prevent changing the screen image too frequently because of incorrect shift position/mode selection. You can change the view mode by touching the mode icon.
While displaying the rearview image, the LaneWatch function can not be used because it can be misunderstood as the rearview image.
