HOW TO START LaneWatch CAMERA AIMING: Procedure

NOTE: Do not use this procedure before setting the LaneWatch camera aiming marker .

LaneWatch Camera Aiming - Start
1. Do the LaneWatch camera aiming marker preparation

2. Turn the vehicle to the ON mode.

3. Press and hold the MENU button, the DISPLAY MODE ( ) button, and the AUDIO POWER ( ) button until the Select Diagnosis Items menu screen is displayed.

NOTE: The buttons needs to be pressed together simultaneously.

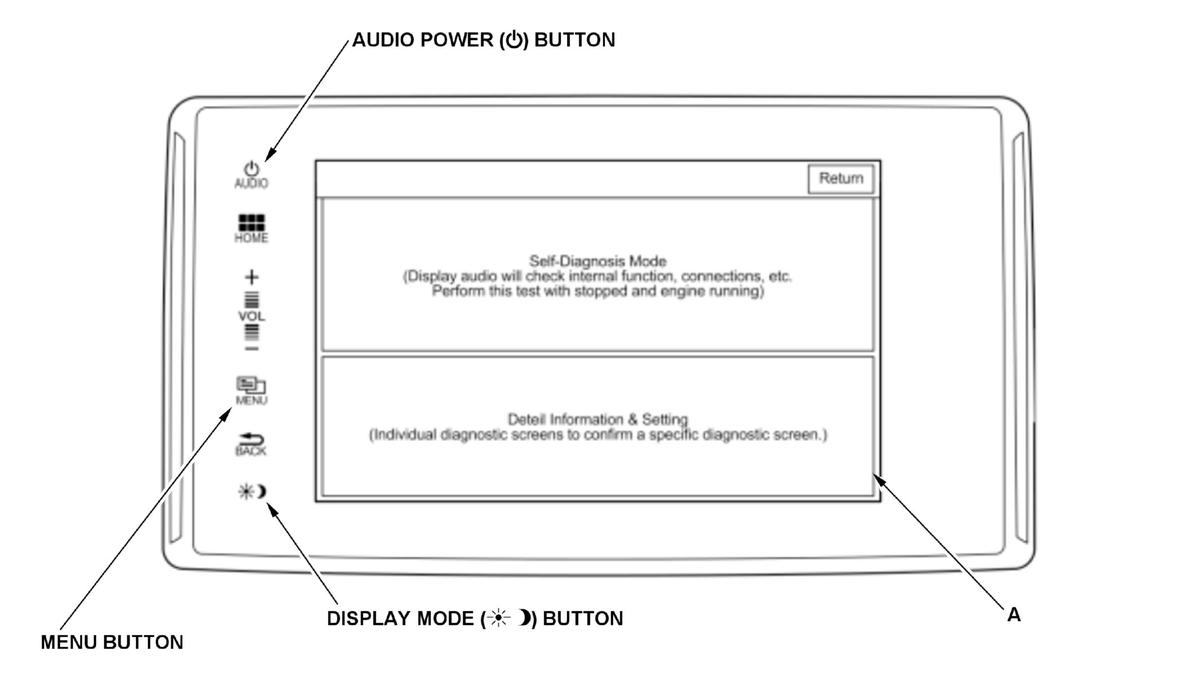

Displaying Select Diagnosis Items Menu Screen

Courtesy of HONDA, U.S.A., INC.

4. When the Select Diagnosis Items menu appears, select the Detail Information and Setting (A).

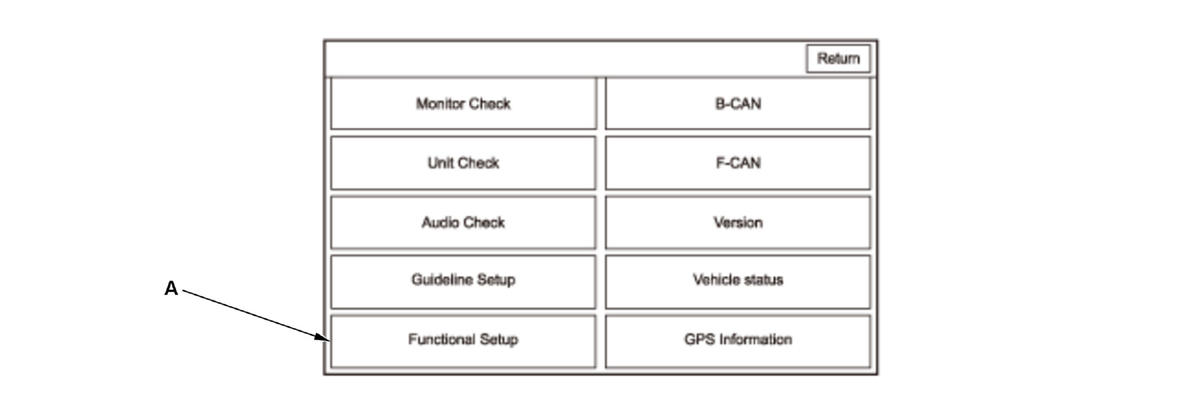

5. Select the Functional Setup icon (A).

Courtesy of HONDA, U.S.A., INC.

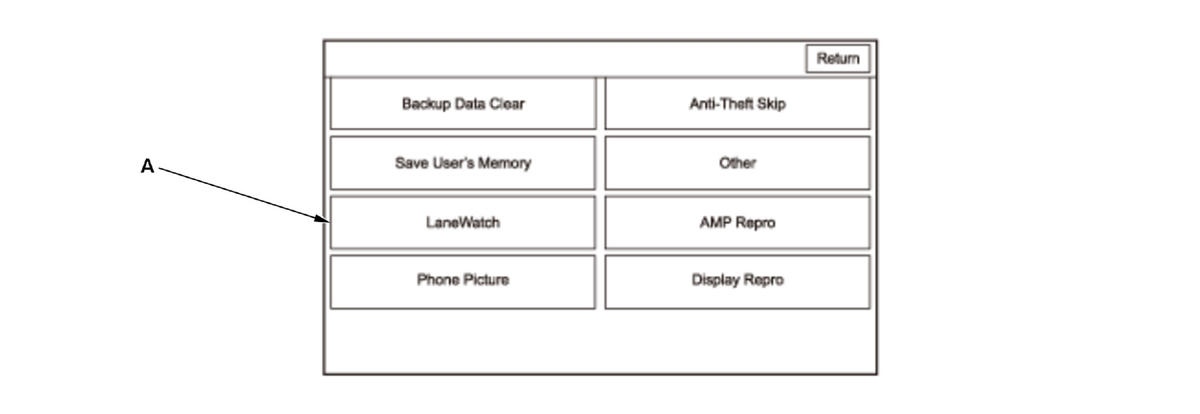

6. Select the LaneWatch icon (A).

Courtesy of HONDA, U.S.A., INC.

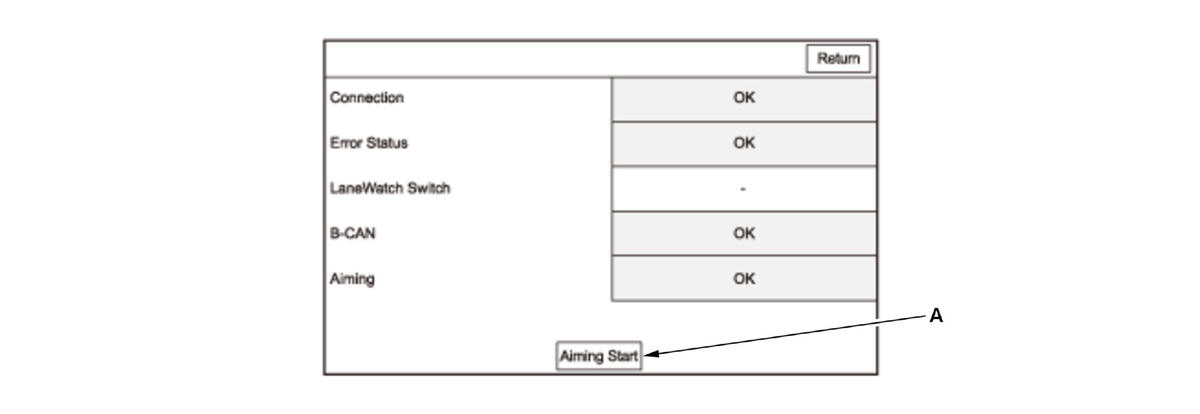

7. Select the Aiming Start icon (A).

Courtesy of HONDA, U.S.A., INC.
