LANEWATCH - System Diagram

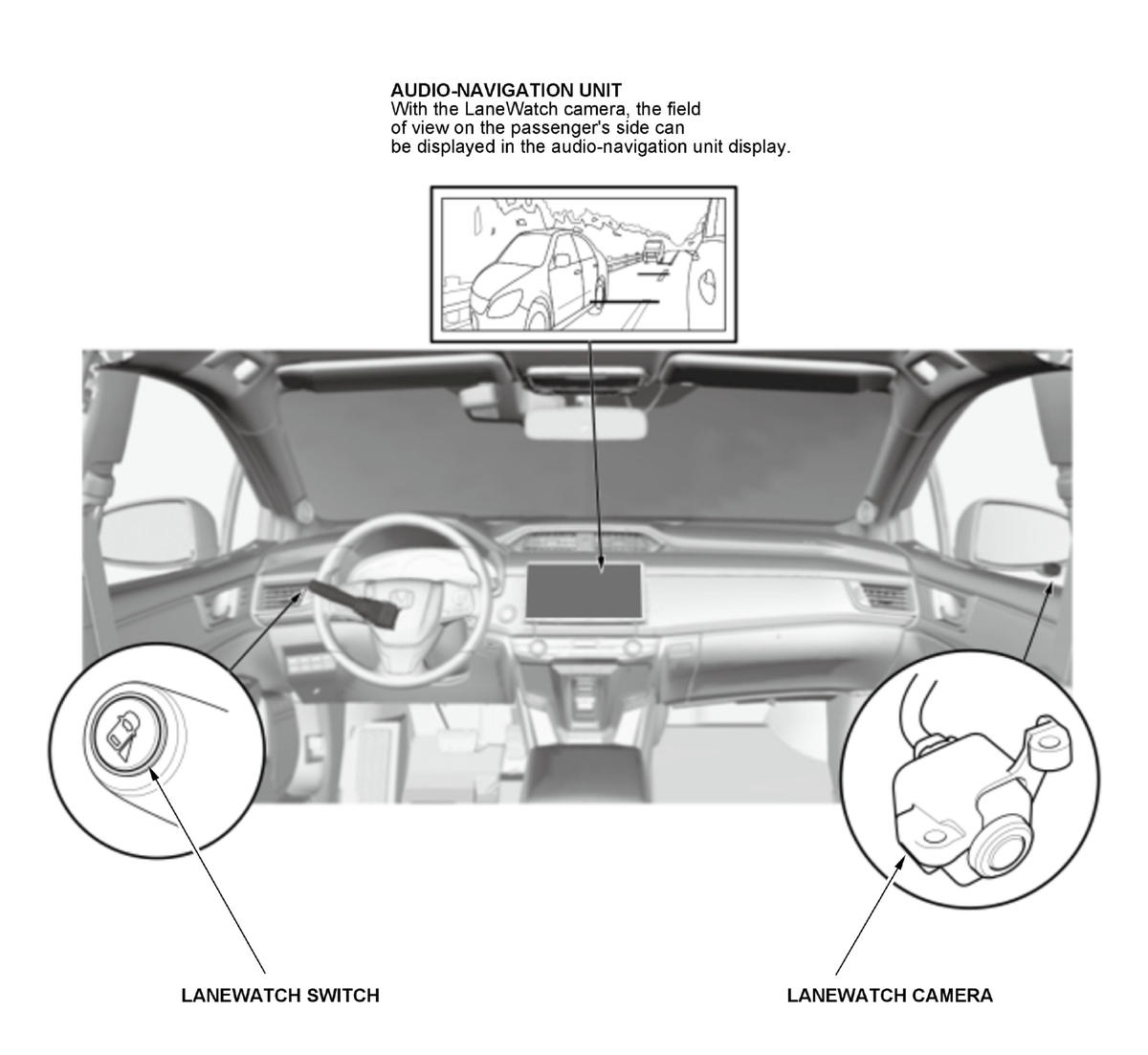

LaneWatch Camera

The LaneWatch reduces blind spots on the passenger's side with the image of the LaneWatch camera installed in the power mirror on the passenger's side. The image of the LaneWatch camera is displayed in the audio-navigation unit display when the turn signal switch is turned to the left or the LaneWatch switch is pressed. The LaneWatch obtains information from external sensors and the switches connected to each control unit.

Courtesy of HONDA, U.S.A., INC.

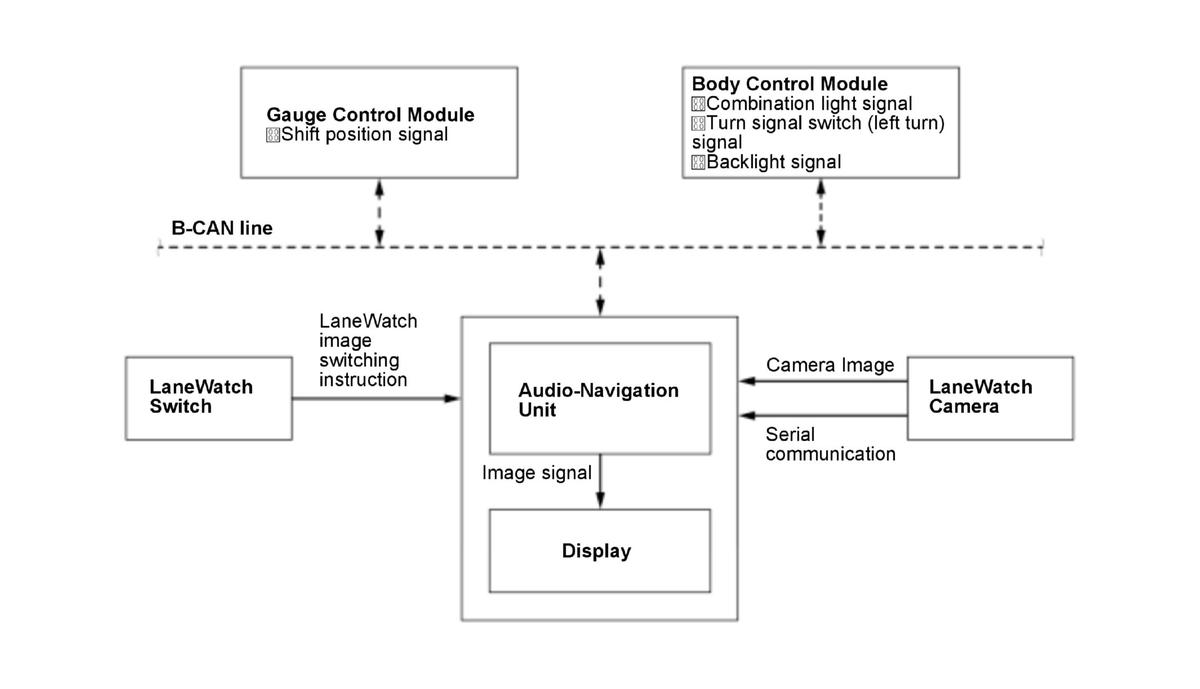

LaneWatch System Diagram

For locations of each component on vehicle, refer to Component Location Index:

Courtesy of HONDA, U.S.A., INC.

The system diagram of the LaneWatch system is shown below.

• Gauge Control Module
• Body Control Module
• Audio-Navigation unit
