Door Key Cylinder Switch: Test

  1. Driver's Door Panel - Remove
  2. Driver's Door Key Cylinder Switch - Test

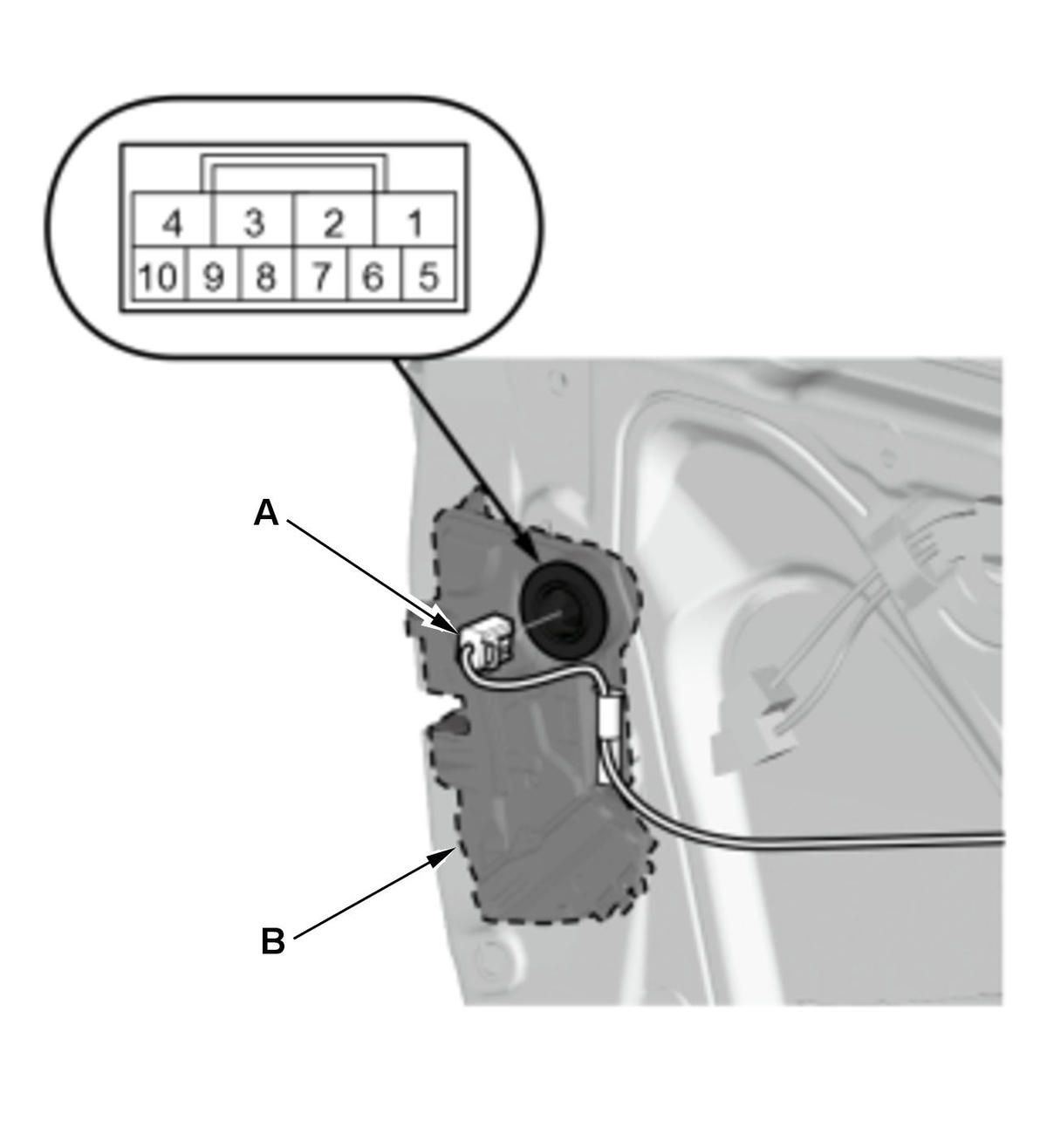

    GHH420367GHH420368Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

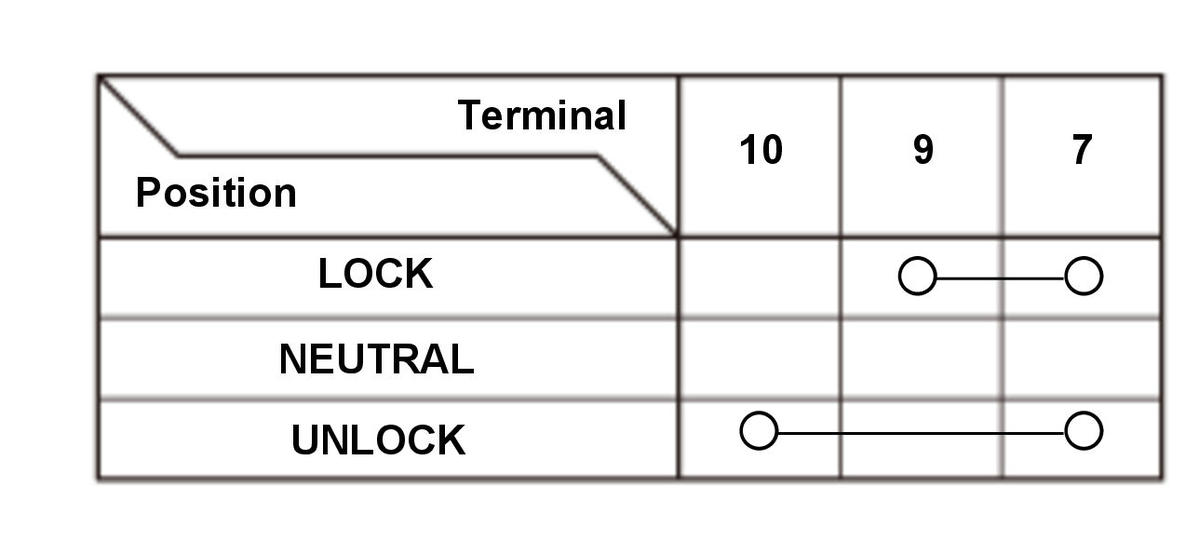

    GHH420367GHH420368Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

    2. Check for continuity between the terminals in each switch position according to the table.

    3. If the continuity is not as specified, the driver's door key cylinder switch is faulty; replace the driver's door latch

    (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
