DTC Advanced Diagnostics: P0BFD (30)

DTC P0BFD (30):  Traction Motor Phase U-V-W Current Sensor Correlation

General Description

Courtesy of HONDA, U.S.A., INC.

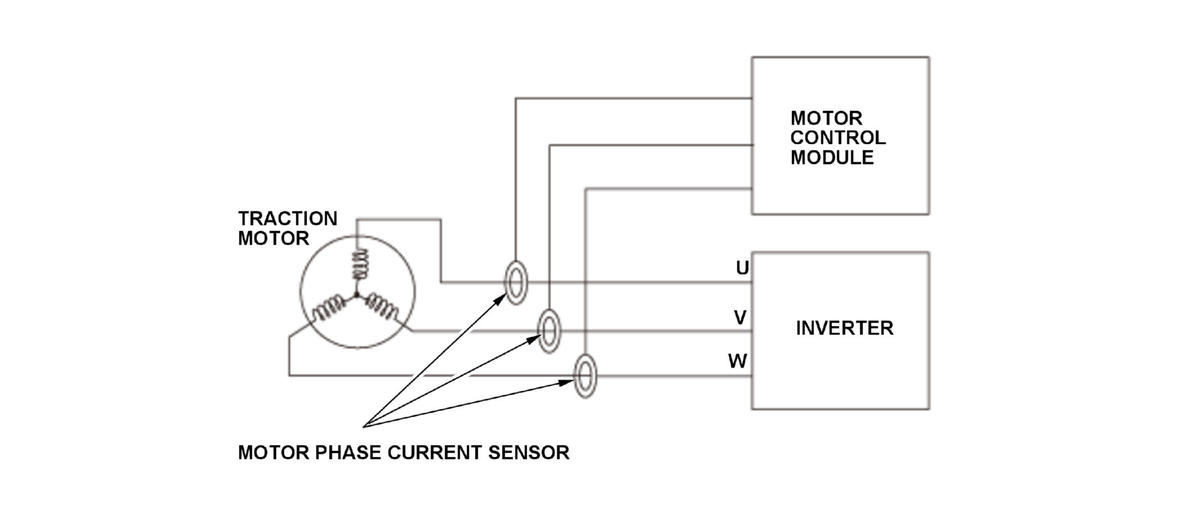

The motor control module controls a motor output based on the signal from the motor phase current sensors. When the phase motor current sensor malfunction and stuck occur, the output torque of the motor may be controlled improperly. The motor control module monitors the sum of the three phase motor current (IUPHM, IVPHM, and IWPHM) sensors at regular intervals (5 milliseconds), and when it deviates from the specified range (+90 A to -90 A), 10 is added to the counter. Conversely, when it is in the specified range, 1 is subtracted from the counter. When the counter exceeds a specified amount, a malfunction of the motor phase current sensors is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type

Enable Conditions

Malfunction Threshold

The sum of the counter value is 1, 000 or more.

Possible Cause

NOTE:  The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

• Motor phase current sensor failure
• Motor control module failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the motor control module memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on, the POWER SYSTEM indicator comes on and a Confirmed DTC and the freeze data are stored in the motor control module memory.

Conditions for clearing the DTC

The MIL and the POWER SYSTEM indicator is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the POWER SYSTEM indicator, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
