DTC U0047

DTC U0047: F-CAN Malfunction For The Second Channel (BUS-OFF (Powertrain Control Module (PCM)))

General Description

Courtesy of HONDA, U.S.A., INC.

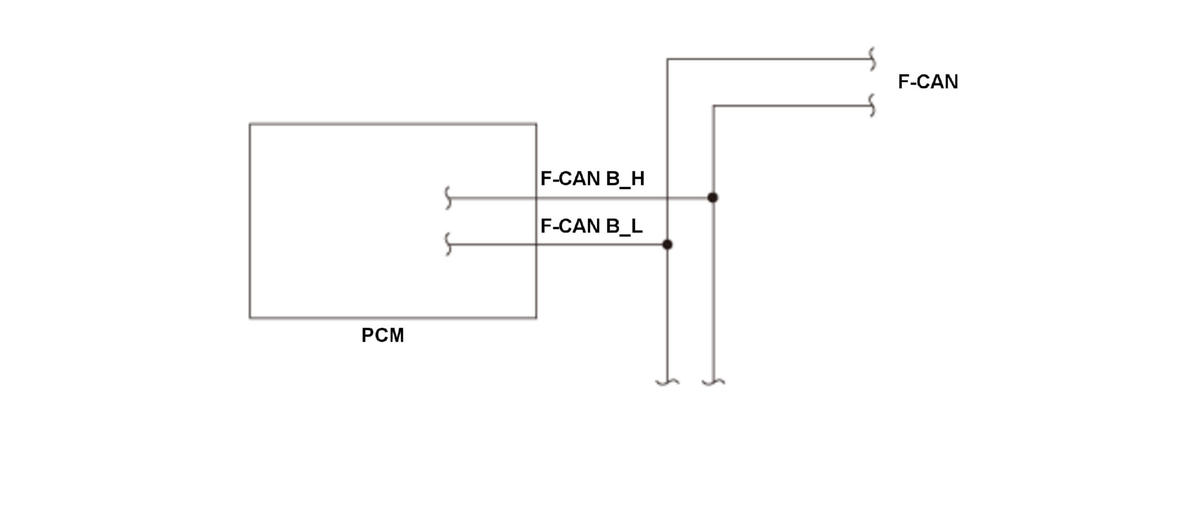

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using F-CAN B_H and F-CAN B_L signal lines. When the powertrain control module (PCM) does not receive the signals via the F-CAN lines for a set time, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	1 second or more
DTC Type	One drive cycle, MIL on

Enable Conditions

Condition	Minimum	Maximum
12 volt battery voltage [Battery]	10.0 V	-

[ ]: HDS Parameter

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

F-CAN circuit F-CAN B_H line open
F-CAN circuit F-CAN B_L line open
F-CAN circuit F-CAN B_H line short to ground
F-CAN circuit F-CAN B_L line short to ground
PCM internal circuit failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
