DTC U160B: F-CAN Malfunction (Powertrain Control Module (PCM)-SBW Shifter)

General Description

Courtesy of HONDA, U.S.A., INC.

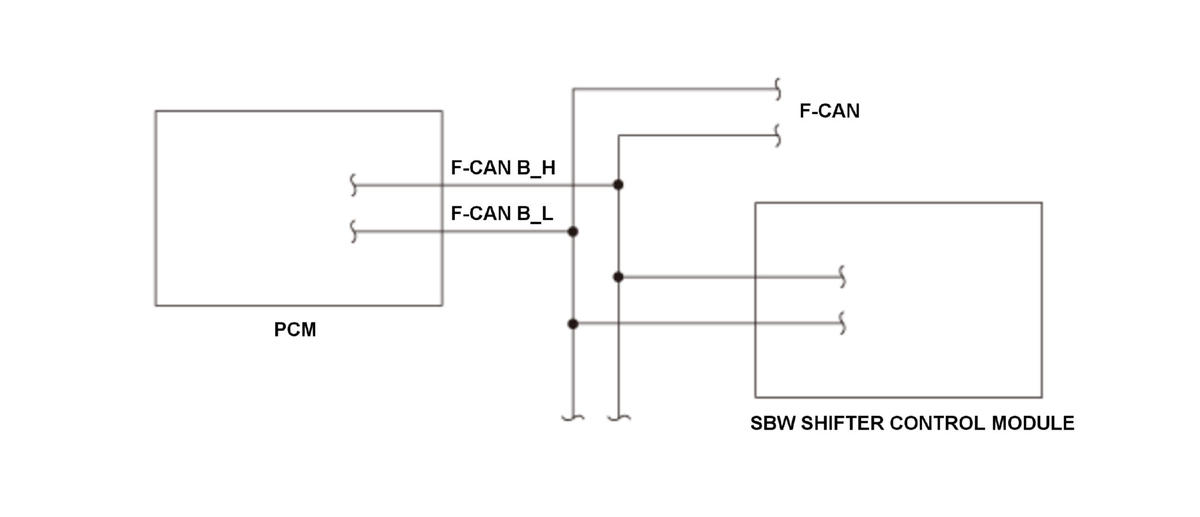

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (H line and L line). When the information is not sent from the SBW shifter control module via the F-CAN lines and this condition continues for a specified time or when the information sent from the SBW shifter control module is abnormal and this condition continues for a specified cycle, the powertrain control module (PCM) detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	1.5 seconds or more
DTC Type	One drive cycle, MIL on

Enable Conditions

Condition	Minimum	Maximum
12 volt battery voltage [Battery]	10.0 V	-

[ ]: HDS Parameter

Malfunction Threshold

One of these conditions is met:

The PCM does not receive any signals via the F-CAN lines for at least 1.5 second.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

F-CAN circuit F-CAN B_H line open
F-CAN circuit F-CAN B_L line open
F-CAN circuit F-CAN B_H line short to ground
F-CAN circuit F-CAN B_L line short to ground
SBW shifter control module failure (include fuse fall-outs)
PCM internal circuit failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
