DTC P0138 (2018 2019)
DTC P0138 : Secondary HO2S (Sensor 2) Circuit High Voltage
| DTC Description | Confirmed DTC | Pending DTC |
|---|---|---|
| P0138 Secondary HO2S (Sensor 2) Circuit High Voltage |
DTC (PGM-FI)
- Problem verification
-1. Turn the vehicle to the ON mode.
-2. Clear the DTC with the HDS.
-3. Turn the vehicle to the OFF (LOCK) mode.
-4. Enter the maintenance mode, then start the engine .
-5. Hold the engine speed at 3, 000 RPM without load (in P or N) until the radiator fan comes on, then let it idle.
-6. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit HO2S S2 More than 3.28 V Data List
Do the current condition(s) match the threshold?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at secondary HO2S (Sensor 2) and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .
- Determine possible failure area (secondary HO2S (Sensor 2), others)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.

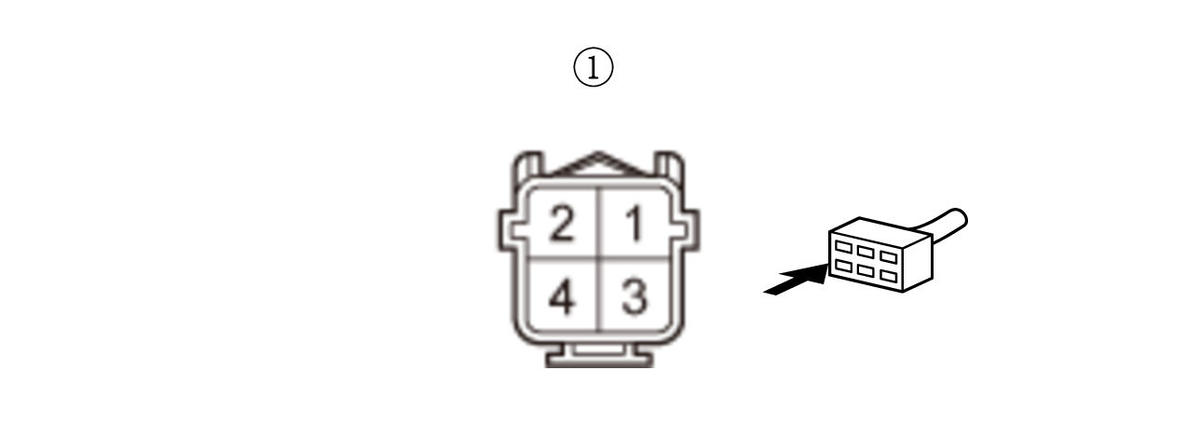

Secondary HO2S (Sensor 2) 4P connector -3. Connect terminals A and B with a jumper wire.
Terminal A Secondary HO2S (Sensor 2) 4P connector (male terminals) No. 1: Terminal B Secondary HO2S (Sensor 2) 4P connector (male terminals) No. 2: -4. Turn the vehicle to the ON mode.
-5. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit HO2S S2 More than 3.28 V Data List
Do the current condition(s) match the threshold?
YES
Go to step 3.
NO
- Open wire check (SO2 SG line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Remove the jumper wire from the secondary HO2S (Sensor 2) 4P connector.
-3. Connect terminals A and B with a jumper wire.
Terminal A Secondary HO2S (Sensor 2) 4P connector (male terminals) No. 1: Terminal B Body ground -4. Turn the vehicle to the ON mode.
-5. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit HO2S S2 More than 3.28 V Data List
Do the current condition(s) match the threshold?
YES
The SO2 SG wire is OK. Go to step 4.
NO
Go to step 5.
- Open wire check (SO2 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS, and wait more than 1 minute.
-3. Disconnect the following connector.
PCM connector A (50P) -4. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Secondary HO2S (Sensor 2) 4P connector: disconnected Secondary HO2S (Sensor 2) 4P connector No. 1: jumped to body ground PCM connector A (50P): disconnected Test point 1 PCM connector A (50P) No. 47 Test point 2 Body ground Is there continuity?
YES
The SO2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0138 goes away and the PCM was substituted, replace the original PCM .
NO
Repair an open in the SO2 wire between the PCM (A47) and secondary HO2S (Sensor 2).
- Open wire check (SO2 SG line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Remove the jumper wire from the secondary HO2S (Sensor 2) 4P connector.
-3. Connect terminals A and B with a jumper wire.
Terminal A Secondary HO2S (Sensor 2) 4P connector (male terminals) No. 2: Terminal B Body ground -4. Jump the SCS line with the HDS, and wait more than 1 minute.
-5. Disconnect the following connector.
PCM connector A (50P) -6. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Secondary HO2S (Sensor 2) 4P connector: disconnected Secondary HO2S (Sensor 2) 4P connector No. 2: jumped to body ground PCM connector A (50P): disconnected Test point 1 PCM connector A (50P) No. 48 Test point 2 Body ground Is there continuity?
YES
The SO2 SG wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0138 goes away and the PCM was substituted, replace the original PCM .
NO
Repair an open in the SO2 SG wire between the PCM (A48) and secondary HO2S (Sensor 2).
