DTC P2413
DTC P2413 : EGR System Malfunction
| DTC Description | Confirmed DTC | Pending DTC |
|---|---|---|
| P2413 EGR System Malfunction |
DTC (PGM-FI)
- Problem verification
-1. Turn the vehicle to the ON mode.
-2. Clear the DTC with the HDS.
-3. Turn the vehicle to the OFF (LOCK) mode.
-4. Enter the maintenance mode, then start the engine .
-5. Hold the engine speed at 3, 000 RPM without load (in P or N) until the radiator fan comes on, then let it idle.
-6. Do the EGR TEST in the Function Test Menu with the HDS.
EGR TEST
Is the result OK?
YES
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the EGR valve and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .
NO
The failure is duplicated. Go to step 2.
- Determine possible failure area (EGR valve position sensor, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Turn the vehicle to the ON mode.
-3. Check the parameter(s) below with the HDS.
Signal Threshold Current DTC Values Unit Values Unit EGR Valve Position Sensor (EGR Vls) about 0 V Data List
Do the current condition(s) match the threshold?
YES
Go to step 3.
NO
Go to step 7.
- Determine possible failure area (VCC2 line, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.
EGR valve 5P connector -3. Turn the vehicle to the ON mode.
-4. Measure the voltage between test points 1 and 2.

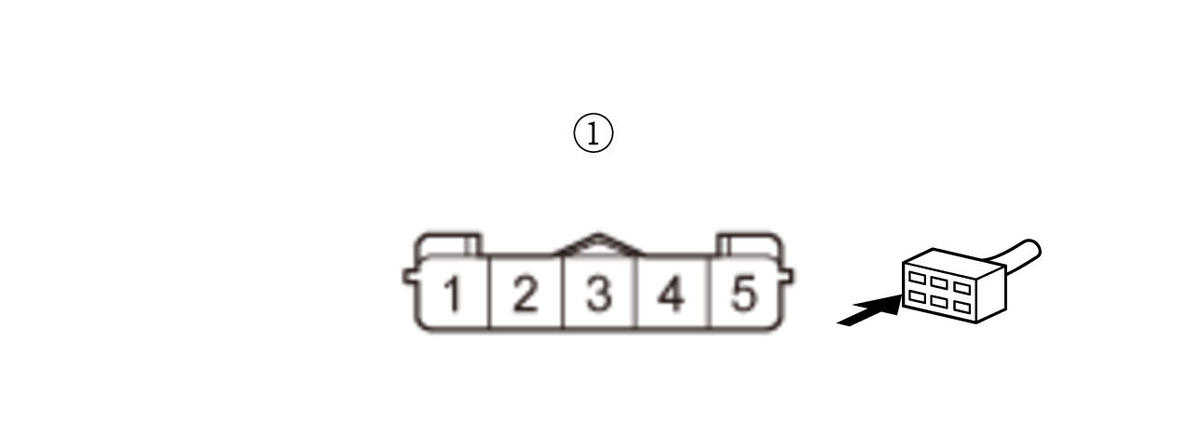

Test condition Vehicle ON mode EGR valve 5P connector: disconnected Test point 1 EGR valve 5P connector (female terminals) No. 2: Test point 2 Body ground Is there about 5.0 V?
YES
Go to step 5.
NO
Go to step 4.
- Open wire check (VCC2 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS, and wait more than 1 minute.
-3. Disconnect the following connector.
PCM connector E (80P) -4. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode EGR valve 5P connector: disconnected PCM connector E (80P): disconnected Test point 1 EGR valve 5P connector (female terminals) No. 2: Test point 2 PCM connector E (80P) No. 77 Is there continuity?
YES
The VCC2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P2413 goes away and the PCM was substituted, replace the original PCM .
NO
Repair an open in the VCC2 wire between the PCM (E77) and the EGR valve.
- Shorted wire check (EGRL line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS, and wait more than 1 minute.
-3. Disconnect the following connector.
PCM connector E (80P) -4. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode EGR valve 5P connector: disconnected PCM connector E (80P): disconnected Test point 1 EGR valve 5P connector (female terminals) No. 4: Test point 2 Body ground Is there continuity?
YES
Repair a short in the EGRL wire between the PCM (E69) and the EGR valve.
NO
The EGRL wire is not shorted. Go to step 6.
- Open wire check (EGRL line)
-1. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode EGR valve 5P connector: disconnected PCM connector E (80P): disconnected Test point 1 EGR valve 5P connector (female terminals) No. 4: Test point 2 PCM connector E (80P) No. 69 Is there continuity?
YES
The EGRL wire is OK. Go to step 7.
NO
Repair an open in the EGRL wire between the PCM (E69) and the EGR valve.
- EGR valve position sensor internal circuit check 1
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. If not already done, disconnect the following connector.
EGR valve 5P connector -3. At the EGR valve side, measure the resistance between test points 1 and 2.

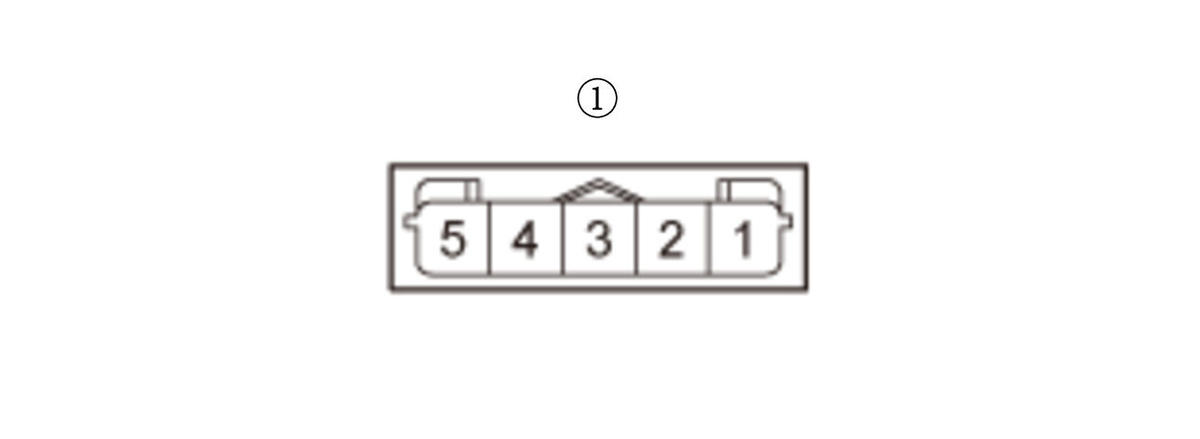

Test condition Vehicle OFF (LOCK) mode EGR valve 5P connector: disconnected Test point 1 EGR valve 5P connector (male terminals) No. 3 (valve side): Test point 2 EGR valve 5P connector (male terminals) No. 4 (valve side): Is there 100 kΩ or more?
YES
NO
Go to step 8.
- EGR valve position sensor internal circuit check 2
-1. At the EGR valve side, measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode EGR valve 5P connector: disconnected Test point 1 EGR valve 5P connector (male terminals) No. 2 (valve side): Test point 2 EGR valve 5P connector (male terminals) No. 4 (valve side): Is there 100 kΩ or more?
YES
NO
Go to step 9.
- Shorted wire check (EEGR line)
-1. Jump the SCS line with the HDS, and wait more than 1 minute.
-2. If not already done, disconnect the following connector.
PCM connector E (80P) -3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode EGR valve 5P connector: disconnected PCM connector E (80P): disconnected Test point 1 EGR valve 5P connector (female terminals) No. 5: Test point 2 Body ground Is there continuity?
YES
Repair a short in the EEGR wire between the PCM (E10) and the EGR valve.
NO
The EEGR wire is not shorted. Go to step 10.
- Open wire check (EEGR line)
-1. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode EGR valve 5P connector: disconnected PCM connector E (80P): disconnected Test point 1 EGR valve 5P connector (female terminals) No. 5: Test point 2 PCM connector E (80P) No. 10 Is there continuity?
YES
The EEGR wire is OK. Go to step 11.
NO
Repair an open in the EEGR wire between the PCM (E10) and the EGR valve.
- Open wire check (PG line)
-1. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode EGR valve 5P connector: disconnected PCM connector E (80P): disconnected Test point 1 EGR valve 5P connector (female terminals) No. 1: Test point 2 Body ground Is there continuity?
YES
The PG wire is OK. Go to step 12.
NO
Repair an open in the PG wire between the EGR valve and G102.
- EGR valve operation check
-1. Reconnect the following connector.

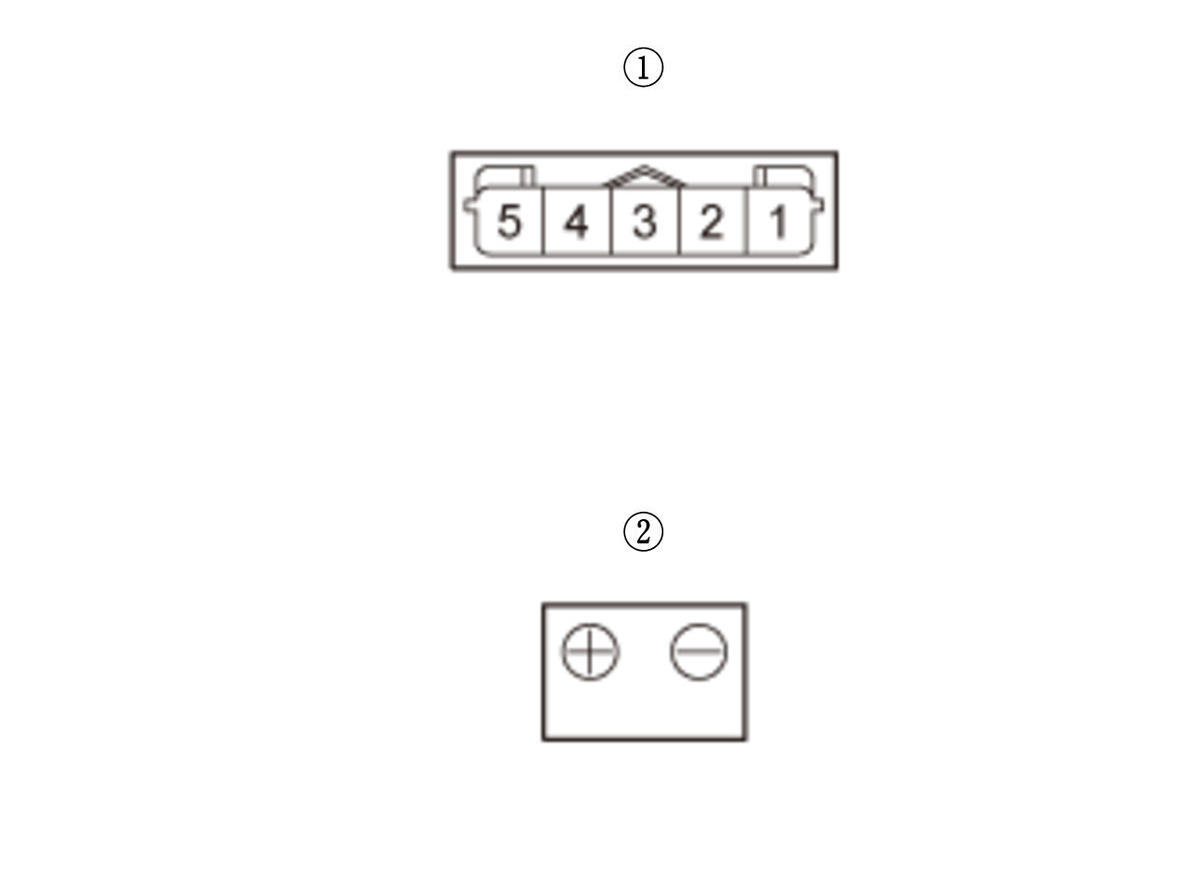

PCM connector E (80P) -2. At the EGR valve side, connect terminals A and B with a jumper wire.
Terminal A EGR valve 5P connector (male terminals) No. 5 (valve side): Terminal B 12 volt battery positive terminal: -3. Exit the SCS mode with the HDS.
-4. Enter the maintenance mode, then start the engine , and let it idle.
-5. At the EGR valve side, connect terminals A and B with a jumper wire.
Terminal A EGR valve 5P connector (male terminals) No. 1 (valve side): Terminal B 12 volt battery negative terminal: Does the engine stall or run roughly?
YES
Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P2413 goes away and the PCM was substituted, replace the original PCM .
NO
Go to step 13.
- EGR port and passage cleaning
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Remove the EGR valve .
-3. Clean the intake manifold EGR port and the passage inside the EGR valve with throttle plate cleaner.
-4. Install the EGR valve .
-5. Reconnect all connectors.
-6. Turn the vehicle to the ON mode.
-7. Reset the PCM with the HDS .
Reset PCM
-8. Do the EGR TEST in the Function Test Menu with the HDS.
EGR TEST
Is the result OK?
YES
The failure is not duplicated. The troubleshooting is complete.
NO
