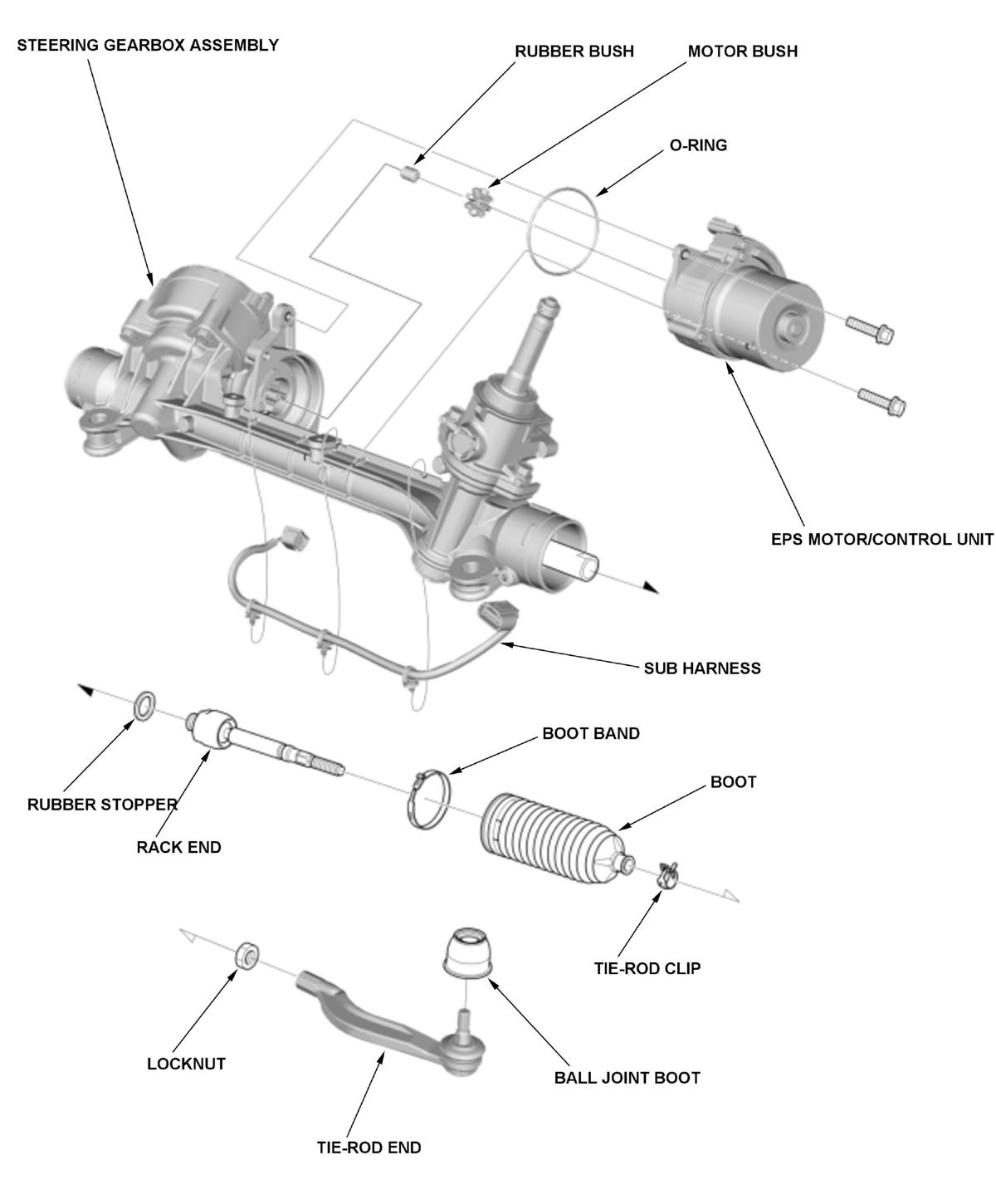

Exploded View

NOTE:

• For these operations, refer to the complete procedure as needed:
• 1. -

     Rack end removal and installation

  2. -

     Tie-rod end ball joint boot replacement

  3. -

     EPS Motor/Control Unit Removal and Installation

• Check for deterioration and damage to each part during removal.
