Steering System - Service Information (Plug-In)
>>
Disassembly and Reassembly
>>
Steering Wheel Disassembly and Reassembly
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

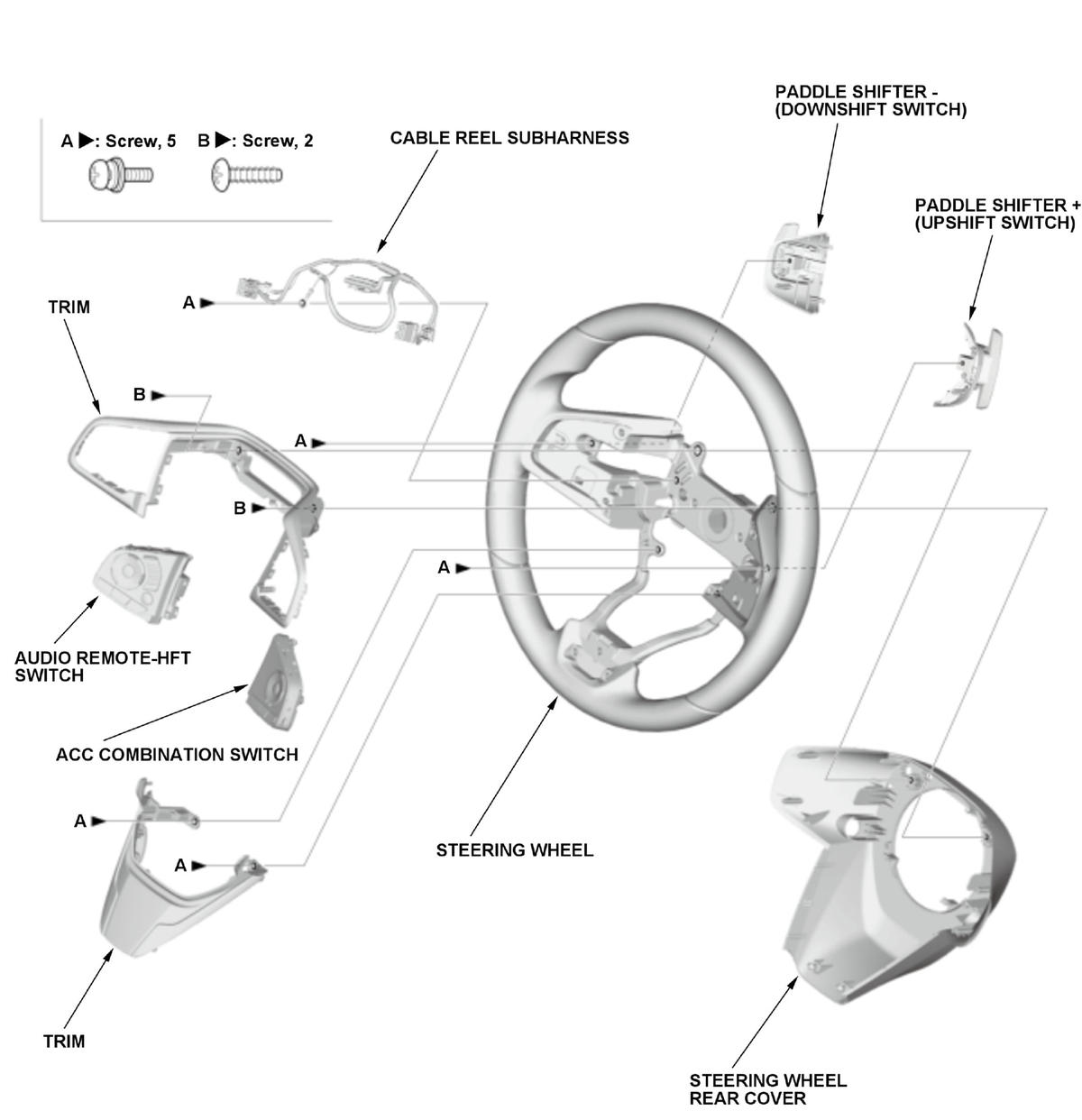

Exploded View
Steering Wheel
Exploded view
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
