EPS Motor/Control Unit Removal and Installation: Removal

NOTE: How to read the torque specifications .

1. Steering Gearbox - Remove
2. EPS Motor/Control Unit - Remove

   Courtesy of HONDA, U.S.A., INC.

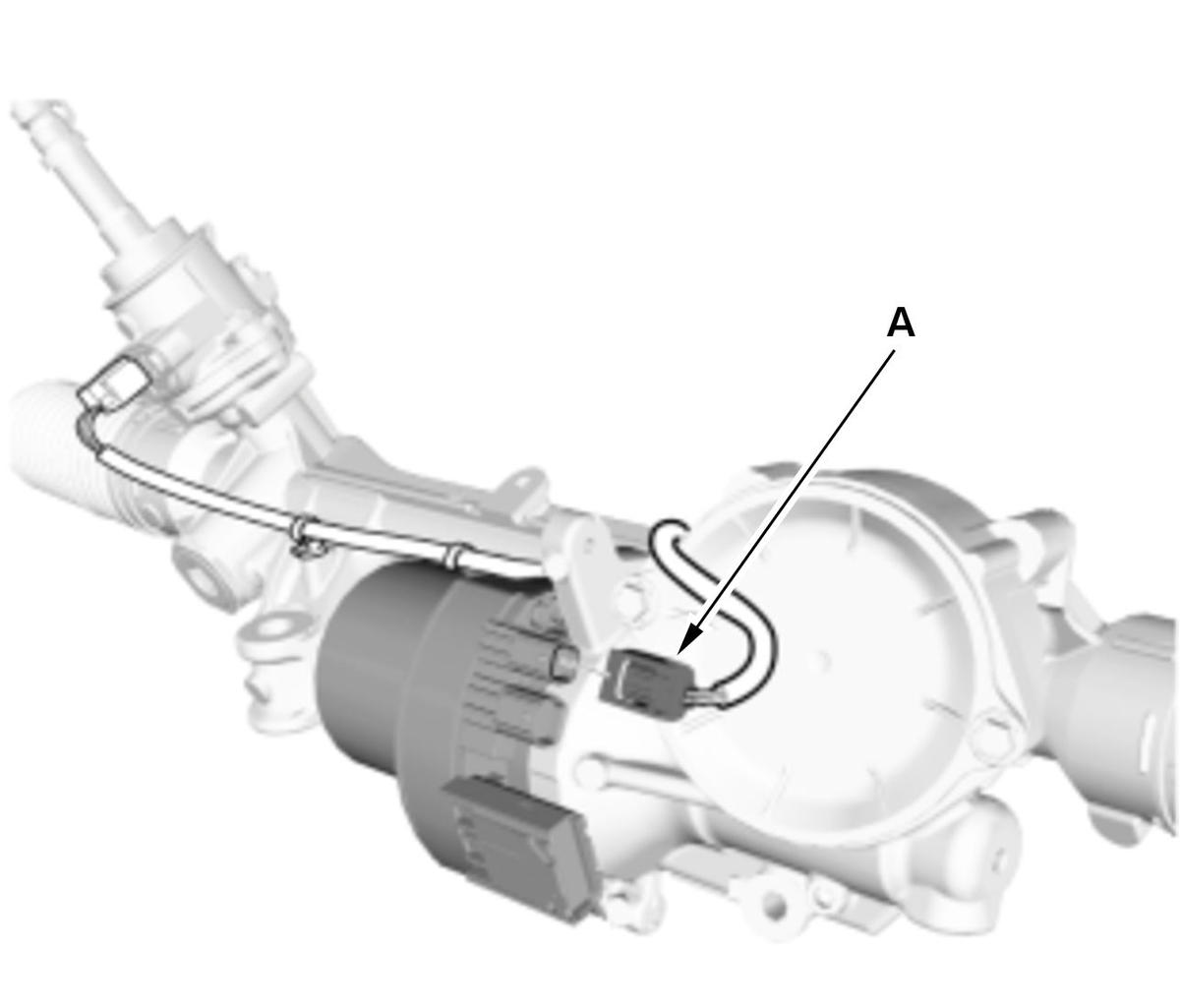

   1. Disconnect the connector (A). NOTE:  Wrap the connectors with vinyl tape to avoid contamination from grease or water.

   Courtesy of HONDA, U.S.A., INC.

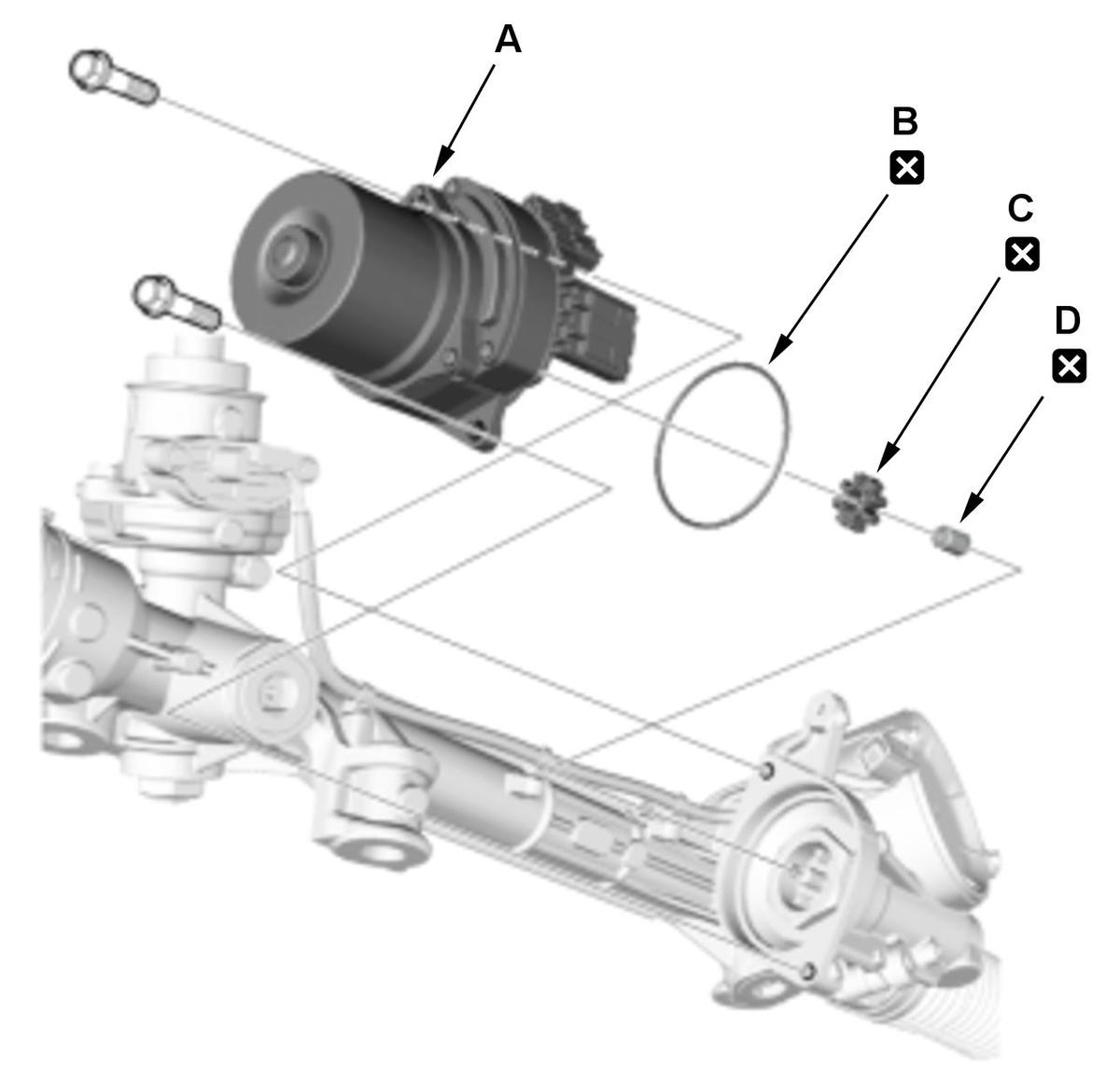

   2. Remove the EPS motor/control unit (A). 3. Remove the O-ring (B). 4. Remove the motor bush (C). 5. Remove the rubber bush (D).
