Steering Tie-Rod End Ball Joint Boot Replacement: Installation

Tie-Rod End Ball Joint Boot - Install

Courtesy of HONDA, U.S.A., INC.

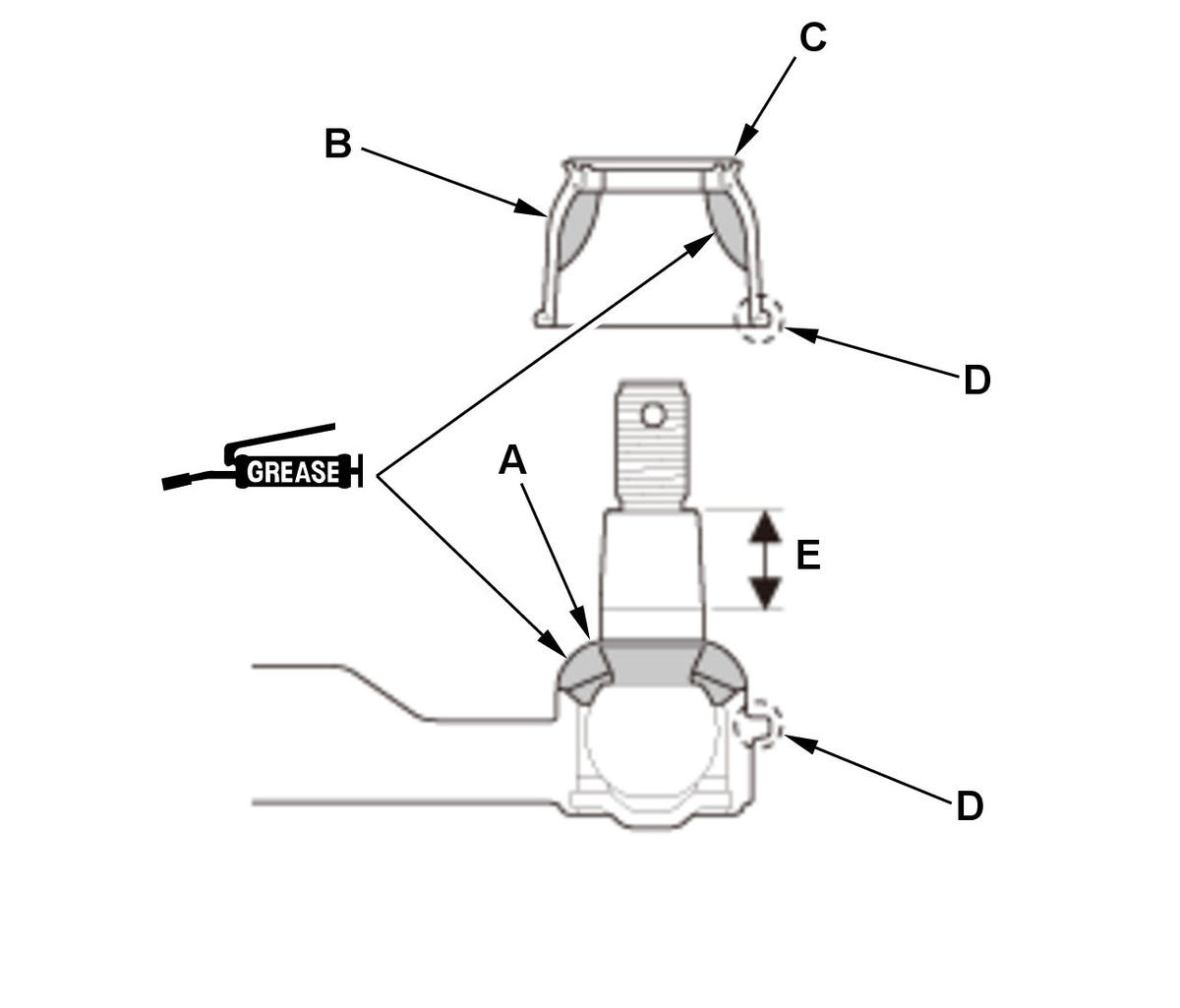

1. Pack the lower area of the ball pin (A) with fresh multipurpose grease.

2. Pack the interior of the new ball joint boot (B) and the lip (C) with fresh multipurpose grease.

Note these items when installing new grease:

Use the grease that comes with the tie-rod end boot set, or multi-purpose grease.
Keep grease off the boot mounting area (D) and the tapered section (E) of the ball pin.
Do not allow dust, dirt, or other foreign materials to enter the boot.

Courtesy of HONDA, U.S.A., INC.

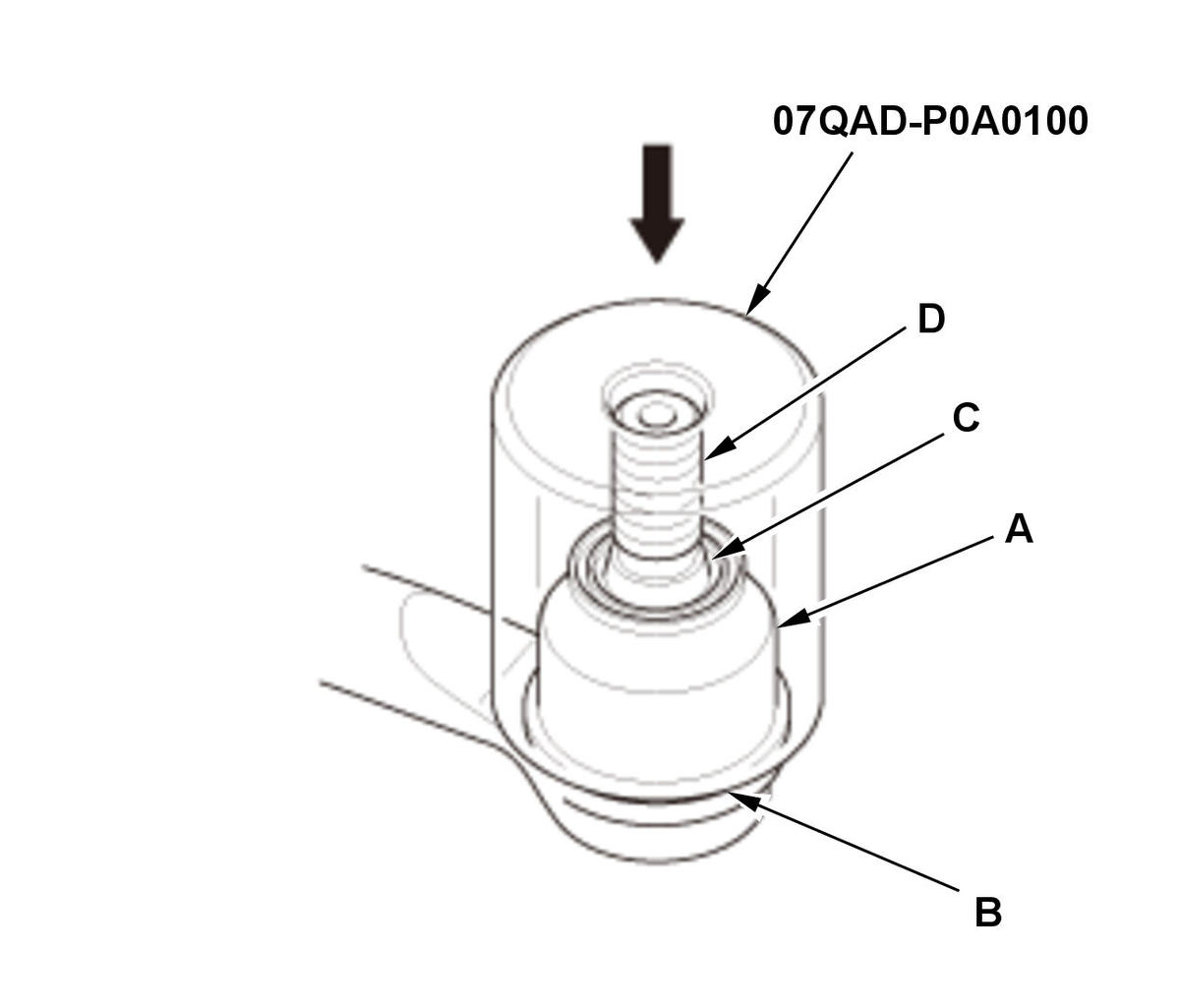

3. Install the ball joint boot (A) using the bearing driver attachment.

4. The ball joint boot must not have a gap at the ball joint boot installation sections (B).

5. After installing the ball joint boot, check the ball pin tapered section (C) and threaded section (D) for grease contamination.

6. Wipe the ball pin tapered section and threaded section if necessary.

Tie-Rod End Ball Joint - Connect

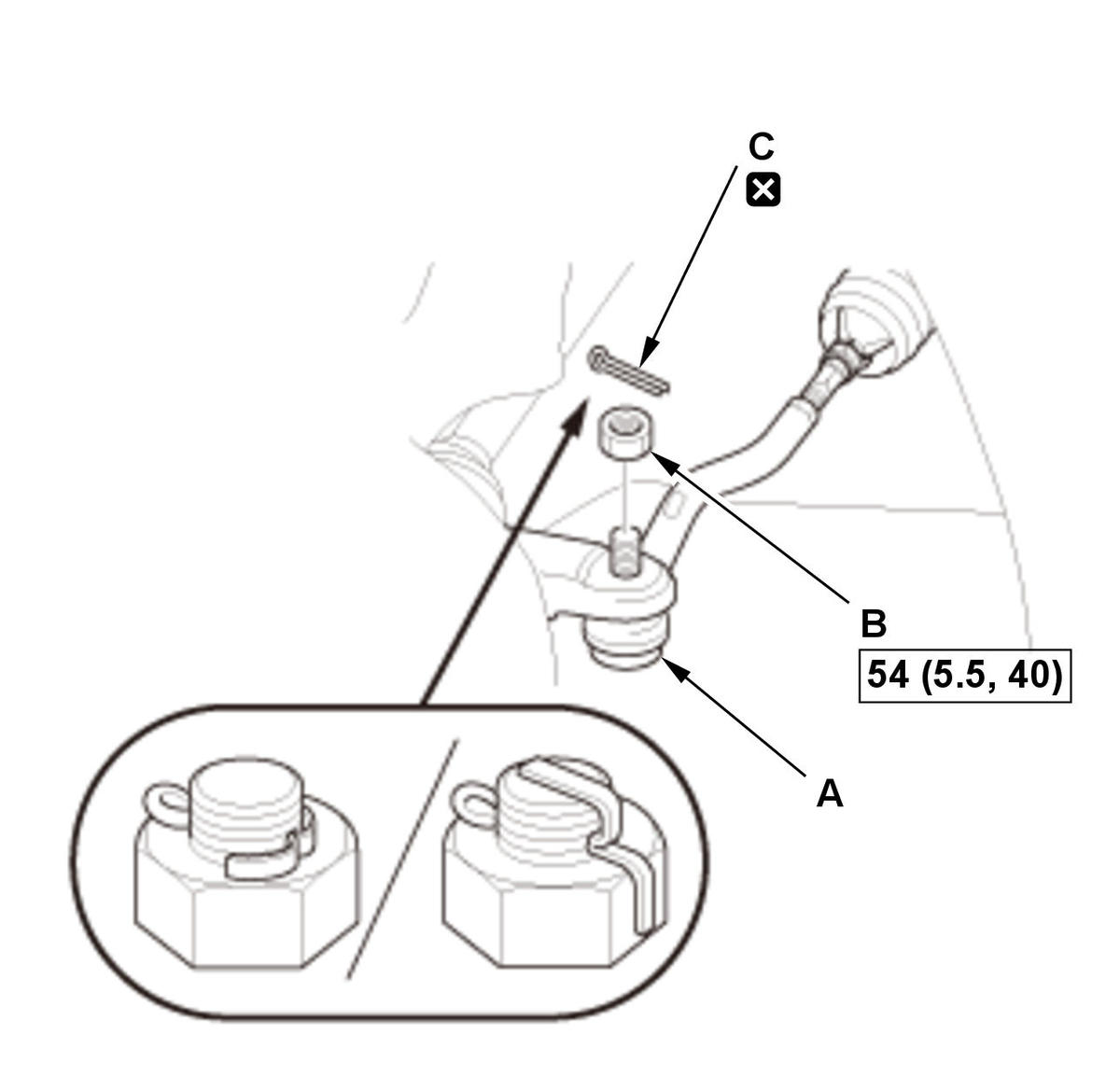

Fig 1: Tie-Rod End Ball Joint With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Wipe off any grease contamination from the ball joint tapered section and threads.

2. Connect the tie-rod ball joint (A) to the knuckle.

3. Install the nut (B) and tighten to the specified torque.

4. Install a new cotter pin (C).

NOTE: Bend the cotter pin as shown.
