Keyless Access System Component Location Index

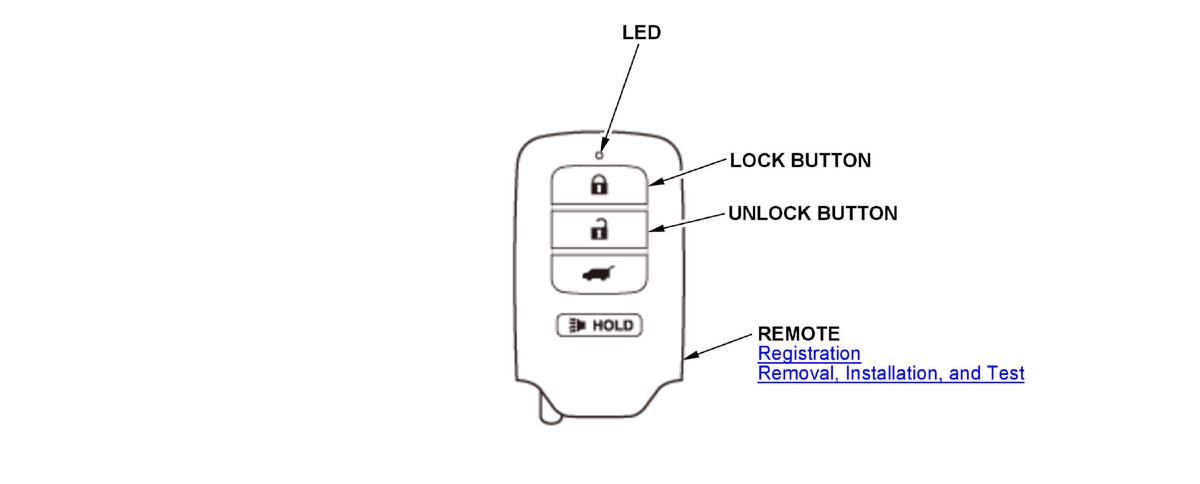

GHH438322Courtesy of HONDA, U.S.A., INC.

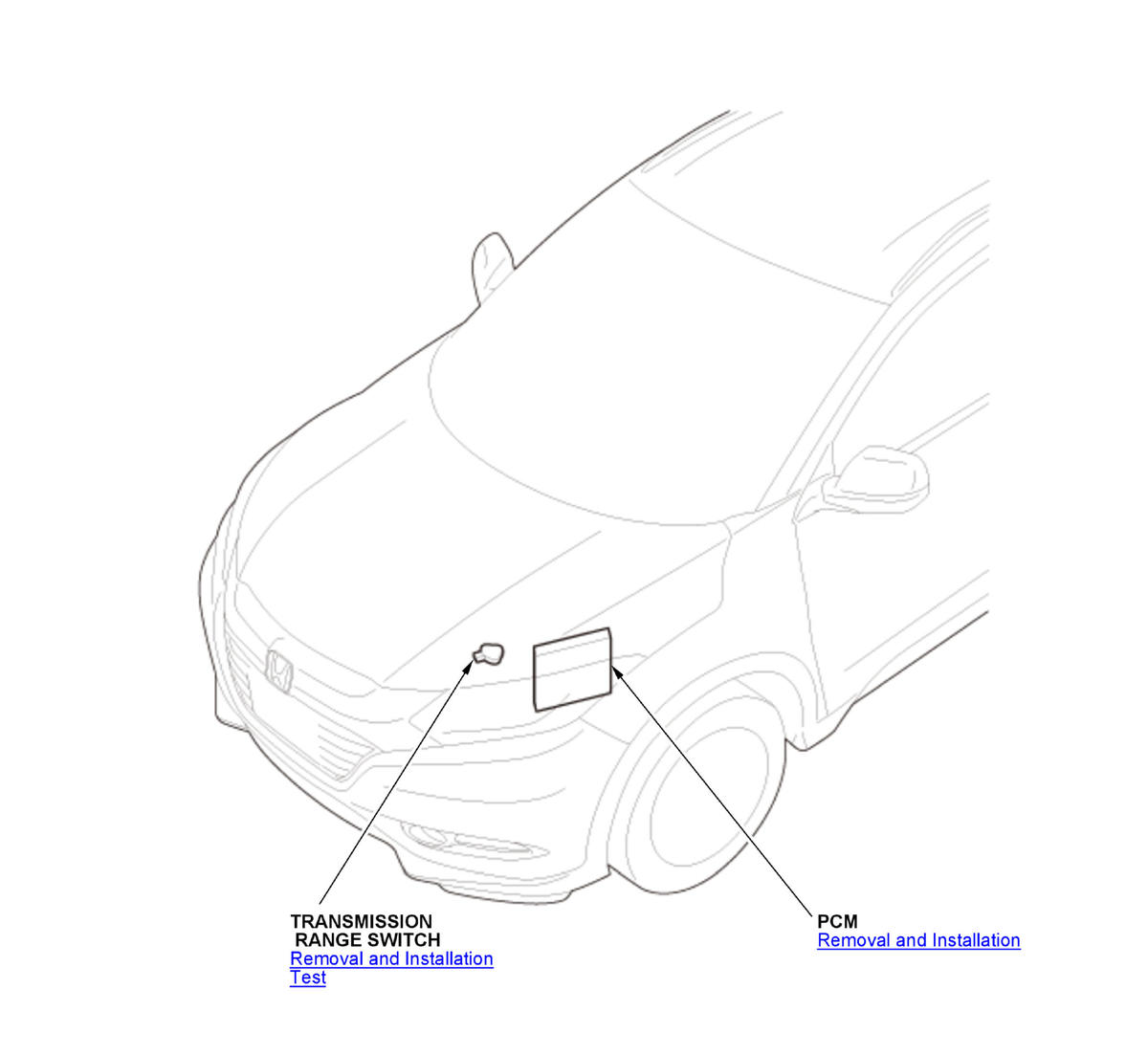

GHH438323Courtesy of HONDA, U.S.A., INC.

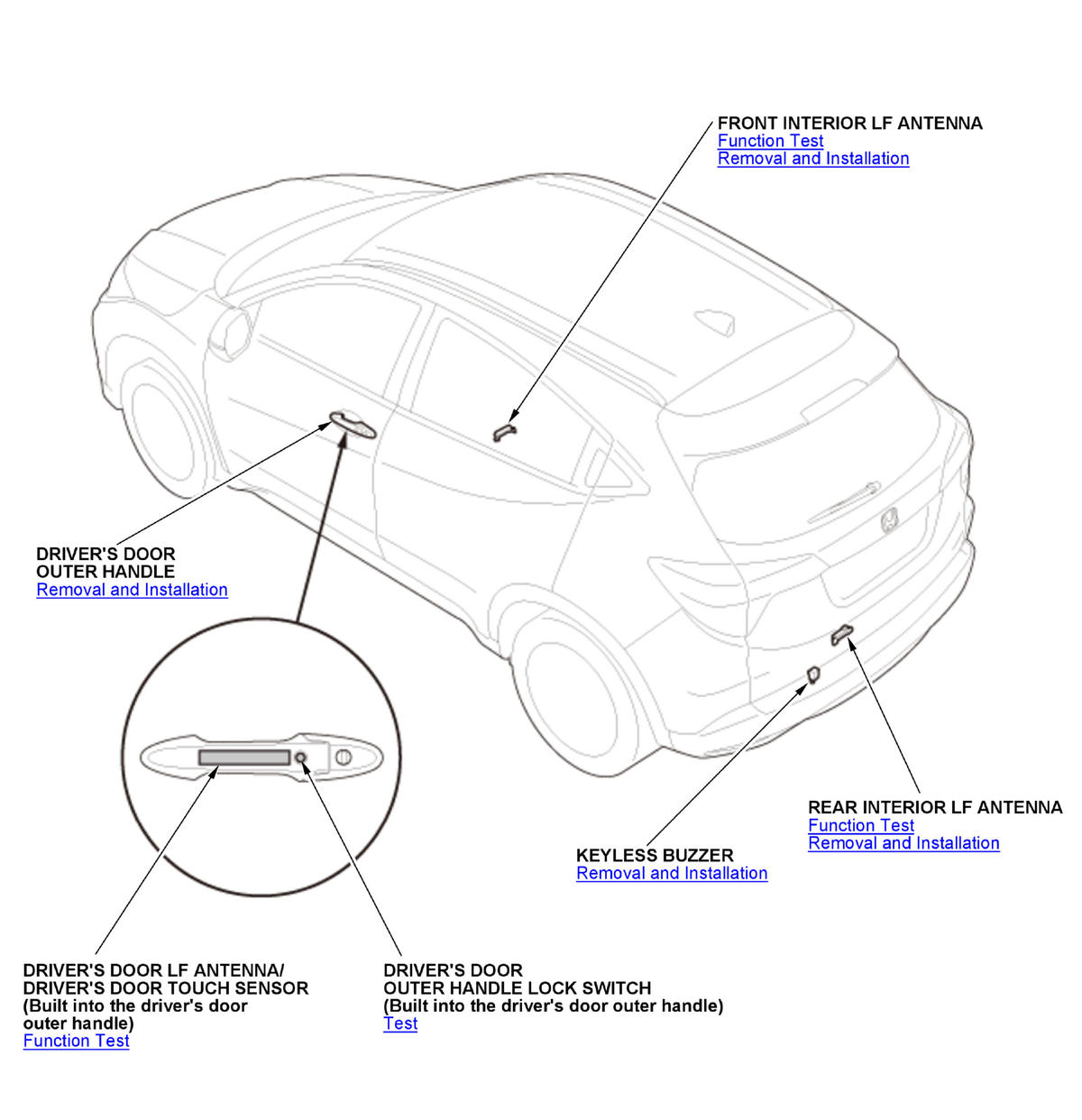

GHH438324Courtesy of HONDA, U.S.A., INC.

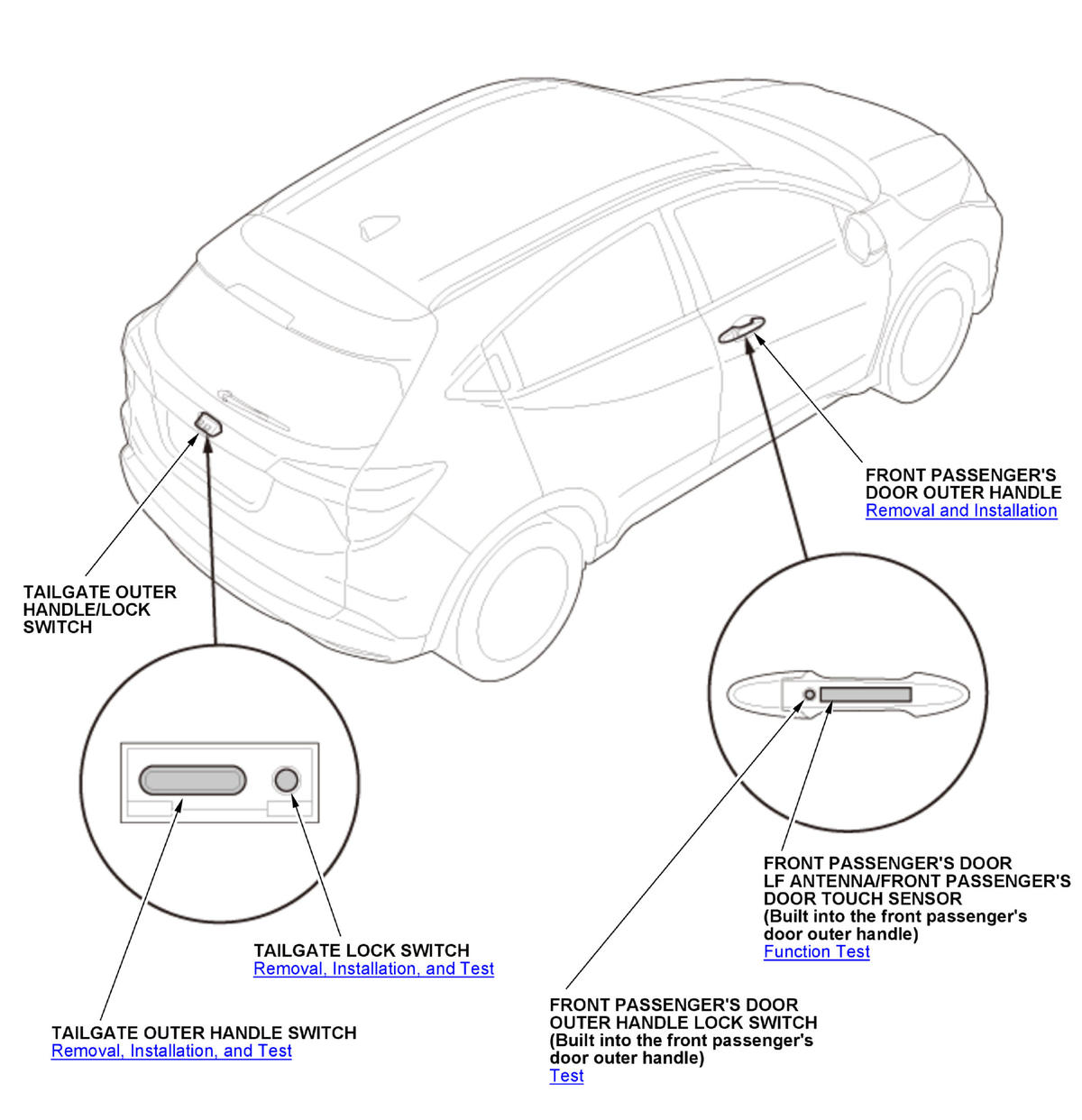

GHH438325Courtesy of HONDA, U.S.A., INC.

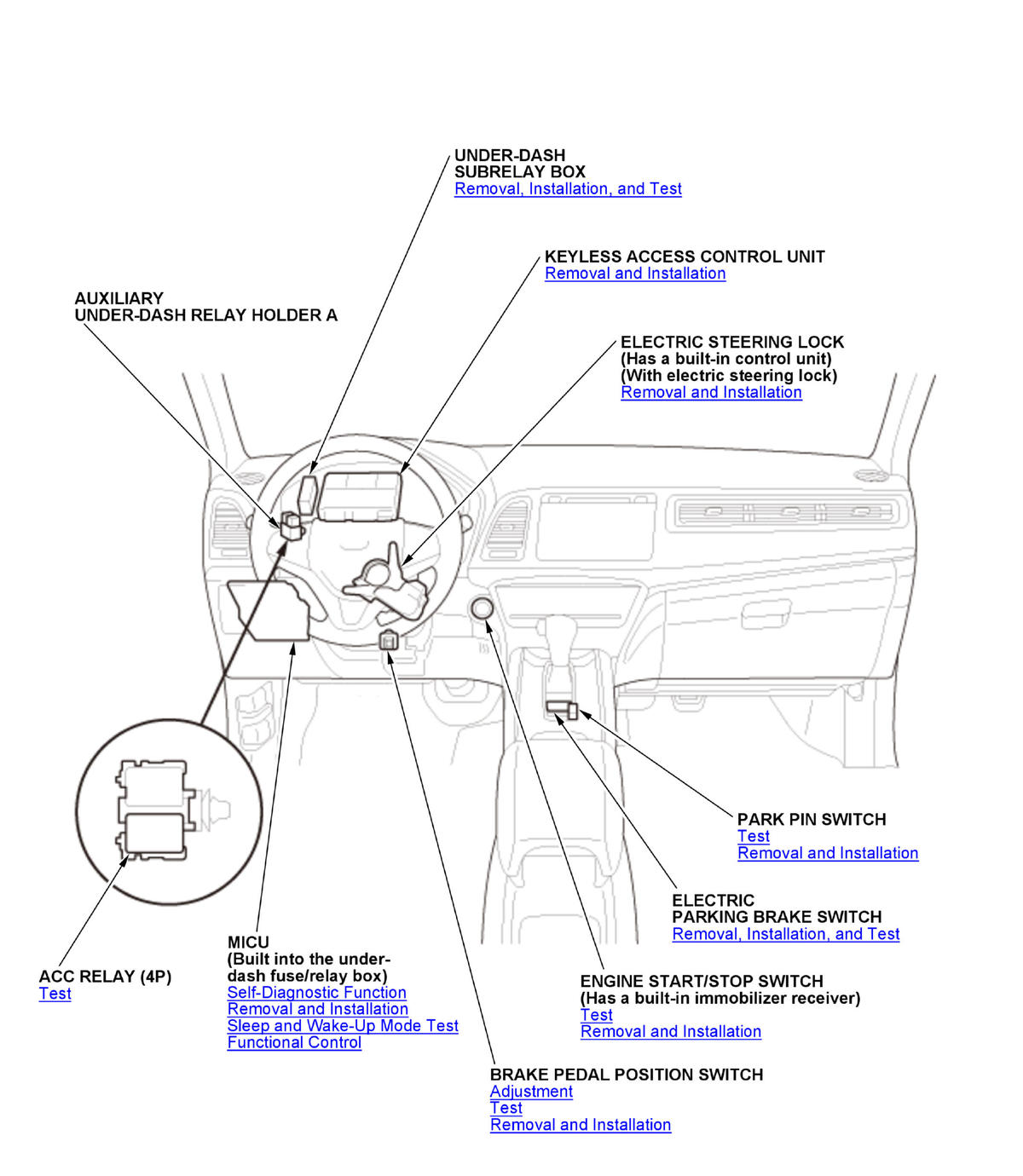

GHH438326Courtesy of HONDA, U.S.A., INC.

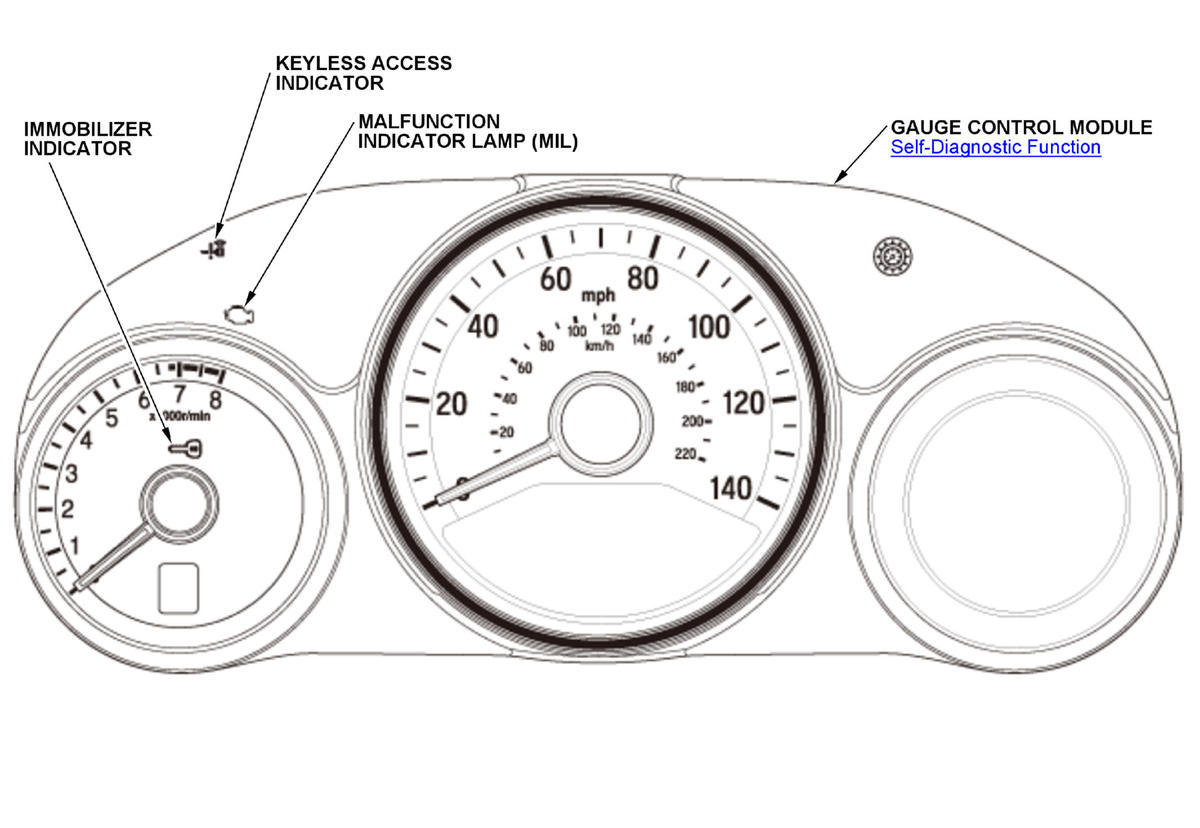

GHH438327Courtesy of HONDA, U.S.A., INC.
