Audio System Symptom Troubleshooting - USB device does not function (With Navigation) (2019 2020 2021)

NOTE:

• Check the vehicle 12 volt battery condition first .
• Check the USB's specifications:
• • -

    Mass-storage class ready digital audio player with USB 2.0 port

  • -

    More than 256 MB storage space

  • -

    Supports MP3, WMA, and AAC (encoded with the iTunes) files, DRM files are not supported

• Not all players and player functions work with the USB adapter. Please see the Owner's Manual for more information. Always test the customer's USB device in a known-good vehicle of the same year and trim (if possible). Technologies change and are updated frequently which may result that USB devices may work in newer vehicles, but not in older vehicles of the same model.
• Before doing this troubleshooting, check the USB Error Cords .
• Check the connectors for poor connections or loose terminals.

1. Determine possible failure area (USB device, others)

   -1. Connect the customer's USB device to a known-good vehicle (same year/trim) that is equipped with a USB port, and check the USB device operation.

   Does the USB device work properly in the known-good vehicle?

   YES

   Go to step 2.

   NO

   See the Owner's Manual for details about the USB device requirements and approved file types.

2. Problem verification

   -1. On the customer's vehicle, turn the vehicle to the ON mode.

   -2. Check the USB function in customer's vehicle by connecting the USB device to USB ports A and B individually.

   Does the USB device work properly in the customer's vehicle?

   YES

   Intermittent failure, the system is OK at this time. Inspect the connectors of the USB device and the USB port for wear.

   NO: USB port A and B do not work

   The failure is duplicated in USB port A and B, replace the audio-navigation unit .

   NO: USB port A does not work

   The failure is duplicated in USB port A, go to step 3.

   NO: USB port B does not work

   The failure is duplicated in USB port B, go to step 4.

3. Open wire check (USB port A circuit)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Audio-navigation unit connector F (5P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Audio-navigation unit connector F (5P): disconnected

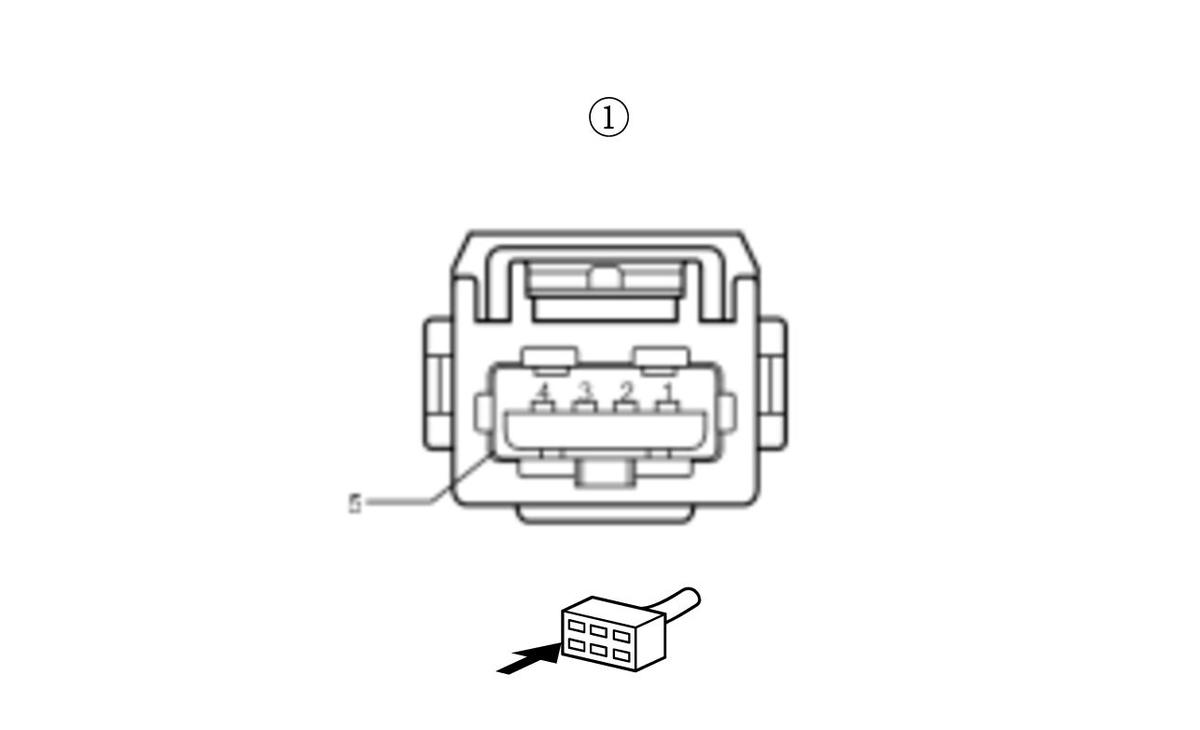

   Test point 1:  Audio-navigation unit connector F (5P)	Test point 2:USB port A 5P connector (female terminals):
   No. 1	No. 4
   No. 2	No. 1
   No. 3	No. 3
   No. 4	No. 2

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the audio-navigation unit .

   NO

   There is an open in the wire(s). Replace the affected shielded harness.

4. Open wire check (USB port B circuit)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Audio-navigation unit connector G (5P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Audio-navigation unit connector G (5P): disconnected

   Test point 1:  Audio-navigation unit connector G (5P)	Test point 2:USB port B 5P connector (female terminals):
   No. 1	No. 4
   No. 2	No. 1
   No. 3	No. 3
   No. 4	No. 2

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the audio-navigation unit .

   NO

   There is an open in the wire(s). Replace the affected shielded harness.
