Audio-Navigation Unit Connector for Inputs and Outputs (2019 2020 2021)
| Connector Index |
| Audio-Navigation Unit Connector A (24P) |
| Audio-Navigation Unit Connector B (32P) |
| Audio-Navigation Unit Connector C (24P) |
| Audio-Navigation Unit Connector E (3P) |
| Audio-Navigation Unit Connector F (5P) |
| Audio-Navigation Unit Connector G (5P) |
| Audio-Navigation Unit Connector H (2P) |
| Audio-Navigation Unit Connector J (2P) |

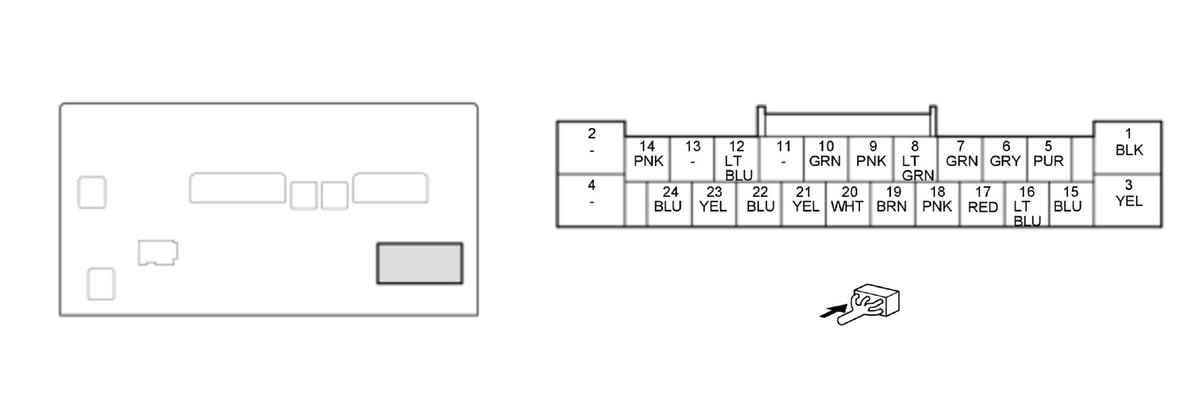

Audio-Navigation Unit Connector A (24P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
GND |
Ground for audio-navigation unit (G404) |
| A2 |
Not used |
--- |
| A3 |
+B AUDIO |
Continuous power source |
| A4 |
Not used |
--- |
| A5 |
RL SPKR+ |
Outputs sound signal for left rear door speaker |
| A6 |
RL SPKR- |
Outputs sound signal for left rear door speaker |
| A7 |
RR SPKR+ |
Outputs sound signal for right rear door speaker |
| A8 |
RR SPKR- |
Outputs sound signal for right rear door speaker |
| A9 |
AUDIO REMOTE SW |
Detects control signal from audio remote switch |
| A10 |
DISPLAY SW |
Detects control signal from audio remote switch |
| A11 |
Not used |
--- |
| A12 |
K-LINE |
Detects scan tool signal (serial data) |
| A13 |
Not used |
--- |
| A14 |
B-CAN_H |
B-CAN bus communication signal |
| A15 |
FL SPKR+ |
Outputs sound signal for driver's door speaker and left tweeter |
| A16 |
FL SPKR- |
Outputs sound signal for driver's door speaker and left tweeter |
| A17 |
FR SPKR+ |
Outputs sound signal for front passenger's door speaker and right tweeter |
| A18 |
FR SPKR- |
Outputs sound signal for front passenger's door speaker and right tweeter |
| A19 |
REMOTE SW GND |
Audio remote switch and HFL switch ground |
| A20 |
HFT/NAVI REMOTE SW |
Detects control signal from HFL switch |
| A21 |
SWD+B |
Outputs signal for ANC/active sound control unit switching on/off |
| Cavity |
Terminal Name |
Description |
| A22 |
VSP |
Inputs vehicle speed pulse |
| A23 |
IG1 WITH DIODE |
Power source for accessories |
| A24 |
B-CAN_L |
B-CAN bus communication signal |

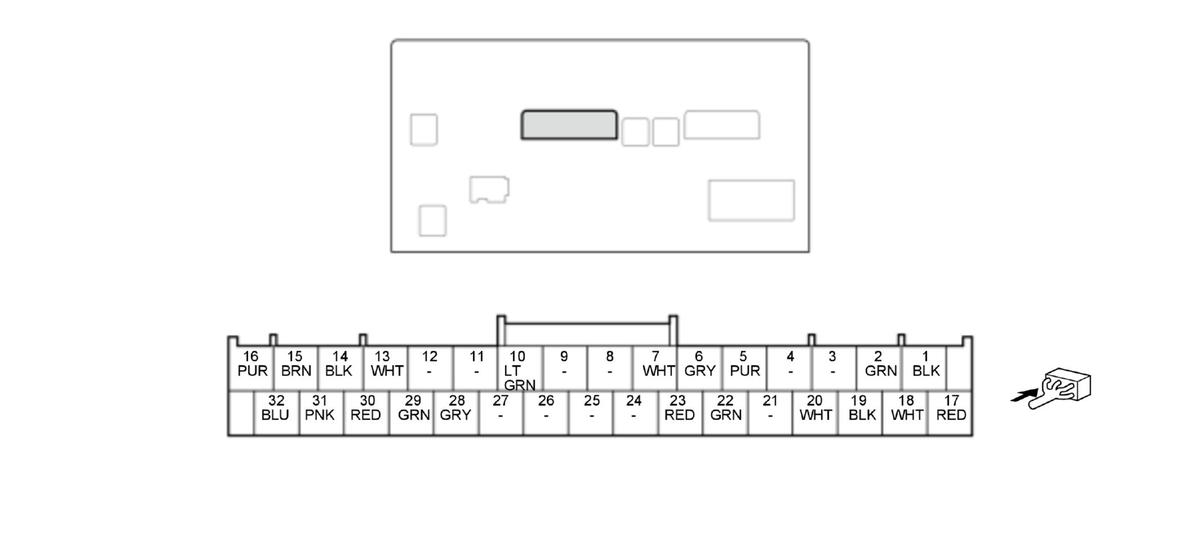

Audio-Navigation Unit Connector B (32P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
ANC R+ |
Inputs noise cancelling signal from ANC/active sound control unit |
| B2 |
ANC R- |
Inputs noise cancelling signal from ANC/active sound control unit |
| B3 |
Not used |
--- |
| B4 |
Not used |
--- |
| B5 |
HFT MUTE |
Outputs HFL-ANC/active sound control microphone directivity switching signal |
| B6 |
SH MIC |
Shield for terminals No. 22 and No. 23 |
| B7 |
MIC PWR |
Power source for HFL-ANC/active sound control microphone |
| B8 |
Not used |
--- |
| B9 |
Not used |
--- |
| B10 |
IG1 OPTION |
IG1 power source |
| B11 |
Not used |
--- |
| B12 |
Not used |
--- |
| B13 |
CAMERA VCC |
Power source for rearview camera |
| B14 |
CAMERA V GND |
Ground for video signal |
| B15 |
BACK LT |
Detects reverse signal |
| B16 |
CAMERA ADPT |
Detects connection for rearview camera |
| B17 |
ANC F+ |
Inputs noise cancelling signal from ANC/active sound control unit |
| B18 |
ANC F- |
Inputs noise cancelling signal from ANC/active sound control unit |
| B19 |
AUD F MIX |
Outputs audio mixing signal for front channels |
| B20 |
AUD F MIX GND |
Basis ground for terminal No. 19 |
| B21 |
Not used |
--- |
| B22 |
MIC+ |
Inputs voice signal from HFL-ANC/active sound control microphone |
| B23 |
MIC- |
Ground for HFL-ANC/active sound control microphone |
| B24 |
Not used |
--- |
| Cavity |
Terminal Name |
Description |
| B25 |
Not used |
--- |
| B26 |
Not used |
--- |
| B27 |
Not used |
--- |
| B28 |
SH CAMERA |
Shield for terminals No. 13, No. 14, No. 29, and No. 30 |
| B29 |
CAMERA V |
Video signal for rearview camera |
| B30 |
CAMERA GND |
Ground for rearview camera |
| B31 |
CAMERA BIT0 |
Mode select signal for rearview camera |
| B32 |
CAMERA BIT1 |
Mode select signal for rearview camera |

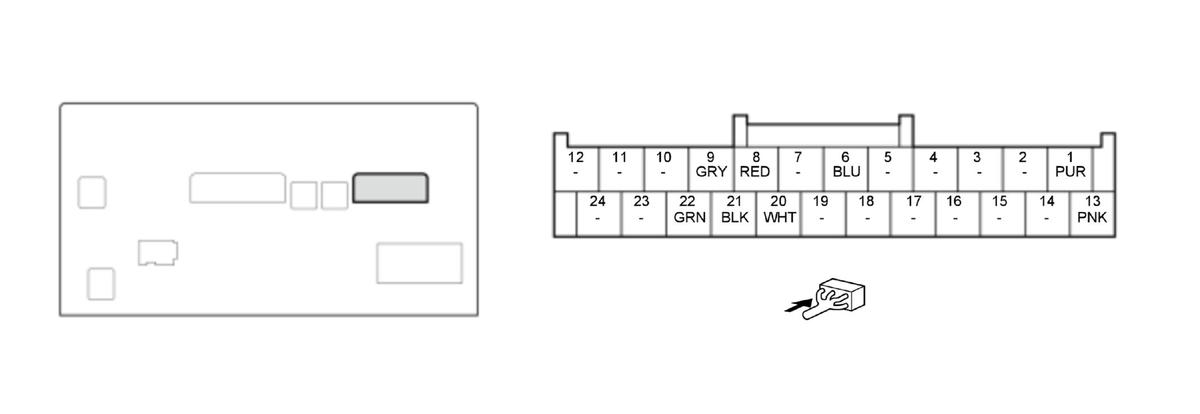

Audio-Navigation Unit Connector C (24P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
F-CAN C_H |
F-CAN bus communication signal |
| C2 |
Not used |
--- |
| C3 |
Not used |
--- |
| C4 |
Not used |
--- |
| C5 |
Not used |
--- |
| C6 |
LWC SW |
Detects LaneWatch on/off signal from LaneWatch switch |
| C7 |
Not used |
--- |
| C8 |
LWC CAM VCC |
Power source for LaneWatch camera |
| C9 |
SH LWC CAM |
Shield for terminals No. 8, No. 20, No. 21, and No. 22 |
| C10 |
Not used |
--- |
| C11 |
Not used |
--- |
| C12 |
Not used |
--- |
| C13 |
F-CAN C_L |
F-CAN bus communication signal |
| C14 |
Not used |
--- |
| C15 |
Not used |
--- |
| C16 |
Not used |
--- |
| C17 |
Not used |
--- |
| C18 |
Not used |
--- |
| C19 |
Not used |
--- |
| C20 |
LWC V AS |
Inputs video signal from LaneWatch camera |
| C21 |
LWC CAM VGND |
Ground for LaneWatch camera |
| C22 |
LWC UART |
Communication signal for LaneWatch camera |
| C23 |
Not used |
--- |
| C24 |
Not used |
--- |

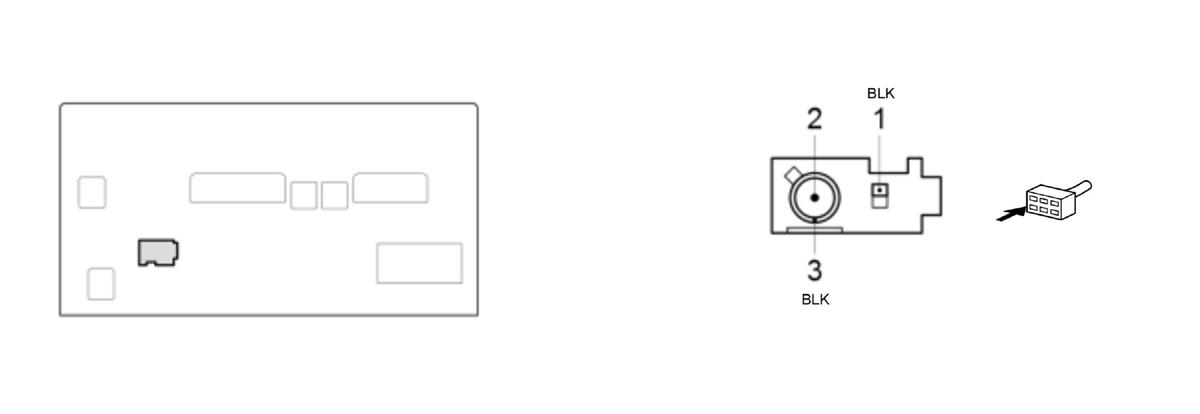

Audio-Navigation Unit Connector E (3P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| E1 |
SWD +B |
Power source for AM/FM antenna |
| E2 |
AM/FM |
Inputs AM/FM signal |
| E3 |
SH (AM/FM) |
Shield for terminal No. 2 |

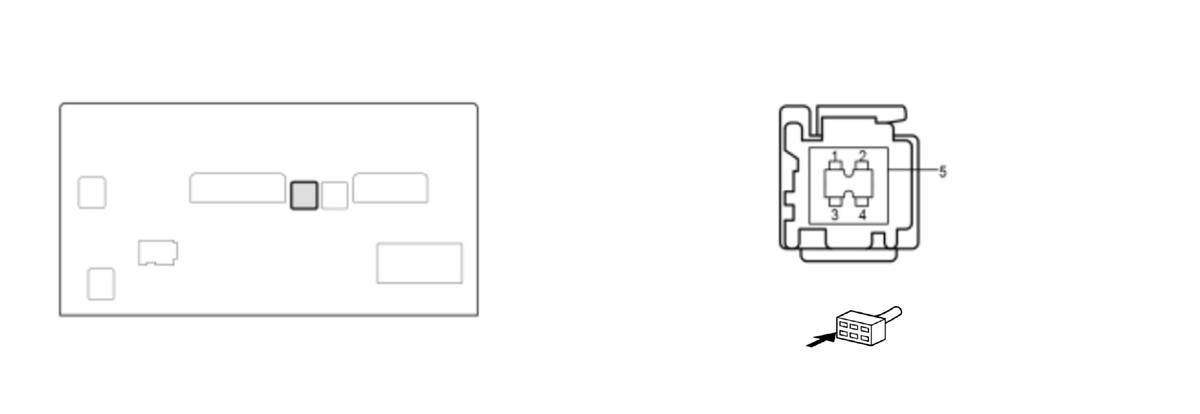

Audio-Navigation Unit Connector F (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| F1 |
USB GND |
Ground for USB device |
| F2 |
USB VBUS |
Outputs power source for USB port A |
| F3 |
USB DATA+ |
Communication signal |
| F4 |
USB DATA- |
Communication signal |
| F5 |
USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

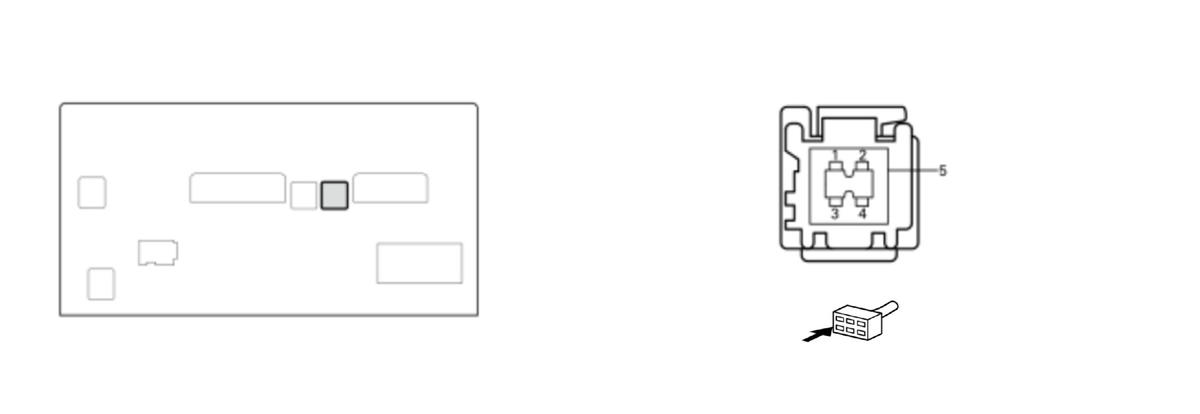

Audio-Navigation Unit Connector G (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| G1 |
USB GND |
Ground for USB device |
| G2 |
USB VBUS |
Outputs power source for USB port B |
| G3 |
USB DATA+ |
Communication signal |
| G4 |
USB DATA- |
Communication signal |
| G5 |
USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

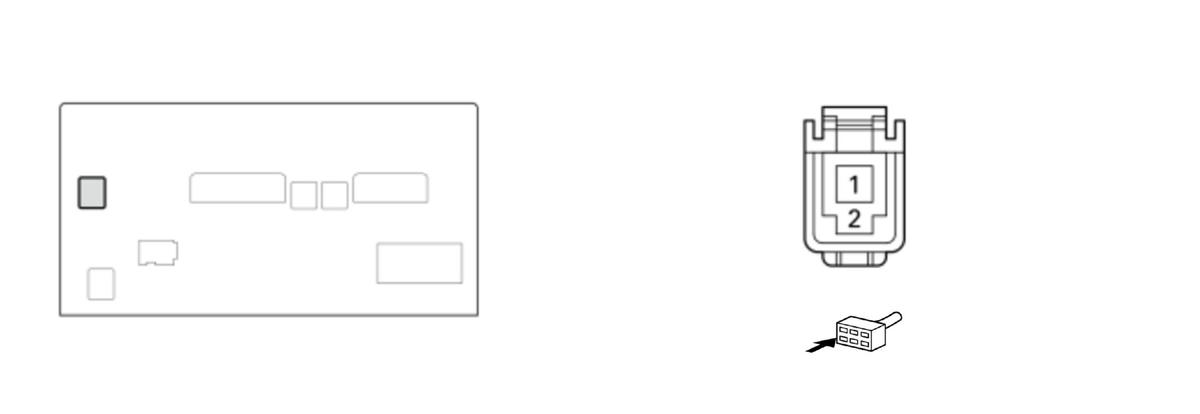

Audio-Navigation Unit Connector H (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| H1 |
SAT/TER |
Inputs satellite/terrestrial signal |
| H2 |
SH (SAT/TER) |
Shield for terminal No. 1 |

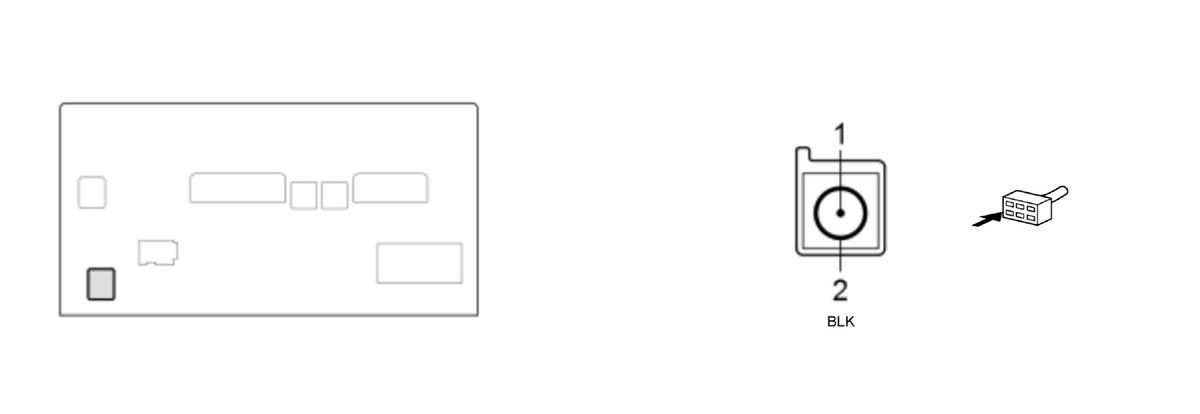

Audio-Navigation Unit Connector J (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| J1 |
GPS ANT |
Inputs GPS signal |
| J2 |
GPS SH |
Shield for terminal No. 1 |
