Keyless/Power Door Locks/Security System Component Location Index

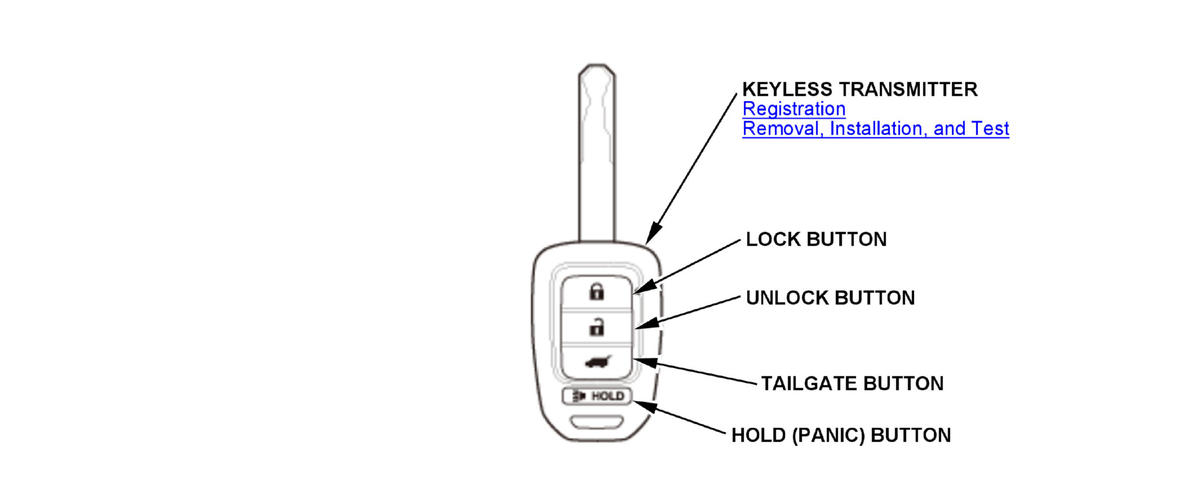

Without Keyless Access System
 Courtesy of HONDA, U.S.A., INC.
|

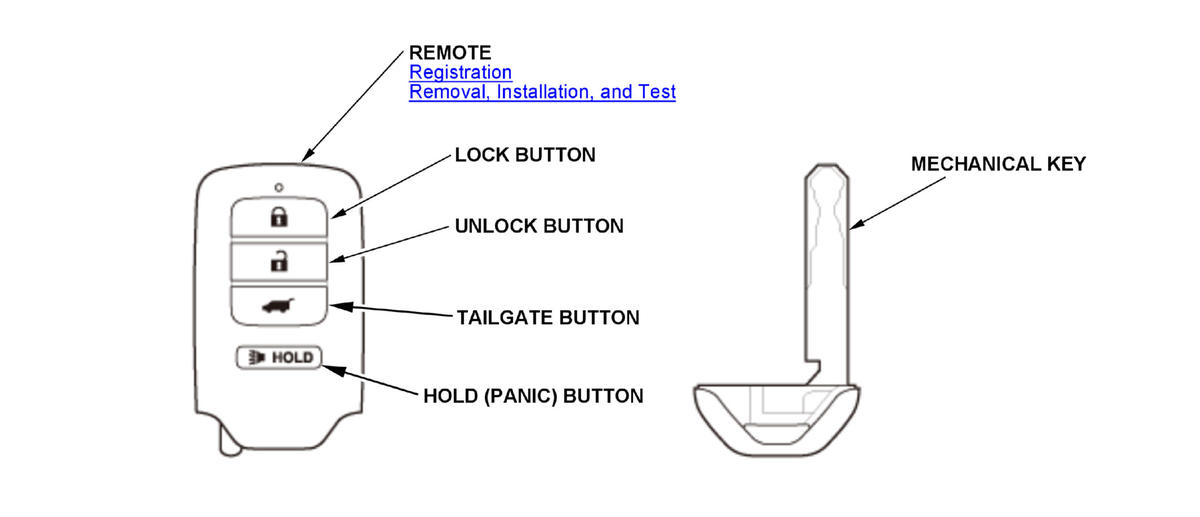

With Keyless Access System
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
Without LED headlight
 Courtesy of HONDA, U.S.A., INC.
|

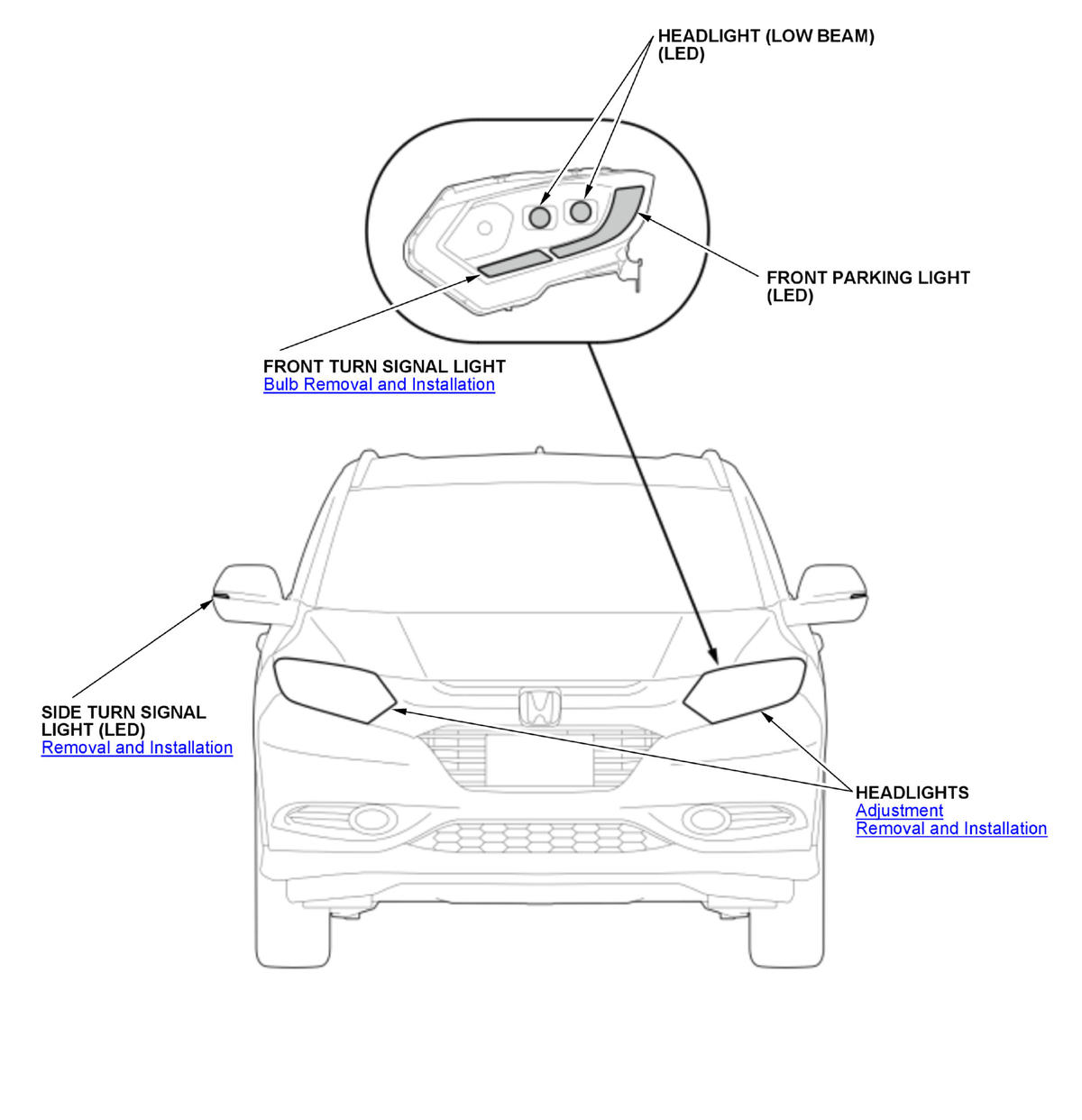

With LED headlight
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
