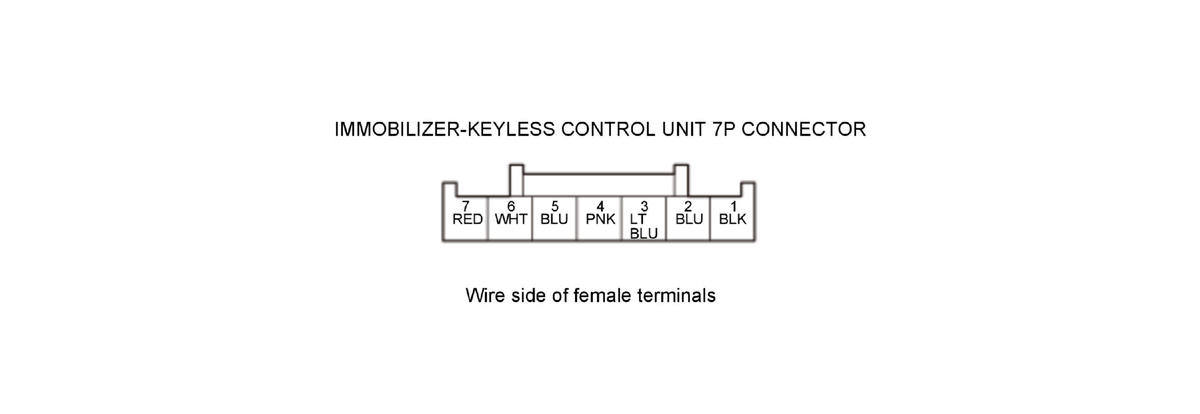

Immobilizer-Keyless Control Unit Connector for Inputs and Outputs
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | GND | Ground for immobilizer-keyless control unit | Less than 0.2 V at all times |
| 2 | S-NET | Communication line | --- |
| 3 | K LINE | Communication line | --- |
| 4 | B-CAN_H | Communication line | --- |
| 5 | B-CAN_L | Communication line | --- |
| 6 | IG1 FUEL PUMP | IG1 power source | With vehicle in ON mode: about battery voltage |
| 7 | +B BACK UP | Power source for immobilizer-keyless control unit | About battery voltage at all times |
