AWD Control Unit Connector for Inputs and Outputs (AWD) (2019 2020 2021)

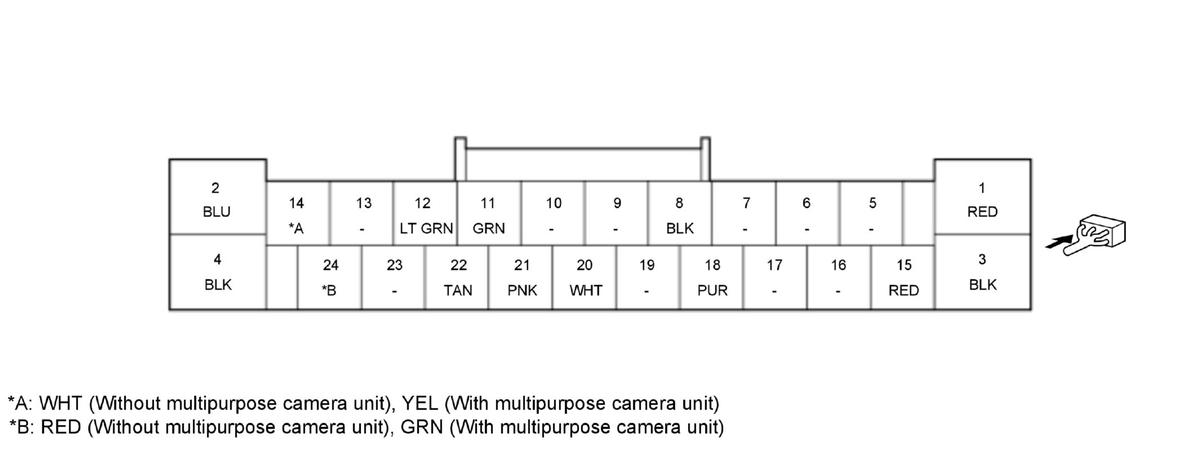

AWD Control Unit 24P Connector (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | MH | Drives rear differential pump motor |
| 2 | +B E-DPS | Power supply for the actuator |
| 3 | ML | Ground for the rear differential pump motor |
| 4 | GND | Ground for the actuator |
| 5 | Not used | --- |
| 6 | Not used | --- |
| 7 | Not used | --- |
| 8 | GND | Ground for the AWD control unit |
| 9 | Not used | --- |
| 10 | Not used | --- |
| 11 | SG | Ground for the rear differential fluid pressure sensor |
| 12 | IG1 OPTION | Power supply for the AWD control unit |
| 13 | Not used | --- |
| 14* 1 | F-CAN_H | F-CAN communication circuit |
| 14* 2 | F-CAN B_H | F-CAN communication circuit |
| 15 | DTYH | Drives rear differential solenoid valve |
| 16 | Not used | --- |
| 17 | Not used | --- |
| 18 | TOH | Detects rear differential fluid temperature sensor signal |
| 19 | Not used | --- |
| 20 | SVCC | Power supply for the rear differential fluid pressure sensor |
| 21 | PS | Detects rear differential fluid pressure sensor signal |
| 22 | TOL | Ground for rear differential fluid temperature sensor |
| 23 | Not used | --- |
| 24* 1 | F-CAN_L | F-CAN communication circuit |
| 24* 2 | F-CAN B_L | F-CAN communication circuit |
*1: Without multipurpose camera unit
*2: With multipurpose camera unit
