Auxiliary Under-Dash Relay Holder A (with Keyless Access System)

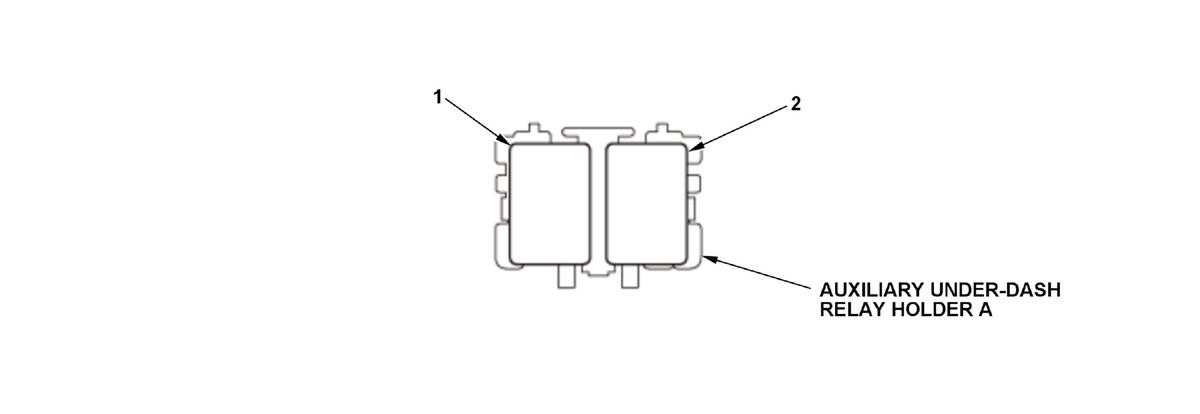

Fig 1: Auxiliary Under-Dash Relay Holder A (with Keyless Access System) Component Locations
GHH433894Courtesy of HONDA, U.S.A., INC.
Auxiliary Under-Dash Relay Holder A (with Keyless Access System) Legend

Socket Ref Terminal Connects to Notes
ACC relay 1 4
Rear wiper motor relay 2 4
