Console Relay Holder A

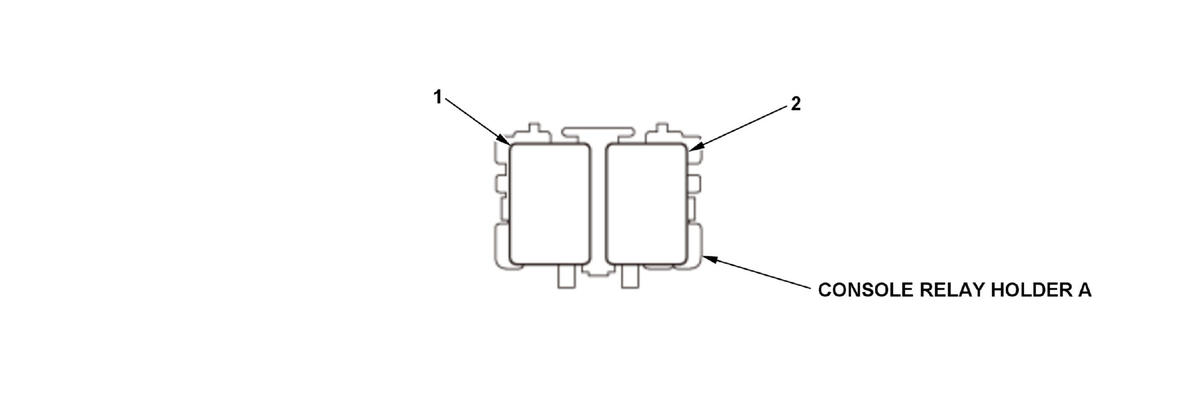

Fig 1: Console Relay Holder A Component Locations
GHH433896Courtesy of HONDA, U.S.A., INC.
Console Relay Holder A Legend

Socket Ref Terminal Connects to Notes
Console accessory power socket relay 2 4
Rear accessory power socket relay* 1 4
*: With rear accessory power socket
