Removal and Installation

  1. Drain Bolt, Sealing Bolt, and Washer - Remove

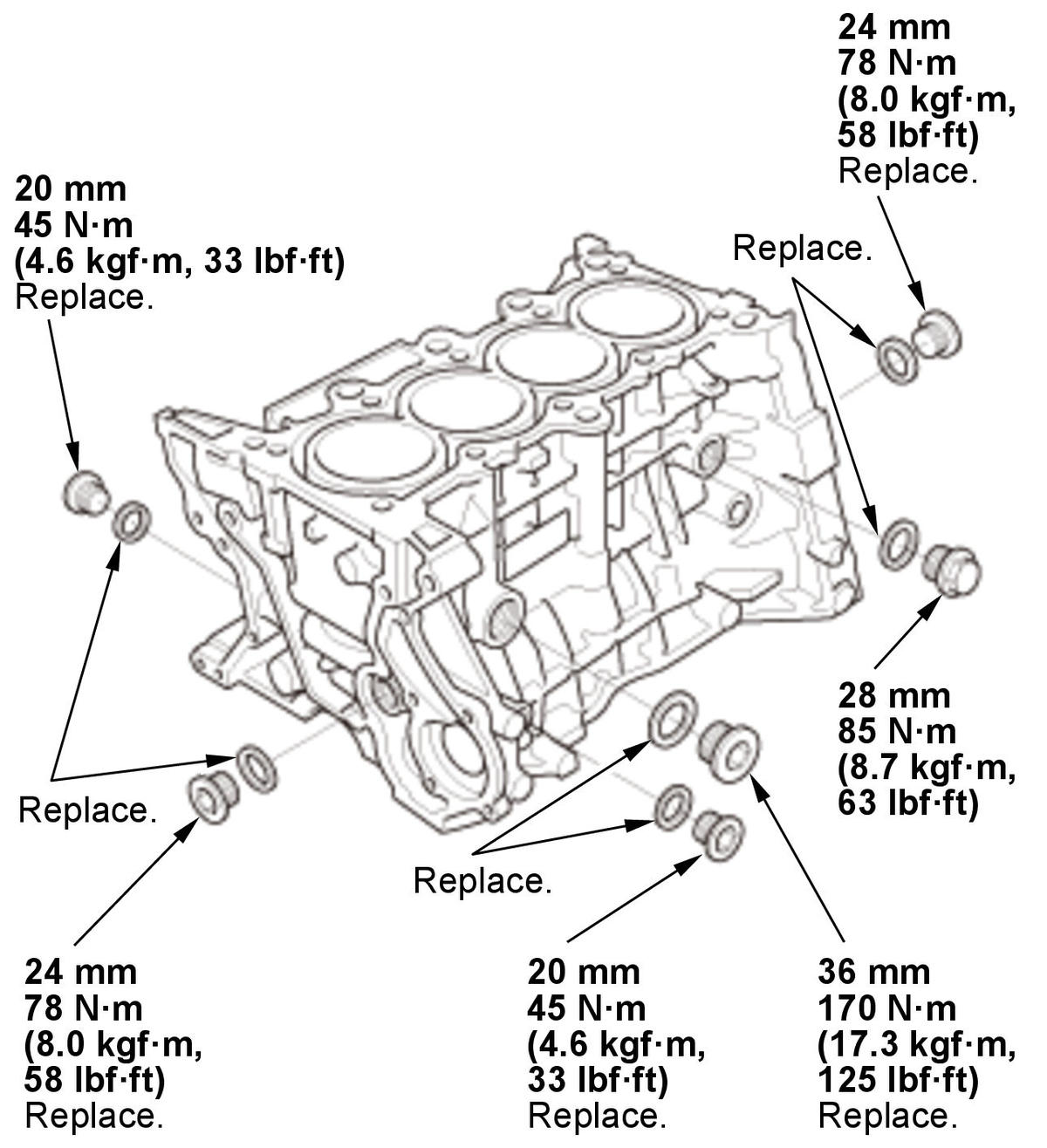

    Fig 1: Drain Bolts, Sealing Bolts With Torque Specifications
    GHH435369Courtesy of HONDA, U.S.A., INC.
  2. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
