Climate Control System Description - Customize Function
How to Change the Set Temperature
The climate control unit has a function to change the set temperature +2.7 deg.F (+1.5 deg.C) or -2.7 deg.F (-1.5 deg.C) degrees.
NOTE: Verify that the climate control and A/C system is working properly before enabling the customize function to offset the set temperature.
- +2.7 deg.F (+1.5 deg.C) Change
-
- -
Turn the vehicle to the ON mode.
- -
Touch and hold the RECIRCULATION icon, then within 10 seconds touch and release the fan control icon (↑) five times. Release the RECIRCULATION icon.
- -
- -2.7 deg.F (-1.5 deg.C) Change
-
- -
Turn the vehicle to the ON mode.
- -
Touch and hold the RECIRCULATION icon, then within 10 seconds touch and release the fan control icon (↓) five times. Release the RECIRCULATION icon.
- -
- Changing back to 0 deg.F (0 deg.C)
-
- -
Turn the vehicle to the ON mode.
- -
Touch and hold the RECIRCULATION icon, then within 10 seconds touch and release the ON/OFF icon five times. Release the RECIRCULATION icon.
- -

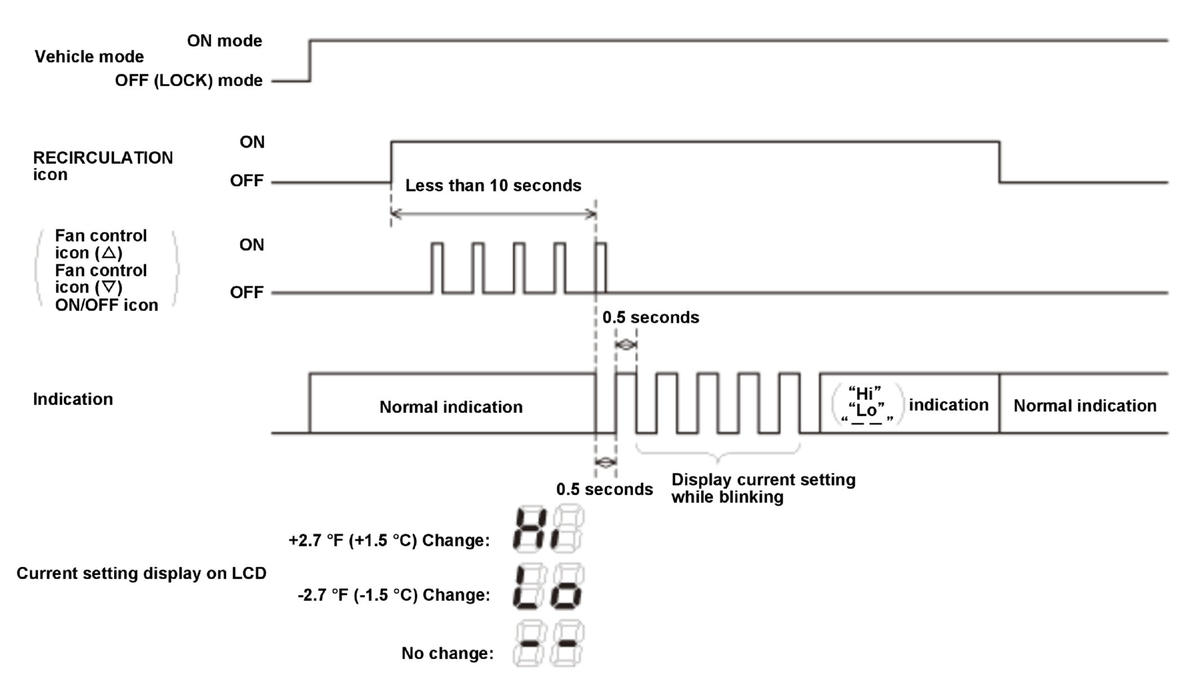

- Indication of the change
The climate control unit displays the following during each change.
