Ignition Switch Component Location Index(CVT)

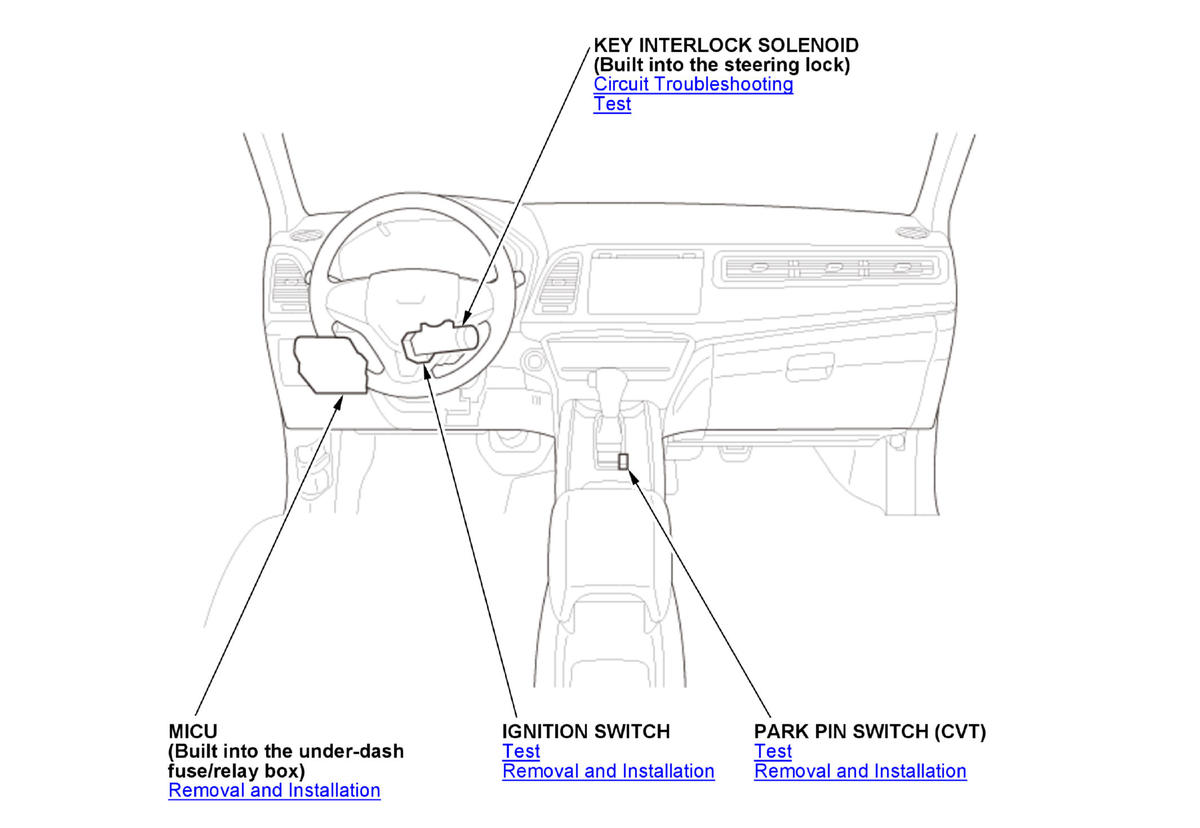

Fig 1: Ignition Switch Component Locations (1 Of 2)
Courtesy of HONDA, U.S.A., INC.
Fig 2: Ignition Switch Component Locations (2 Of 2)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
