Under-Dash Fuse/Relay Box Connector for Inputs and Outputs (2016 2017 2018)
| Connector Index |
|---|
| UNDER-DASH FUSE/RELAY BOX CONNECTOR A (16P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR B (20P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR D (24P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR E (12P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR F (8P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR G (10P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR H (20P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR J (4P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR M (5P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR N (52P) |

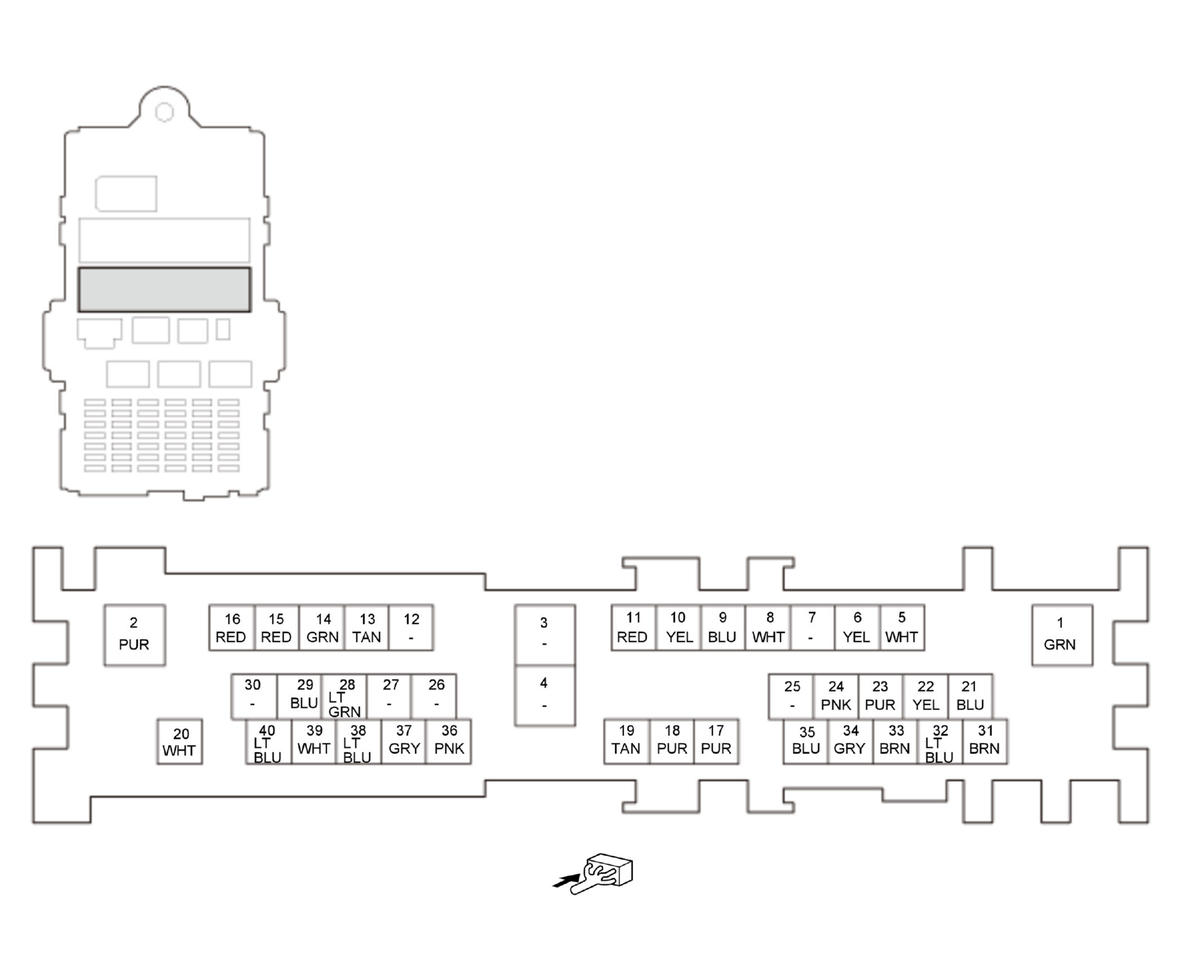

| UNDER-DASH FUSE/RELAY BOX CONNECTOR Q (40P) |
| UNDER-DASH FUSE/RELAY BOX CONNECTOR R (2P) |

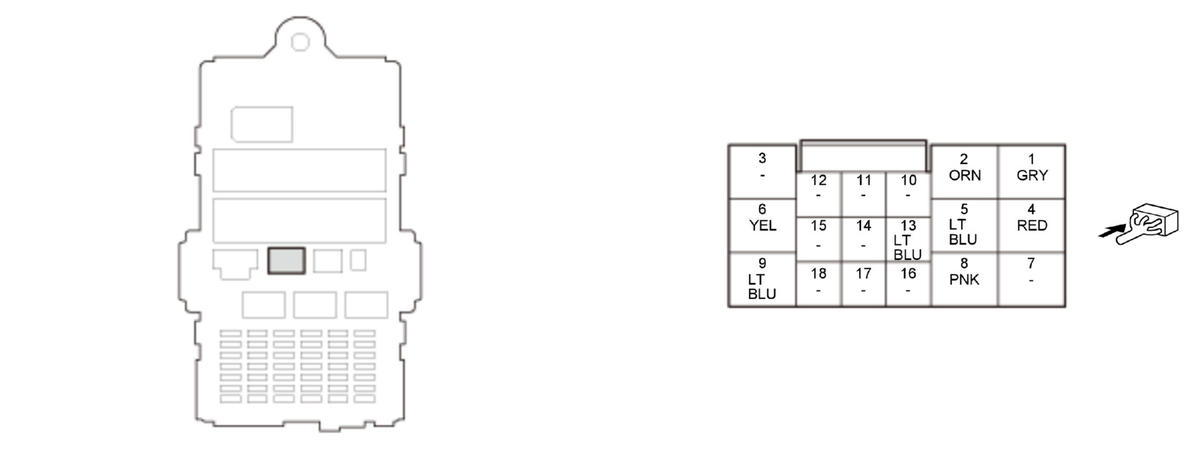

| UNDER-DASH FUSE/RELAY BOX CONNECTOR T (18P) |

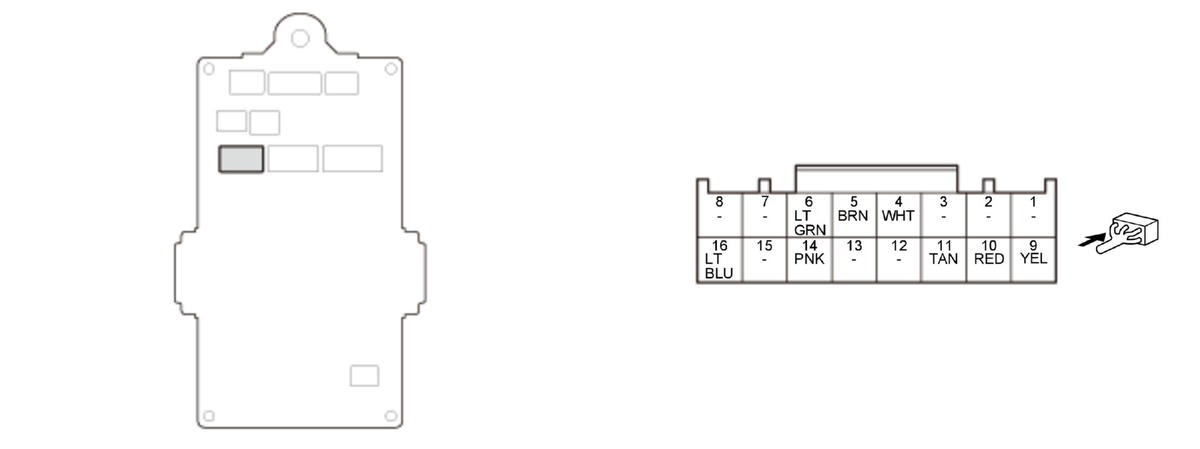

UNDER-DASH FUSE/RELAY BOX CONNECTOR A (16P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4 | AS SILCON UNLOCK | Detects AS SILCON UNLOCK signal | With front passenger's door lock knob switch UNLOCK: less than 0.2 VWith front passenger's door lock knob switch LOCK and MICU is wakeup mode: about battery voltageWith front passenger's door lock knob switch LOCK and MICU is sleep mode: pulse |
| 5 *4 | H/L LO L SIG | Communication line | --- |
| 6 *1 | FR DEICER RLY CL- | Outputs FR DEICER RLY CL- signal | With heated windshield wiper area OFF: about battery voltageWith heated windshield wiper area ON: less than 0.2 V |
| 7 | Not used | --- | --- |
| 8 | Not used | --- | --- |
| 9 | INTR LT CUT RLY CL- | Outputs INTR LT CUT RLY CL- signal | With interior lights are OFF: less than 0.2VWith interior lights are ON: about battery voltage |
| 10 | +B BACK UP | Power source for MICU and other units | About battery voltage at all times |
| 11 *2 | P-PIN SW | Detects P-PIN SW signal | With vehicle in ACC or ON mode and park pin switch OFF: about battery voltageWith vehicle in ACC or ON mode and park pin switch ON: less than 0.2 V |
| 12 | Not used | --- | --- |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 13 | Not used | --- | --- |
| 14 | HAZARD SW | Detects HAZARD SW signal | With hazard warning switch ON: about battery voltageWith hazard warning switch OFF: less than 0.2 V |
| 15 | Not used | --- | --- |
| 16 *3 | RR DEF SW | Detects RR DEF SW signal | With rear window defogger switch ON: less than 0.2 VWith rear window defogger switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
*1: With heated windshield wiper area
*2: CVT and without keyless access system
*3: Without climate control
*4: With LED headlight

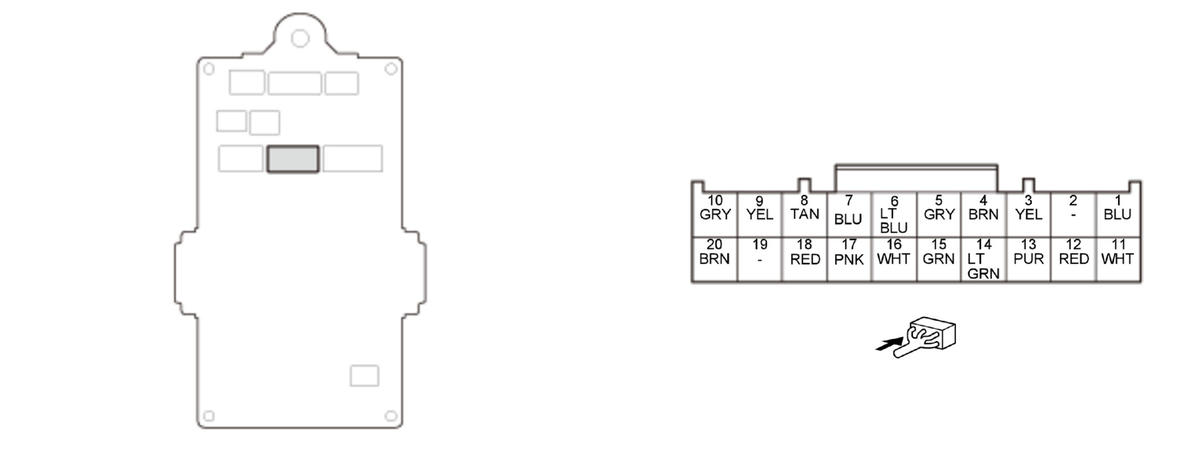

UNDER-DASH FUSE/RELAY BOX CONNECTOR B (20P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | R TURN SW | Detects R TURN SW signal | With right turn signal switch ON: less than 0.2 VWith right turn signal switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 2 | Not used | --- | --- |
| 3 | H/L HI SW | Detects H/L HI SW signal | With combination light switch HI: less than 0.2 VWith combination light switch OFF and MICU is wakeup mode: about battery voltageWith combination light switch OFF and MICU is sleep mode: pulse |
| 4 | H/L OFF SW | Detects H/L OFF SW signal | With combination light switch OFF: less than 0.2 VWith combination light switch ON and MICU is wakeup mode: about battery voltageWith combination light switch ON and MICU is sleep mode: pulse |
| 5 | SMALL LT SW | Detects PARKING LT SW signal | With combination light switch PARKING: less than 0.2 VWith combination light switch OFF and MICU is wakeup mode: about battery voltageWith combination light switch OFF and MICU is sleep mode: pulse |
| 6 | RR WIPER INT SW | Detects RR WIPER INT SW signal | With vehicle in ON mode and rear wiper switch OFF: about battery voltageWith vehicle in ON mode and rear wiper switch INT: less than 0.2 V |
| 7 | RR WASHER SW | Detects RR WASHER SW signal | With rear washer switch ON: less than 0.2 VWith rear washer switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 8 | FR WIPER INT SW | Detects FR WIPER INT SW signal | With front windshield wiper switch INT or LO: less than 0.2 VWith front windshield wiper switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 9 | FR WASHER SW | Detects FR WASHER SW signal | With front windshield washer switch ON: less than 0.2 VWith front windshield washer switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 10 | COMBI SW GND (LT) | Ground for combination switch | Less than 0.2 V at all times |
| 11 | H/L ON SW | Detects H/L ON SW signal | With combination light switch ON: less than 0.2 VWith combination light switch OFF and MICU is wakeup mode: about battery voltageWith combination light switch OFF and MICU is sleep mode: pulse |
| 12 | PASSING SW | Detects PASSING SW signal | With combination light switch PASSING: less than 0.2 VWith combination light switch OFF and MICU is wakeup mode: about battery voltageWith combination light switch OFF and MICU is sleep mode: pulse |
| 13 | FR FOG SW | Detects FR FOG SW signal | With front fog light switch ON: less than 0.2 VWith front fog light switch OFF and MICU is wakeup mode: about battery voltageWith front fog light switch OFF and MICU is sleep mode: pulse |
| 14 | L TURN SW | Detects L TURN SW signal | With left turn signal switch ON: less than 0.2 VWith left turn signal switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 15 | FR WIPER MIST SW | Detects FR WIPER MIST SW signal | With front windshield wiper switch MIST: less than 0.2 VWith front windshield wiper switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 16 | FR WIPER HI SW | Detects FR WIPER HI SW signal | With front windshield wiper switch HI or LO: less than 0.2 VWith front windshield wiper switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 17 | RR WIPER SW | Detects RR WIPER SW signal | With rear wiper switch ON: less than 0.2 VWith rear wiper switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 18 * | FR WIPER INT VOL | Detects FR WIPER INT VOL signal | With vehicle in ON mode or MICU is wakeup mode: about 0-5 V (depending on intermittent dwell timer controller)With MICU is sleep mode: less than 0.2 V at all time |
| 19 | Not used | --- | --- |
| 20 | COMBI SW GND (WIP) | Ground for combination switch | Less than 0.2 V at all times |
*: Front wiper with intermittent dwell timer controller

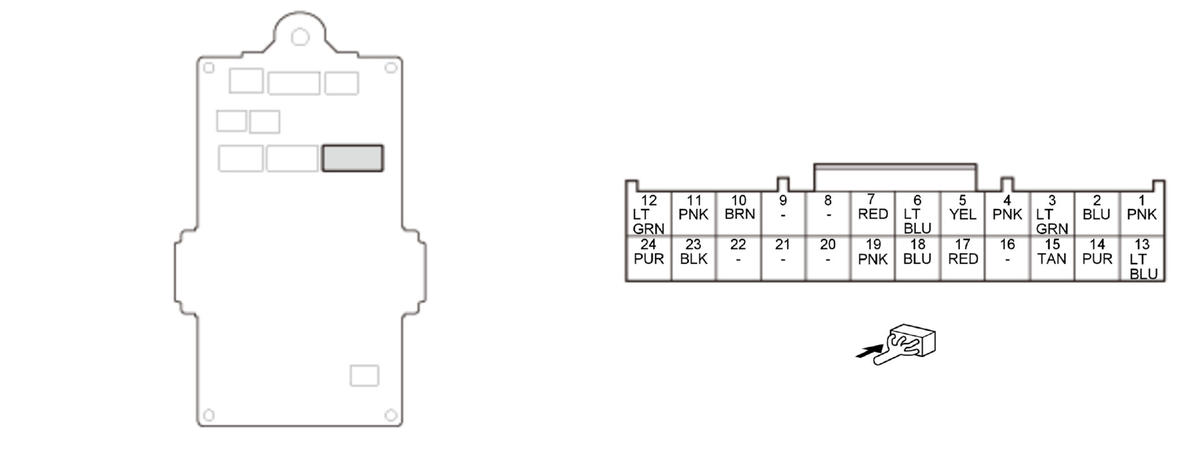

UNDER-DASH FUSE/RELAY BOX CONNECTOR D (24P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | B-CAN_H | Communication line | --- |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 2 | B-CAN_L | Communication line | --- |
| 3 | DR SILCON LOCK | Detects DR SILCON LOCK signal | With driver's door lock knob switch LOCK: less than 0.2 VWith driver's door lock knob switch UNLOCK and MICU is wakeup mode: about battery voltageWith driver's door lock knob switch UNLOCK and MICU is sleep mode: pulse |
| 4 | KEY SW | Detects KEY SW signal | With ignition key switch ON: less than 0.2 VWith ignition key switch OFF and MICU is wakeup mode: about battery voltageWith ignition key switch OFF and MICU is sleep mode: pulse |
| 5 | P/W TIMER | Outputs PW TIMER signal | Without vehicle off operation: about battery voltageWith vehicle off operation: less than 0.2 V |
| 6 *1 | FR DEICER SW | Detects FR DEICER SW signal | With heated windshield wiper area switch OFF: less than 0.2 VWith heated windshield wiper area switch ON: about battery voltage |
| 7 *3 | H/L LO R SIG | Communication line | --- |
| 8 | Not used | --- | --- |
| 9 | Not used | --- | --- |
| 10 | DR KEY CYL UNLOCK | Detects DR KEY CYL UNLOCK signal | With driver's door key cylinder switch UNLOCK: less than 0.2 V With driver's door key cylinder switch LOCK: about battery voltage |
| 11 | DR KEY CYL LOCK | Detects DR KEY CYL LOCK signal | With driver's door key cylinder switch UNLOCK: about battery voltage With driver's door key cylinder switch LOCK: less than 0.2 V |
| 12 | REMOTE SW UNLOCK | Detects REMOTE SW UNLOCK signal | With driver's door lock switch LOCK: about battery voltageWith driver's door lock switch UNLOCK: less than 0.2 V |
| 13 | K LINE | Communication line | --- |
| 14 *2 | KEY SOL | Outputs KEY SOL signal | With vehicle in ACC or ON mode and in P position: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 15 | DR SILCON UNLOCK | Detects DR SILCON UNLOCK signal | With driver's door lock knob switch UNLOCK: less than 0.2 VWith driver's door lock knob switch LOCK and MICU is wakeup mode: about battery voltage |
| 16 | Not used | --- | --- |
| 17 | REMOTE SW LOCK | Detects REMOTE SW LOCK signal | With driver's door lock switch UNLOCK: about battery voltage With driver's door lock switch LOCK: less than 0.2 V |
| 18 | S-NET | Communication line | --- |
| 19 | SMART BUZZER | Outputs SMART BUZZER signal | --- |
| 20 | Not used | --- | --- |
| 21 | Not used | --- | --- |
| 22 | Not used | --- | --- |
| 23 | GND | Ground for MICU | Less than 0.2 V at all times |
| 24 | INTR LIGHT- | Outputs INTR LIGHT- signal | About 0 V-battery voltage (depending on interior light brightness) |
*1: With heated windshield wiper area
*2: Without keyless access system
*3: With LED headlight

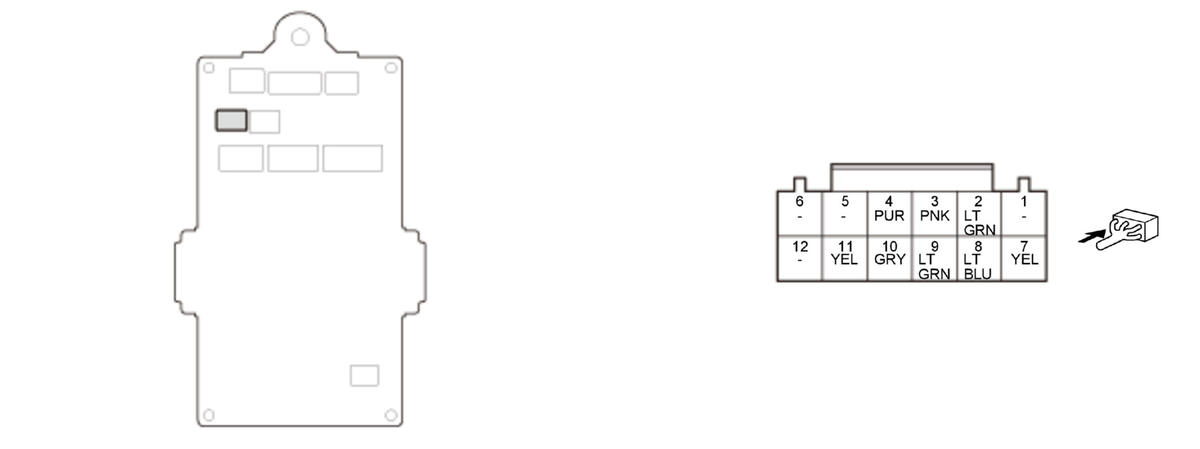

UNDER-DASH FUSE/RELAY BOX CONNECTOR E (12P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 *1 | IG1 METER | IG1 power source | With vehicle in ON mode: about battery voltage |
| 3 | IG2 A/C | IG2 power source | With vehicle in ON mode: about battery voltage |
| 4 | ACC | ACC power source | With vehicle in ACC mode: about battery voltage |
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
| 7 *2 | R TURN | Outputs R TURN signal | With right turn signal light ON: about battery voltage |
| 8 *3 | RR DEF RLY CL- | Detects RR DEF RLY CL- signal | With vehicle in ON mode and rear window defogger OFF: about battery voltageWith vehicle in ON mode and rear window defogger ON: less than 0.2 V |
| 9 | INTR LT CUT RLY OUT | Outputs INTR LT CUT RLY OUT signal | With interior lights are ON: about battery voltageWith interior lights are OFF: less than 0.2 V |
| 10 | ILLUMI+ | Power output terminal for interior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 11 *2 | L TURN | Outputs L TURN signal | With left turn signal light ON: about battery voltage |
| 12 | Not used | --- | --- |
*1: CVT
*2: With mirror turn signal light
*3: With climate control

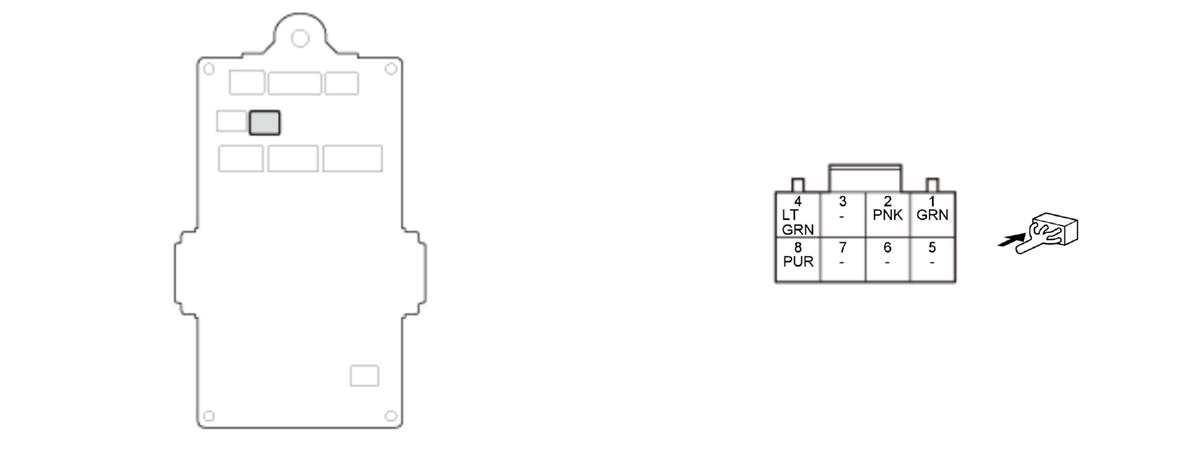

UNDER-DASH FUSE/RELAY BOX CONNECTOR F (8P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B P/W AS | Drives front passenger's power window motor | With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 2 | R SIDE DOOR LOCK | Drives driver's door lock actuator | When driver's door lock actuator in locking operation: about battery voltage |
| 3 | Not used | --- | --- |
| 4 * | IG1 OPTION | IG1 power source | With vehicle in ON mode: about battery voltage |
| 5 | Not used | --- | --- |
| 6 | Not used | --- | --- |
| 7 | Not used | --- | --- |
| 8 | R SIDE DOOR UNLOCK | Drives driver's door lock actuator | When driver's door lock actuator in unlocking operation: about battery voltage |
*: With moonroof
UNDER-DASH FUSE/RELAY CONNECTOR G (10P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B P/W DR | Drives driver's power window motor | About battery voltage at all times |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4 | Not used | --- | --- |
| 5 *1 | +B SMART | Power source for keyless access system | About battery voltage at all times |
| 6 | Not used | --- | --- |
| 7 *2 | +B SUNROOF | Power source for moonroof motor-control unit | About battery voltage at all times |
| 8 | +B BACK UP | Power source for MICU and other units | About battery voltage at all times |
| 9 | Not used | --- | --- |
| 10 | IG1 FUEL PUMP | IG1 power source | With vehicle in ON mode: about battery voltage |
*1: With keyless access system
*2: With moonroof

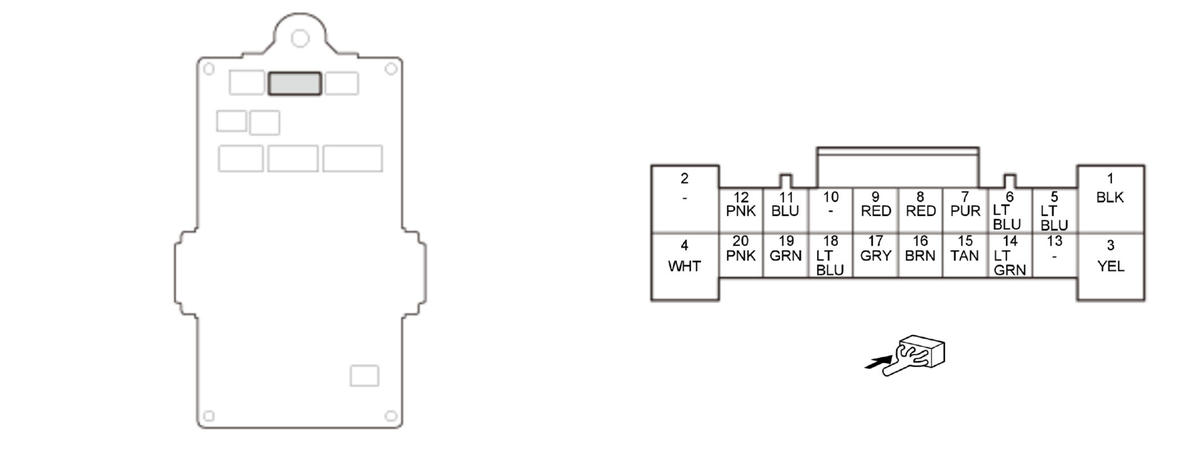

UNDER-DASH FUSE/RELAY BOX CONNECTOR H (20P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | GND | Ground for MICU | Less than 0.2 V at all times |
| 2 | Not used | --- | --- |
| 3 *1 | ACS | Detects ACS signal | With vehicle in ON mode and A/C switch ON and heater fan switch ON: less than 0.2 VIf none of above conditions are met: about battery voltage |
| 4 | ACC CIGAR | Power source for front accessory power socket | With vehicle in ACC mode: about battery voltage |
| 5 | K LINE | Communication line | --- |
| 6 | K LINE | Communication line | --- |
| 7 | HORN SW | Detects HORN SW signal | With horn switch OFF: about battery voltageWith horn switch ON: less than 0.2 V |
| 8 *1 | BLOWER REQ | Detects BLOWER REQ signal | With vehicle in ON mode: about 0V-battery voltage (depending on heater fan switch position) |
| 9 | +B BACK UP | Power source for MICU and other units | About battery voltage at all times |
| 10 | Not used | --- | --- |
| 11 | B-CAN_L | Communication line | --- |
| 12 | B-CAN_H | Communication line | --- |
| 13 | Not used | --- | --- |
| 14 | IG1 METER | IG1 power source | With vehicle in ON mode: about battery voltage |
| 15 | +B HAZARD | Power source for hazard switch | About battery voltage at all times |
| 16 | BACK LT | Detects BACK LT signal | With vehicle in ON mode and reverse position: about battery voltageWith vehicle in ON mode and out of reverse position: less than 0.2 V |
| 17 | ILLUMI+ | Power output terminal for interior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 18 | IG1 VSA/EPS | IG1 power source | With vehicle in ON mode: about battery voltage |
| 19 *2 | +B RR WIPER | Power source for rear window wiper motor | About battery voltage at all times |
| 20 | IG2 A/C | IG2 power source | With vehicle in ON mode: about battery voltage |
*1: Without climate control
*2: With keyless access system

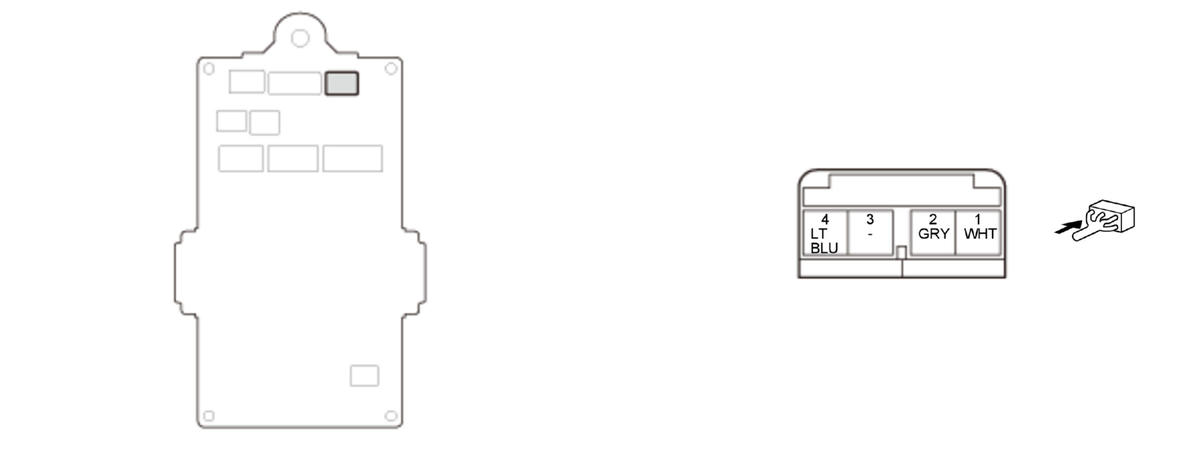

UNDER-DASH FUSE/RELAY BOX CONNECTOR J (4P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | IG1 SRS2 | IG1 power source | With vehicle in ON mode: about battery voltage |
| 2 | ILLUMI+ | Power output terminal for interior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 3 | Not used | --- | --- |
| 4 | IG1 SRS | IG1 power source | With vehicle in ON mode: about battery voltage |

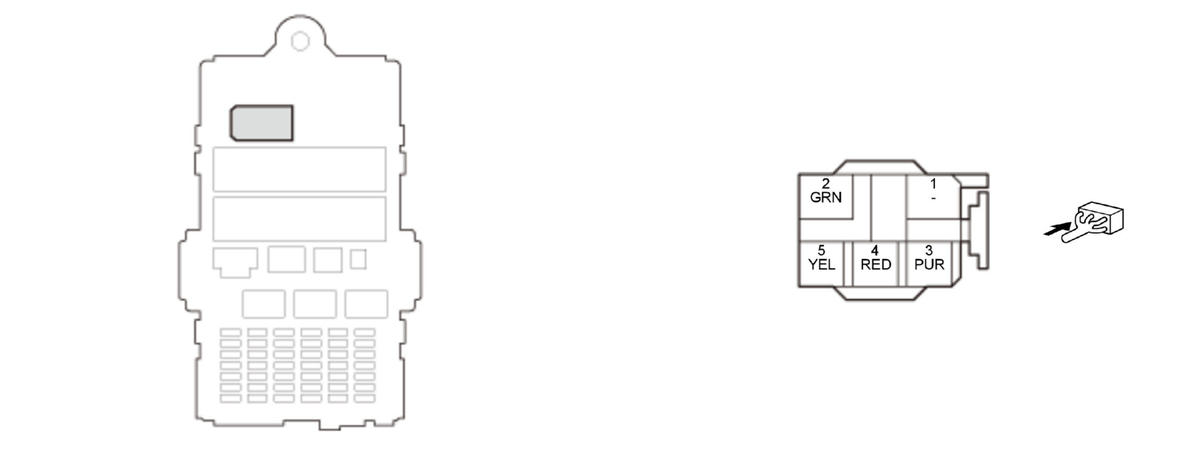

UNDER-DASH FUSE/RELAY BOX CONNECTOR M (5P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 *1 | ST CUT RLY COM | Power Output terminal for starter cut relay | With vehicle in START mode: about battery voltage |
| 2 *2 | IG1-B | IG1 power source | With vehicle in ON mode: about battery voltage |
| 3 | IG2 MAIN | IG2 power source | With vehicle in ON mode: about battery voltage |
| 4 | IG1 MAIN | IG1 power source | With vehicle in ON mode: about battery voltage |
| 5 | ACC MAIN | ACC power source | With vehicle in ACC mode: about battery voltage |
*1: Without keyless access system
*2: With Keyless access system

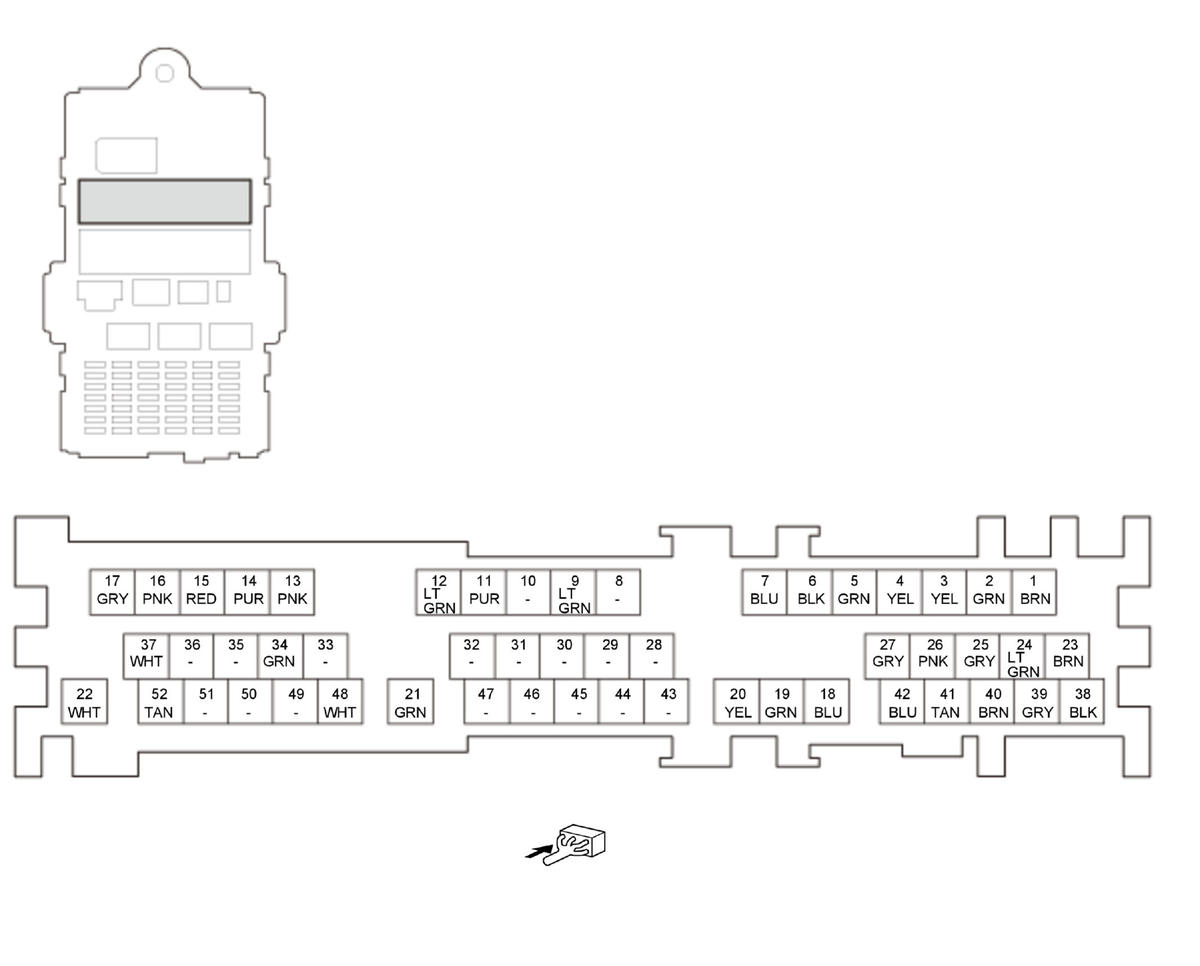

UNDER-DASH FUSE/RELAY BOX CONNECTOR N (52P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | BACK LT | Power output terminal for back-up lights | M/T: With vehicle in ON mode and reverse position: about battery voltageCVT: With vehicle in ON mode and R position: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 2 | T/GATE LOCK ACT | Drives tailgate release actuator | When tailgate release actuator in open operation: about battery voltage |
| 3 | L SIDE DOOR UNLOCK | Drives left rear door lock actuator | When left rear door lock actuator in unlocking operation: about battery voltage |
| 4 | L TURN | Outputs L TURN signal | With left turn signal light ON: about battery voltage |
| 5 | R TURN | Outputs R TURN signal | With right turn signal light ON: about battery voltage |
| 6 | GND | Ground for MICU | Less than 0.2 V at all times |
| 7 | L SIDE DOOR LOCK | Drives left rear door lock actuator | When left rear door lock actuator in locking operation: about battery voltage |
| 8 | Not used | --- | --- |
| 9 *1 | IG1 METER | IG1 power source | With vehicle in ON mode: about battery voltage |
| 10 | Not used | --- | --- |
| 11 *2 | +B MP CAMERA | Power source for multi purpose camera unit | About battery voltage at all times |
| 12 *3 | +B H/SEAT | Power source for front seat heater control unit | About battery voltage at all times |
| 13 | R SIDE DOOR LOCK | Drives right rear door lock actuator | When right rear door lock actuator in locking operation: about battery voltage |
| 14 | R SIDE DOOR UNLOCK | Drives right rear door lock actuator | When right rear door lock actuator in unlocking operation: about battery voltage |
| 15 | STOP SW | Power output terminal for brake lights | With brake pedal pressed: about battery voltageWith brake pedal released: less than 0.2 V |
| 16 *4 | DR DOOR LOCK | Drives driver's door lock actuator | When driver's door lock actuator in locking operation: about battery voltage |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 17 *4 | DR DOOR UNLOCK | Drives driver's door lock actuator | When driver's door lock actuator in unlocking operation: about battery voltage |
| 18 | +B P/W RR L | Drives left rear power window motor | With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 19 | FUEL PUMP RLY OUT | Drives fuel pump | With vehicle in ON mode: about battery voltage |
| 20 | IG1 RR WIPER | IG1 power source | With vehicle in ON mode: about battery voltage |
| 21 *6 | +B DRL | Power source for daytime running lights | About battery voltage at all times |
| 22 | +B P/W RR R | Drives right rear power window motor | With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 23 | DR DOOR SW | Detects DR DOOR SW signal | With driver's door switch ON: less than 0.2 V With driver's door switch OFF and MICU is wakeup mode: about battery voltage With driver's door switch OFF and MICU is sleep mode: pulse |
| 24 | INTR LT CUT RLY OUT | Detects INTR LT CUT RLY OUT signal | About battery voltage at all times |
| 25 | ILLUMI+ | Power output terminal for exterior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 26 | TAIL GATE SW | Detects TAIL GATE SW signal | With tailgate latch switch ON: less than 0.2 VWith tailgate latch switch OFF and MICU is wakeup mode: about battery voltageWith tailgate latch switch OFF and MICU is sleep mode: pulse |
| 27 | RR L SILCON UNLOCK | Detects RR L SILCON UNLOCK signal | With left rear door lock knob switch UNLOCK: less than 0.2 VWith left rear door lock knob switch LOCK and MICU is wakeup mode: about battery voltageWith left rear door lock knob switch LOCK and MICU is sleep mode: pulse |
| 28 | Not used | --- | --- |
| 29 | Not used | --- | --- |
| 30 | Not used | --- | --- |
| 31 | Not used | --- | --- |
| 32 | Not used | --- | --- |
| 33 | Not used | --- | --- |
| 34 | AS DOOR SW | Detects AS DOOR SW signal | With front passenger's door switch ON: less than 0.2 V With front passenger's door switch OFF and MICU is wakeup mode: about battery voltage With front passenger's door switch OFF and MICU is sleep mode: pulse |
| 35 | Not used | --- | --- |
| 36 | Not used | --- | --- |
| 37 | RR AS DOOR SW | Detects RR AS DOOR SW signal | With left rear door switch ON: less than 0.2 VWith left rear door switch OFF and MICU is wakeup mode: about battery voltageWith left rear door switch OFF and MICU is sleep mode: pulse |
| 38 | GND | Ground for MICU | Less than 0.2 V at all times |
| 39 | RR DR DOOR SW | Detects RR DR DOOR SW signal | With right rear door switch ON: less than 0.2 VWith right rear door switch OFF and MICU is wakeup mode: about battery voltageWith right rear door switch OFF and MICU is sleep mode: pulse |
| 40 | RR WIPER MTR | Outputs RR WIPER MTR signal | With vehicle in ON mode and rear wiper at auto-stop position: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 41 | CARGO LT | Outputs CARGO LT signal | With cargo light OFF: about battery voltageWith cargo light ON: less than 0.2 V |
| 42 *5 | TAIL GATE OPEN SW | Detects TAIL GATE OPEN SW signal | --- |
| 43 | Not used | --- | --- |
| 44 | Not used | --- | --- |
| 45 | Not used | --- | --- |
| 46 | Not used | --- | --- |
| 47 | Not used | --- | --- |
| 48 | IG1 SRS2 | IG1 power source | With vehicle in ON mode: about battery voltage |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 49 | Not used | --- | --- |
| 50 | Not used | --- | --- |
| 51 | Not used | --- | --- |
| 52 | RR R SILCON UNLOCK | Detects RR R SILCON UNLOCK signal | With right rear door lock knob switch UNLOCK: less than 0.2 VWith right rear door lock knob switch LOCK and MICU is wakeup mode: about battery voltageWith right rear door lock knob switch LOCK and MICU is sleep mode: pulse |
*1: CVT
*2: With forward collision warning
*3: With seat heater
*4: With selectable unlock
*5: Without keyless access system
*6: With LED headlight
UNDER-DASH FUSE/RELAY BOX CONNECTOR Q (40P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 *1 | ST CUT RLY COM | Power output terminal for starter | CVT: With vehicle in START mode and P or N position: about battery voltageM/T: With vehicle in START mode: about battery voltage |
| 2 | +B F/BOX MAIN3 | Power source for under-dash fuse/relay box | About battery voltage at all times |
| 3 | Not used | --- | --- |
| 4 | Not used | --- | --- |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 5 | IG1 FUEL PUMP | IG1 power source | With vehicle in ON mode: about battery voltage |
| 6 | L TURN | Outputs L TURN signal | With left turn signal light ON: about battery voltage |
| 7 | Not used | --- | --- |
| 8 | FI MAIN RLY OUT | Power output terminal for PGM-FI system | --- |
| 9 | IG1 ACG/HEV | IG1 power source | With vehicle in ON mode: about battery voltage |
| 10 *2 | IG1 ST CUT RLY | IG1 power source | With vehicle in ON mode: about battery voltage |
| 11 | STOP SW | Power output terminal for brake lights | With brake pedal pressed: about battery voltageWith brake pedal released: less than 0.2 V |
| 12 | Not used | --- | --- |
| 13 | +B HAZARD | Power source for IPD | About battery voltage at all times |
| 14 *1 | STS | Power output terminal for starter cut relay | CVT: With vehicle in START mode and P or N position: about battery voltageM/T: With vehicle in START mode: about battery voltage |
| 15 | +B BACK UP | Power source for MICU and other units | About battery voltage at all times |
| 16 *4 | DRL RLY CL- | Outputs DRL RLY CL- signal | With daytime running lights are OFF: about battery voltageWith daytime running lights are ON: less than 0.2 V |
| 17 | L H/L HI | Outputs L H/L HI signal | With combination light switch OFF: less than 0.2 VWith combination light switch HI: about battery voltage |
| 18 | IG1 MISS SOL | IG1 power source | With vehicle in ON mode: about battery voltage |
| 19 | HORN RLY OUT | Power output terminal for horn | With horn switch OFF: less than 0.2 VWith horn switch ON: about battery voltage |
| 20 | +B HORN | Power source for horns | About battery voltage at all times |
| 21 | S-NET | Communication line | With vehicle in ON mode and R position: less than 0.2 VIf none of above conditions are met: about battery voltage |
| 22 | ATP-P | Detects ATP-P signal | With out of P position and MICU is wakeup mode: about battery voltageWith P position: less than 0.2VWith out of P position and MICU is sleep mode: pulse |
| 23 | ATP-R | Detects ATP-R signal | With vehicle in ON mode and R position: less than 0.2Vif none of above conditions are met: about battery voltage |
| 24 | WIPER HI/LO RLY CL- | Outputs WIPER HI/LO RLY CL- signal | With vehicle in ON mode and windshield wiper LO speed: less than 0.2VWith vehicle in ON mode and windshield wiper HI speed: about battery voltage |
| 25 | Not used | --- | --- |
| 26 | Not used | --- | --- |
| 27 | Not used | --- | --- |
| 28 | SMALL LT RLY CL- | Power output terminal for taillight relay | With parking lights are OFF: less than 0.2VWith parking lights are ON: about battery voltage |
| 29 | FR WIPER INT RLY CL- | Outputs FR WIPER INT RLY CL- signal | With vehicle in ON mode and windshield wiper operation: less than 0.2 VWith vehicle in ON mode and windshield wiper stopping: about battery voltage |
| 30 | Not used | --- | --- |
| 31 *2 | IG1 RLY COIL | IG1 power source | With vehicle in ON mode: about battery voltage |
| 32 | FUEL PUMP RLY CL- | Detects FUEL PUMP RLY CL- signal | With hood switch ON : less than 0.2 VWith hood switch OFF and MICU is wakeup mode: about battery voltageWith hood switch OFF and MICU is sleep mode: pulse |
| 33 *3 | BACK LT | Power output terminal for back-up lights | M/T: With vehicle in ON mode and reverse position: about battery voltageCVT: With vehicle in ON mode and R position: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 34 | ILLUMI+ | Power output terminal for exterior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 35 | HOOD SW | Detects HOOD SW signal | With security hood switch ON : less than 0.2 VWith security hood switch OFF and MICU is wakeup mode: about battery voltageWith security hood switch OFF and MICU is sleep mode: pulse |
| 36 | IG2 A/C | IG2 power source | With vehicle in ON mode: about battery voltage |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 37 | FR FOG LT RLY CL- | Outputs FR FOG LT RLY CL- | With front fog light switch ON: less than 0.2 VWith front fog light switch OFF: about battery voltage |
| 38 | H/L LO RLY CL- | Outputs H/L LO RLY CL- signal | With headlight (low) is ON: less than 0.2 VWith headlight (low) is OFF: about battery voltage |
| 39 | FR WIPER AS | Detects FR WIPER AS signal | With windshield wiper at out of auto-stop position and MICU is wakeup mode: pulseIf none of above conditions are met: less than 0.2 V |
| 40 | RR DEF RLY CL- | Detects RR DEF RLY CL- signal | With vehicle in ON mode and rear window defogger switch OFF: about battery voltageWith vehicle in ON mode and rear window defogger switch ON: less than 0.2 V |
*1: Without keyless access system
*2: With keyless access system
*3: M/T
*4: With LED headlight
UNDER-DASH FUSE/RELAY BOX CONNECTOR R (2P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B F/BOX MAIN | Power source for under-dash fuse/relay box | About battery voltage at all times |
| 2 | +B F/BOX MAIN2 | Power source for under-dash fuse/relay box | About battery voltage at all times |
UNDER-DASH FUSE/RELAY BOX CONNECTOR T (18P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | ILLUMI+ | Power source for interior lights | With combination light switch OFF: less than 0.2 VWith combination light switch SMALL: about battery voltage |
| 2 | R H/L HI | Outputs R H/L HI signal | With combination light switch OFF: less than 0.2 VWith combination light switch HI: about battery voltage |
| 3 | Not used | --- | --- |
| 4 | FR WASHER MTR | Drives windshield/rear window washer motor | With vehicle in ON mode and front washer switch ON: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 5 | K LINE | Communication line | --- |
| 6 | R TURN | Outputs R TURN signal | With right turn signal light ON: about battery voltage |
| 7 | Not used | --- | --- |
| 8 | RR WASHER MTR | Drives windshield/rear window washer motor | With vehicle in ON mode and rear washer switch ON: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 9 | IG1 VSA/EPS | IG1 power source | With vehicle in ON mode: about battery voltage |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12 | Not used | --- | --- |
| 13 | SCTY HORN RLY CL- | Power output terminal for security horn relay | With security horn ON: less than 0.2 VWith security horn OFF: about battery voltage |
| 14 | Not used | --- | --- |
| 15 | Not used | --- | --- |
| 16 | Not used | --- | --- |
| 17 | Not used | --- | --- |
| 18 | Not used | --- | --- |
