Console Relay Holder B

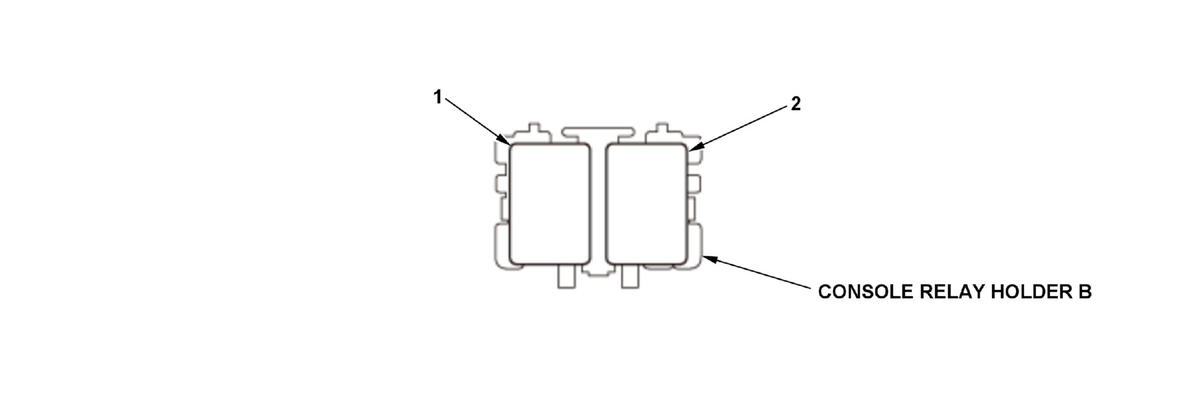

Fig 1: Console Relay Holder B Component Locations

Courtesy of HONDA, U.S.A., INC.

Console Relay Holder B Legend

Socket	Ref	Terminal	Connects to	Notes
AWD relay	1	4		*1
Front seat heater relay	2	4		*2

*1: AWD
*2: With seat heater
