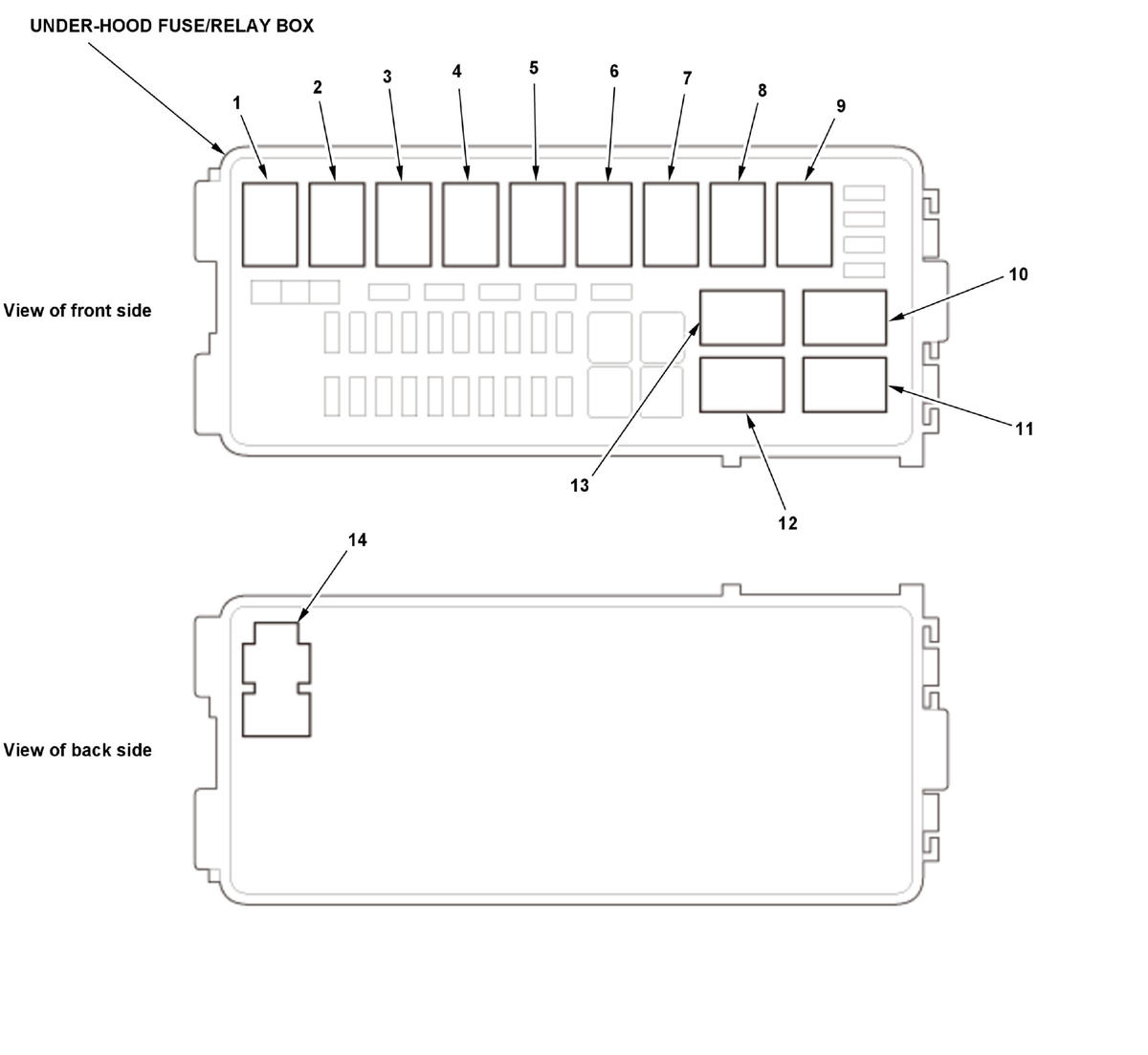

Under-Hood Fuse/Relay Box
Courtesy of HONDA, U.S.A., INC. Under-Hood Fuse/Relay Box Legend
| Socket |
Ref |
Terminal |
Connects to |
Notes |
| A/C condenser fan relay |
3 |
4 |
|
|
| Not used |
6 |
4 |
|
|
| Electronic throttle control system (ETCS) control relay |
9 |
4 |
|
|
| Fan control relay |
11 |
5 |
|
|
| Ignition coil relay |
12 |
4 |
|
|
| Not used |
4 |
4 |
|
|
| Lighting relay |
7 |
4 |
|
|
| Not used |
1 |
4 |
|
|
| PGM-FI main relay 1 |
13 |
4 |
|
|
| Not used |
10 |
4 |
|
|
| Radiator fan relay |
5 |
4 |
|
|
| Starter cut relay |
2 |
4 |
|
*1 |
| Starter cut relay 1 |
8 |
4 |
|
*2 |
| Starter cut relay 2 |
2 |
4 |
|
*2 |
| Under-hood fuse/relay box 2P connector |
14 |
2 |
Left engine compartment wire harness |
|
| *1: Without keyless access system |
| *2: With keyless access system |
