Auxiliary Under-Dash Relay Holder A (With Keyless Access System)

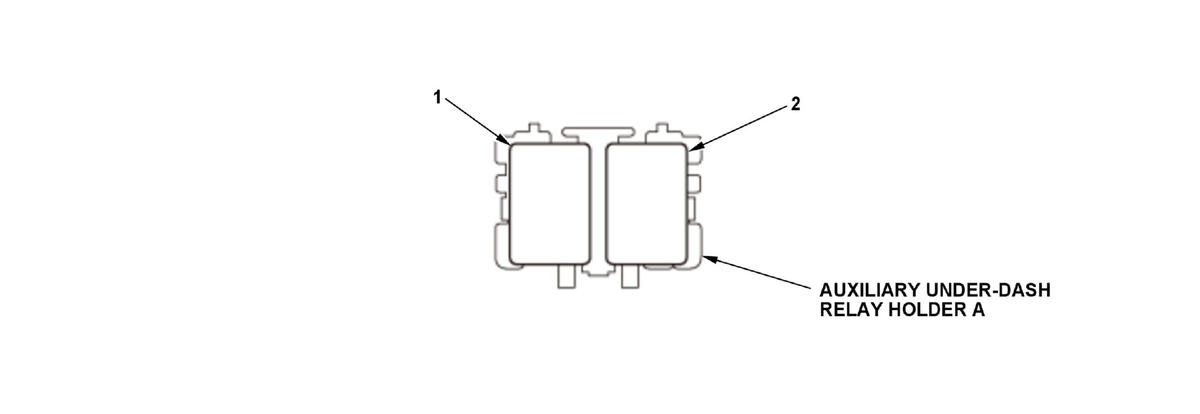

Fig 1: Auxiliary Under-Dash Relay Holder A (With Keyless Access System) Componet Locations

Courtesy of HONDA, U.S.A., INC.

Auxiliary Under-Dash Relay Holder A (With Keyless Access System) Legend

Socket	Ref	Terminal	Connects to	Notes
ACC relay	1	4
Rear wiper motor relay	2	4
