EPS Control Unit Connector for Inputs and Outputs (2016 2017 2018)
EPS Control Unit Connector for inputs and Outputs
| Connector Index |
| EPS Control Unit Connector A (5P) |
| EPS Control Unit Connector B (6P) |
| EPS Control Unit Connector C (2P) |

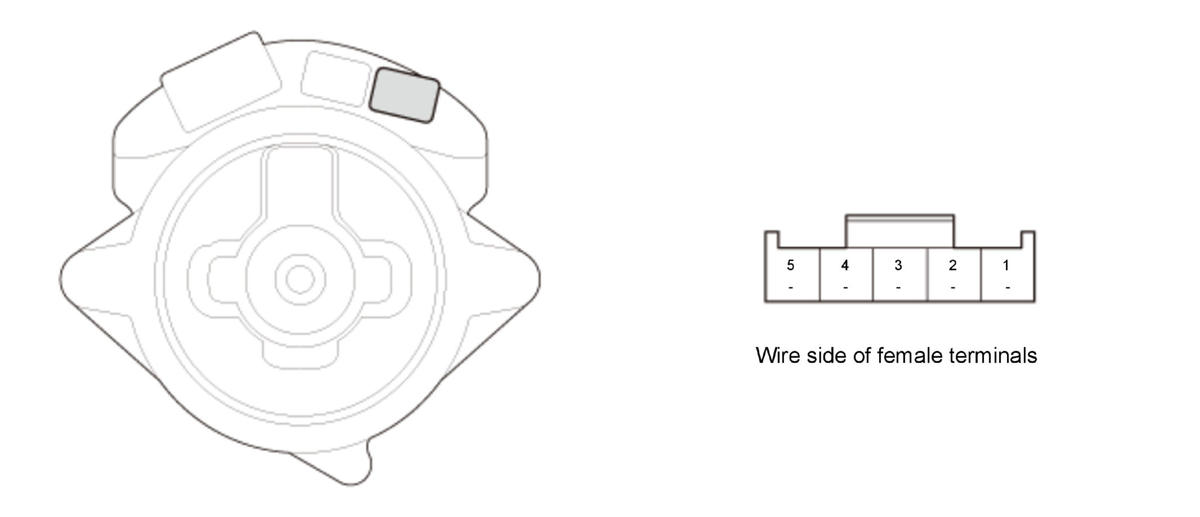

EPS Control Unit Inputs and Outputs for Connector A (5P)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
TSM |
Detect the torque sensor signal |
| 2 |
TSE |
Ground for the torque sensor |
| 3 |
TSS |
Detect the torque sensor signal |
| 4 |
TSV |
Power source for the torque sensor |
| 5 |
Not used |
--- |

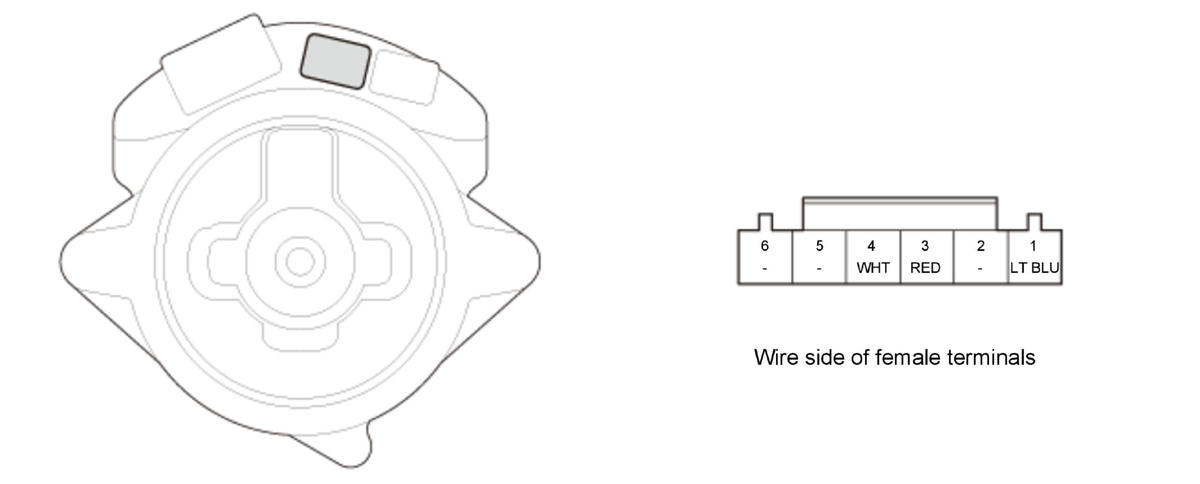

EPS Control Unit Inputs and Outputs for Connector B (6P)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
IG1 VSA/EPS |
Power source for activating the system |
| Terminal number |
Terminal sign |
Description |
| 2 |
Not used |
--- |
| 3 |
F-CAN_L |
F-CAN communication circuit |
| 4 |
F-CAN_H |
F-CAN communication circuit |
| 5 |
Not used |
--- |
| 6 |
Not used |
--- |

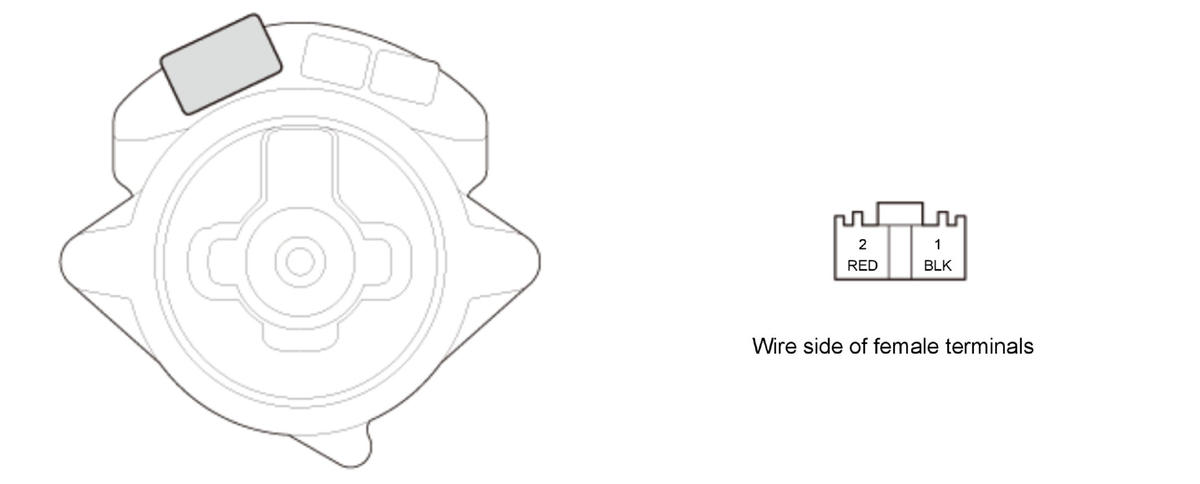

EPS Control Unit Inputs and Outputs for Connector C (2P)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
GND |
Ground for the EPS control unit |
| 2 |
+B EPS |
Power source for the actuator EPS motor |
