CVT System Component Location Index (CVT)

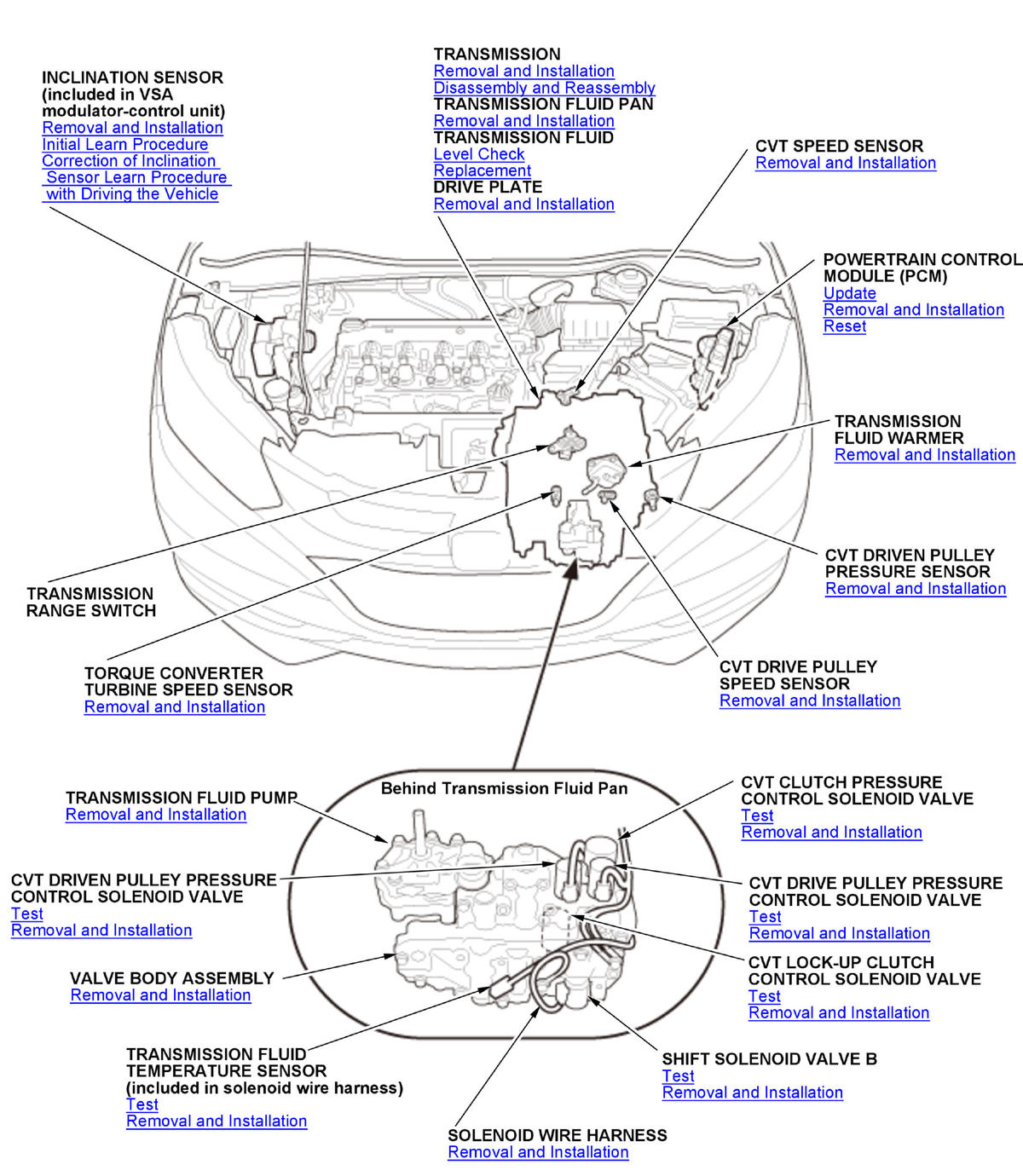

Fig 1: CVT System Component Locations (CVT) (1 Of 2)
Courtesy of HONDA, U.S.A., INC.

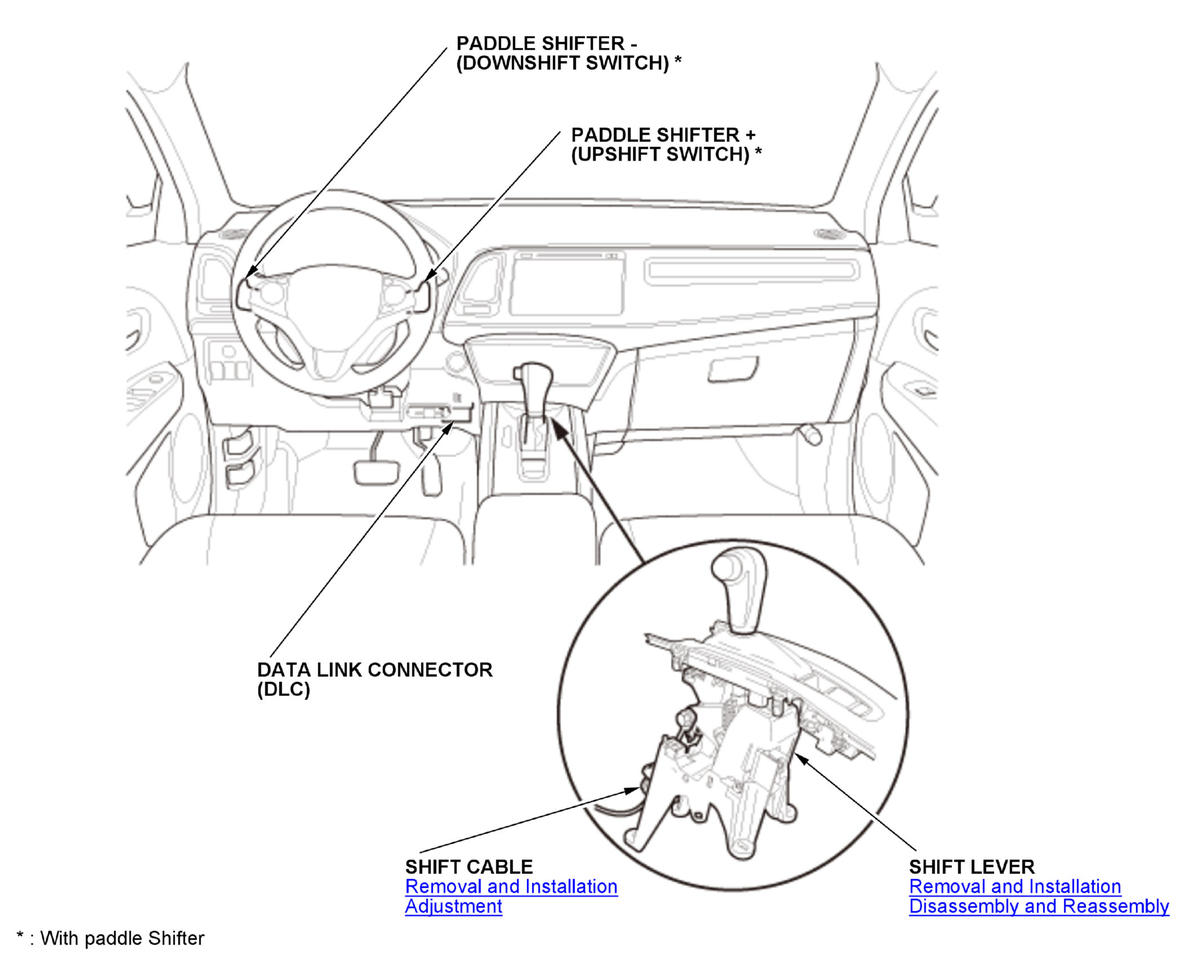

Fig 2: CVT System Component Locations (CVT) (2 Of 2)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
